Knock Sensor: Diagrams




Component Connector End Views

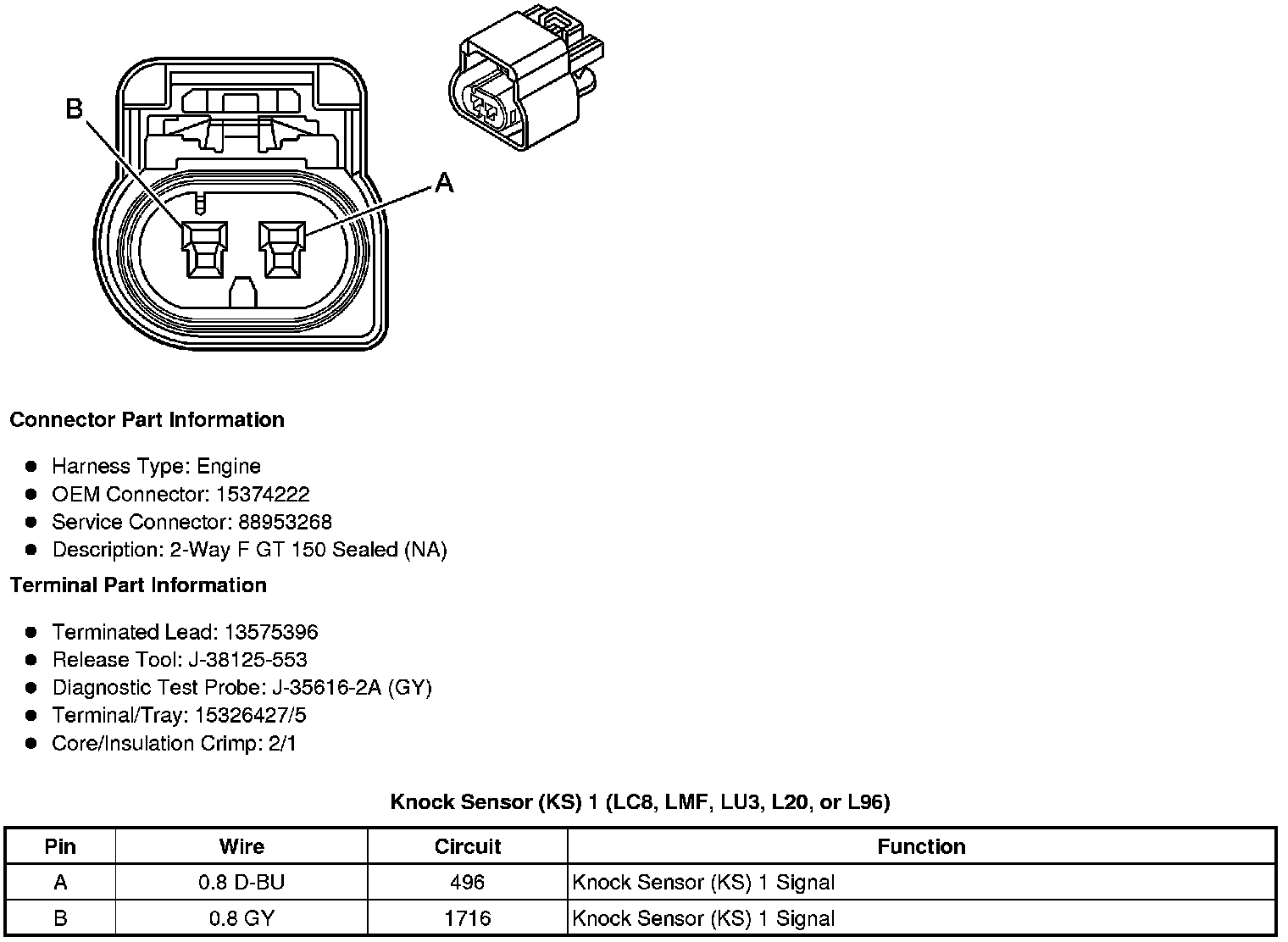

Knock Sensor (KS) 1 (LC8, LMF, LU3, L20, or L96)





Knock Sensor (KS) 2 (LC8, LMF, LU3, L20, or L96)
