Oxygen Sensor: Diagrams




Component Connector End Views

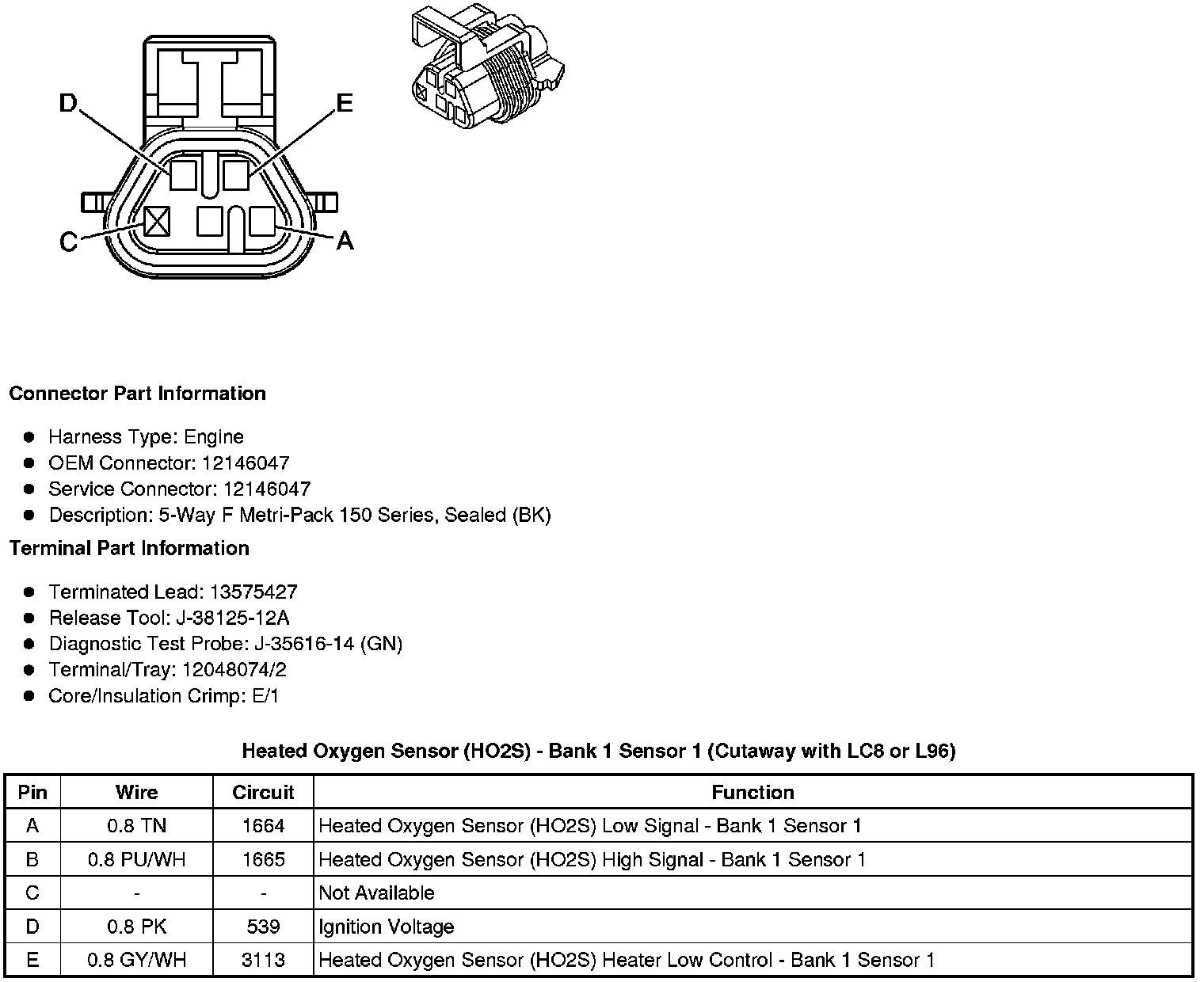

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (Cutaway with LC8 or L96)

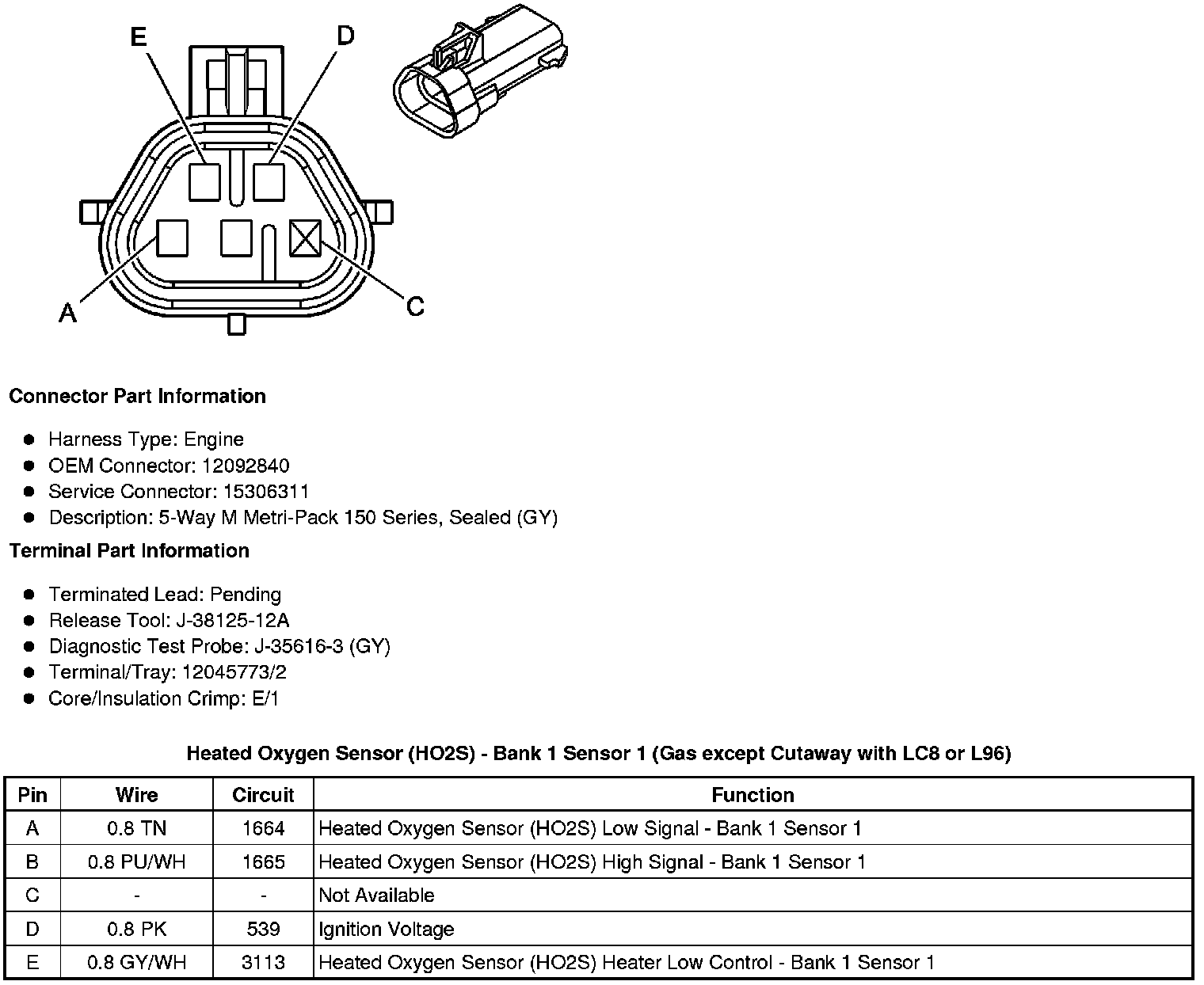

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (Gas except Cutaway with LC8 or L96)





Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2





Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (Cutaway with LC8 or L96)





Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (Gas except Cutaway with LC8 or L96)

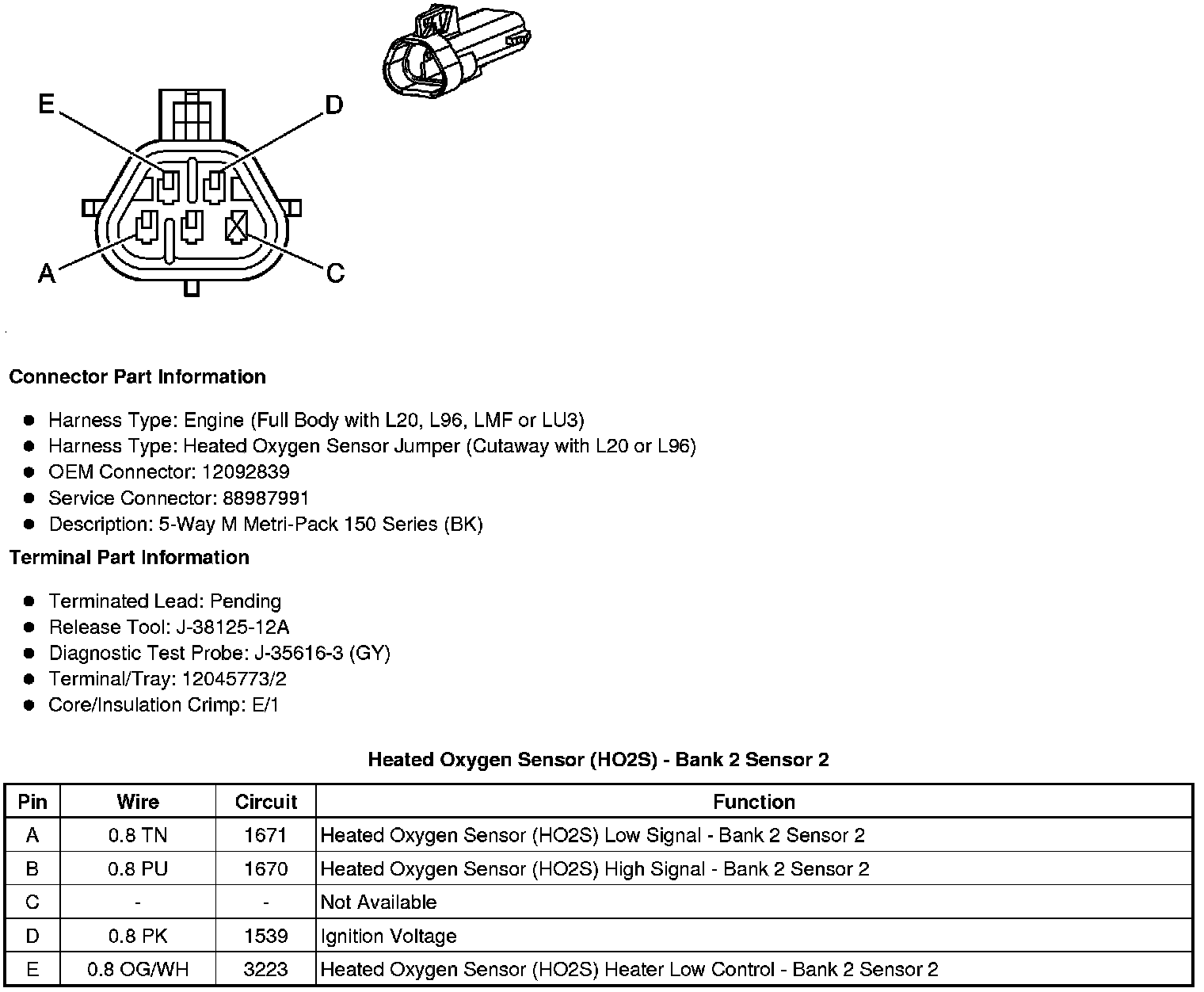

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
