Ambient Temperature Sensor / Switch HVAC

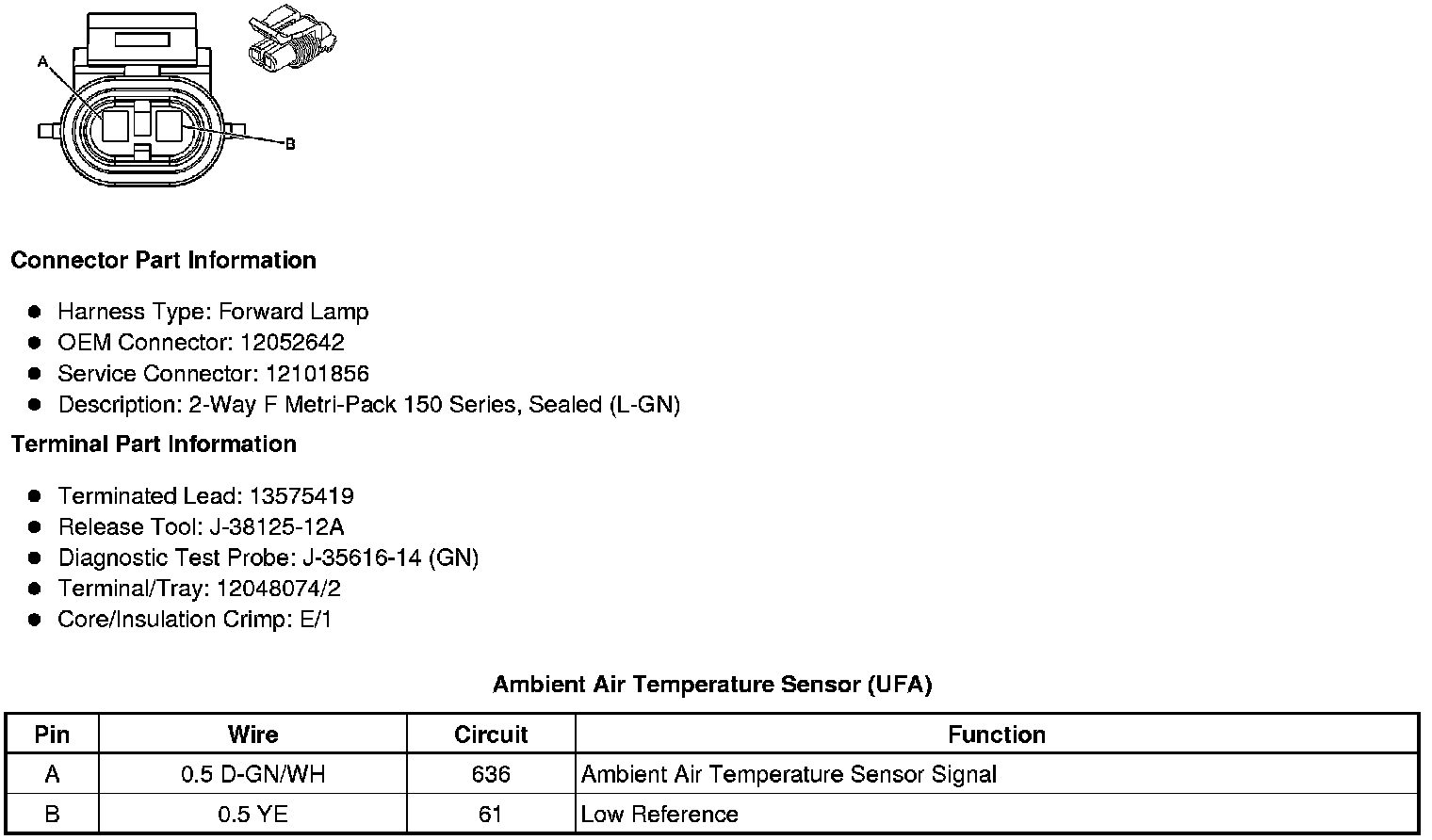

Component Connector End Views

Ambient Air Temperature Sensor (UFA)
