Driver Seat Components

Passenger Compartment/Roof Component Views

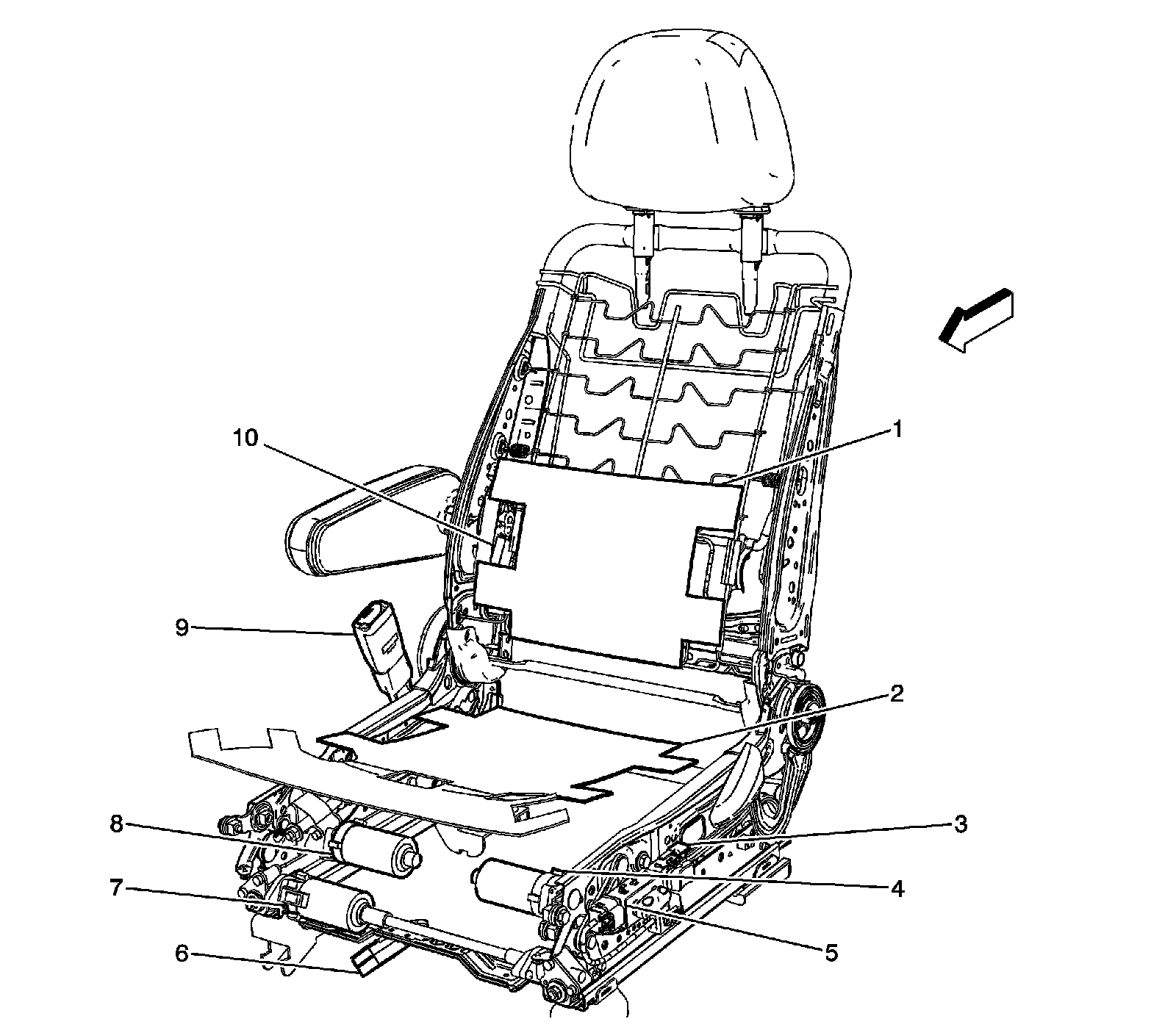

Driver Seat Components




1 - Heated Seat Element - Driver Back (KA1)
2 - Heated Seat Element - Driver Cushion (KA1)
3 - Lumbar Adjuster Switch - Driver (AJ6)
4 - Seat Front Vertical Motor - Driver (AJ6)
5 - Seat Adjuster Switch - Driver (AJ6)
6 - Heated Seat Control Module Driver (KA1)
7 - Seat Horizontal Motor - Driver (AJ6) (KA1)
8 - Seat Rear Vertical Motor - Driver (AJ6)
9 - Seat Belt Switch - Left
10 - Seat Lumbar Motor - Driver (AJ6)
