Passenger Seat Components

Passenger Compartment/Roof Component Views

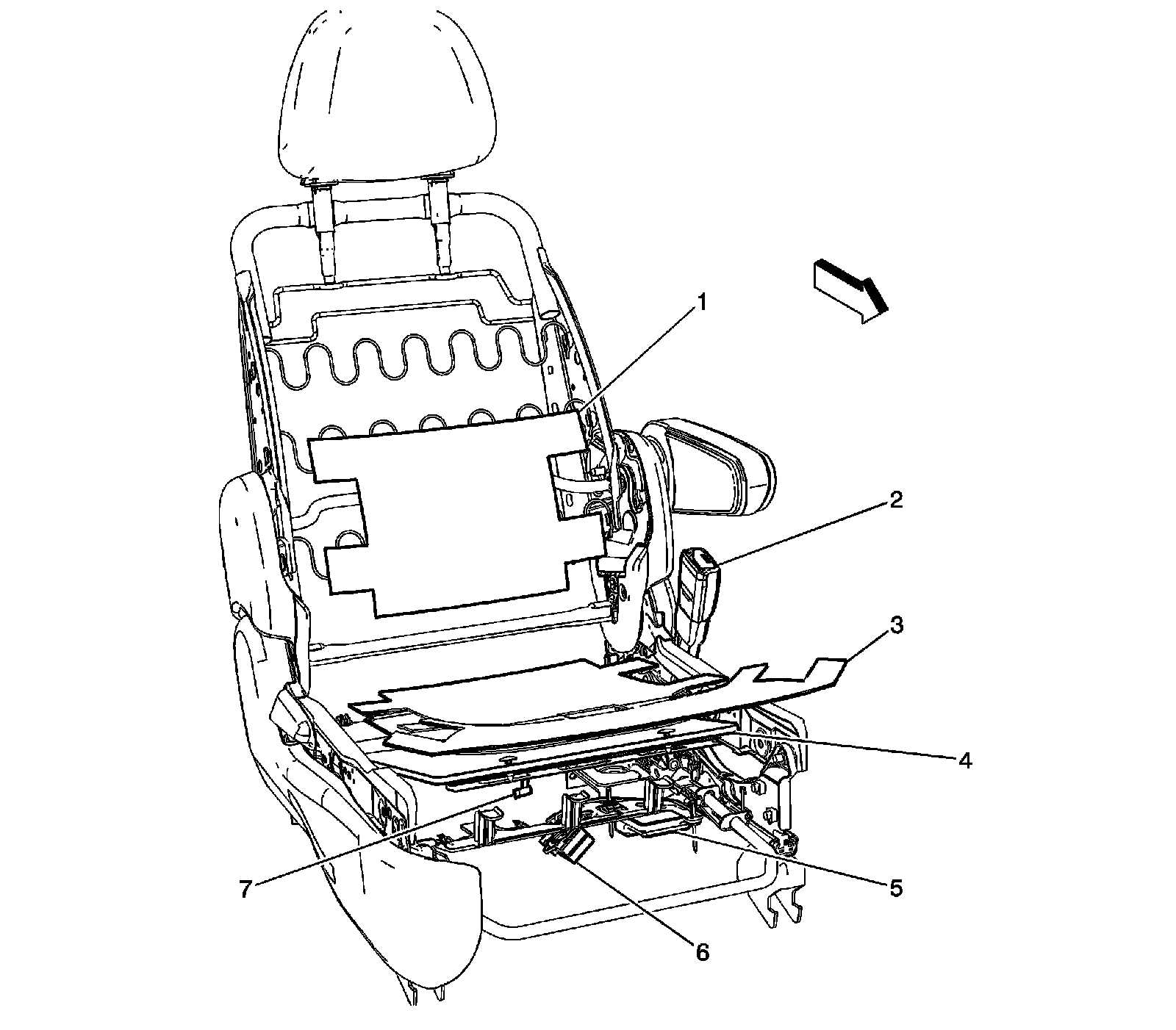

Passenger Seat Components




1 - Heated Seat Element - Passenger Back (KA1)
2 - Seat Belt Switch - Right
3 - Heated Seat Element - Passenger Cushion (KA1)
4 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor Pad
5 - Inflatable Restraint Front Passenger Presence System (PPS) Module
6 - Heated Seat Control Module Passenger (KA1)
7 - Inflatable Restraint Front Passenger Presence System (PPS) Sensor
