Amplifier, Sound System




Component Connector End Views

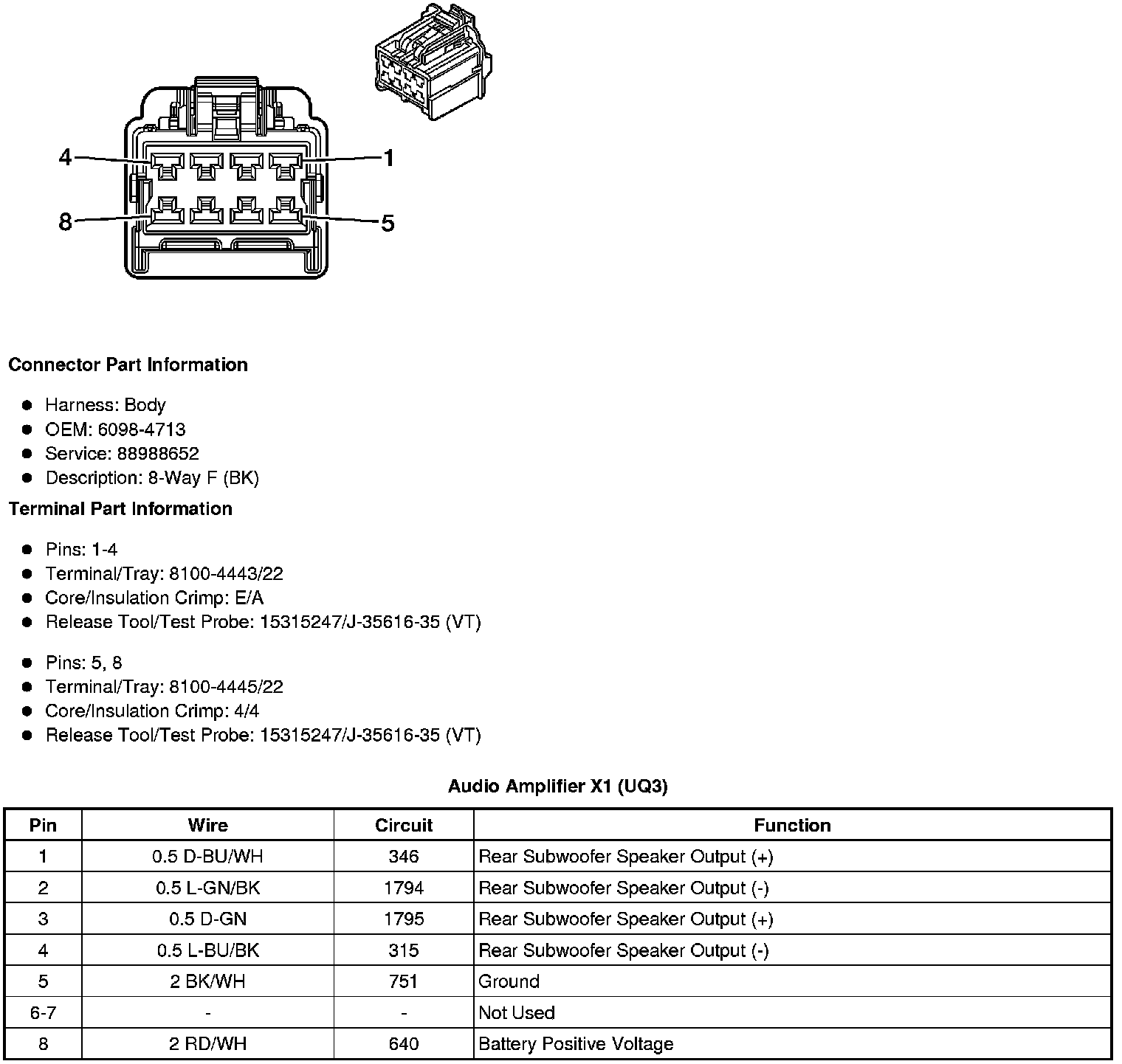

Audio Amplifier X1 (UQ3)

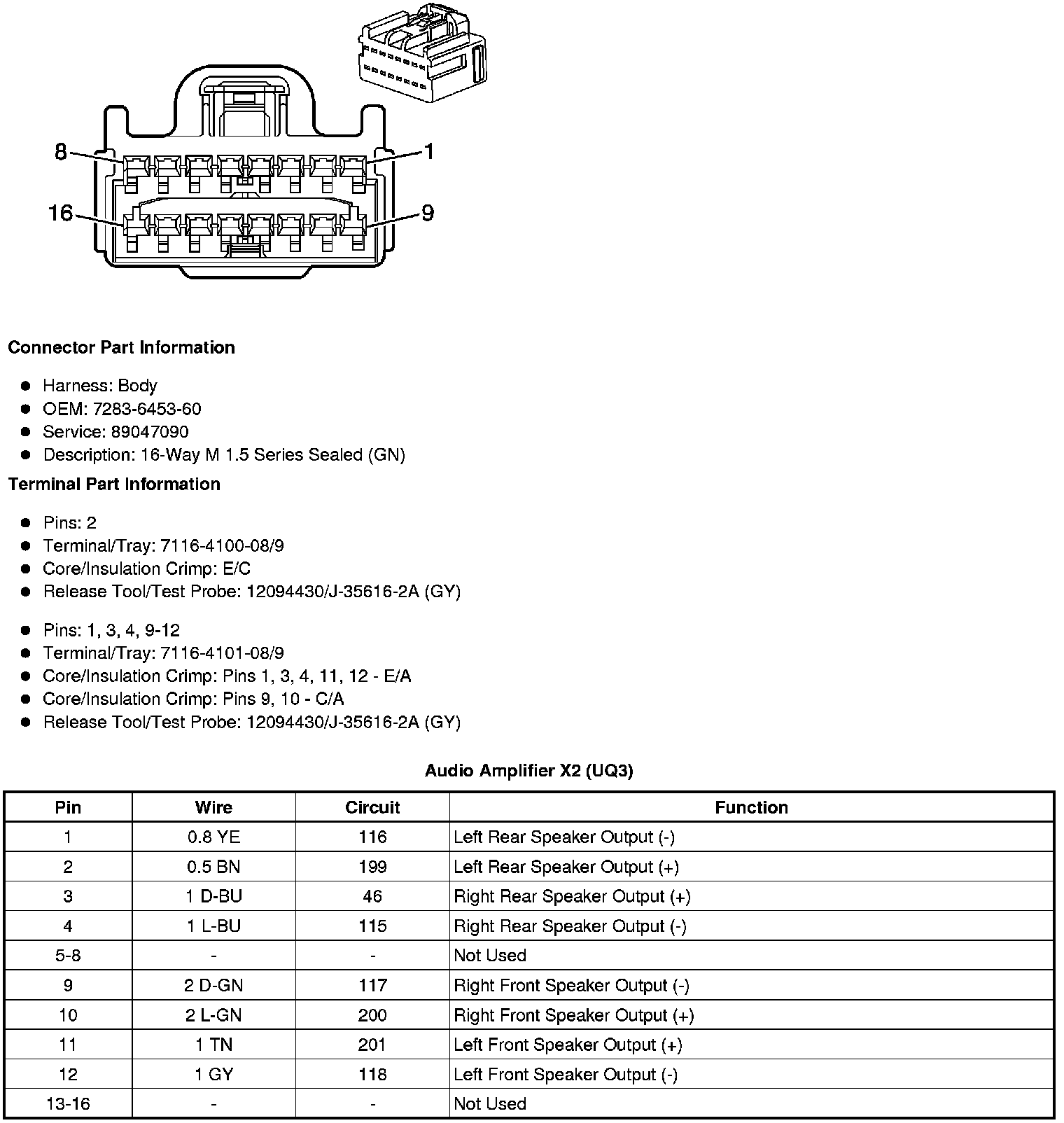

Audio Amplifier X2 (UQ3)

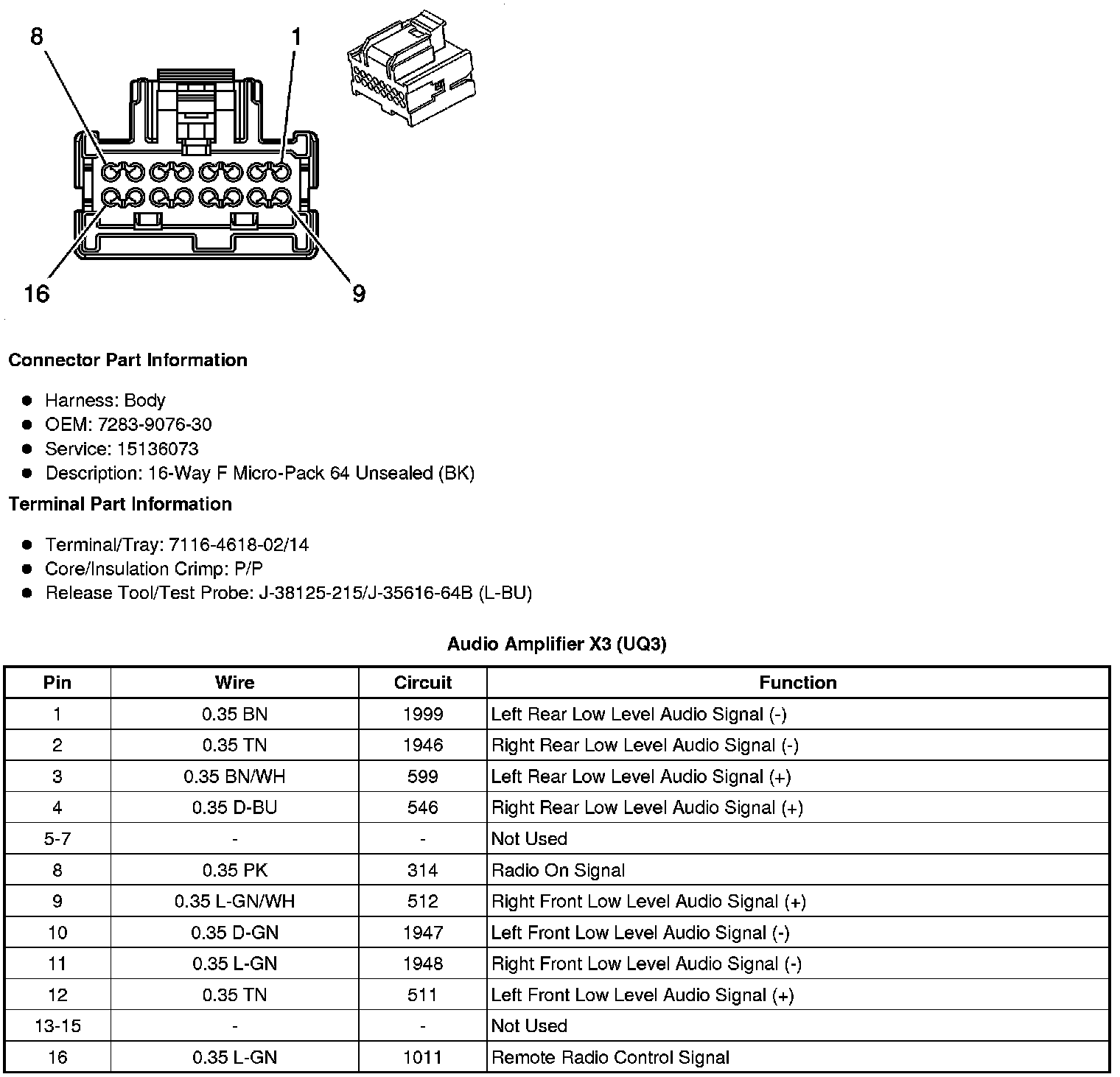

Audio Amplifier X3 (UQ3)
