Control Assembly, HVAC




Component Connector End Views

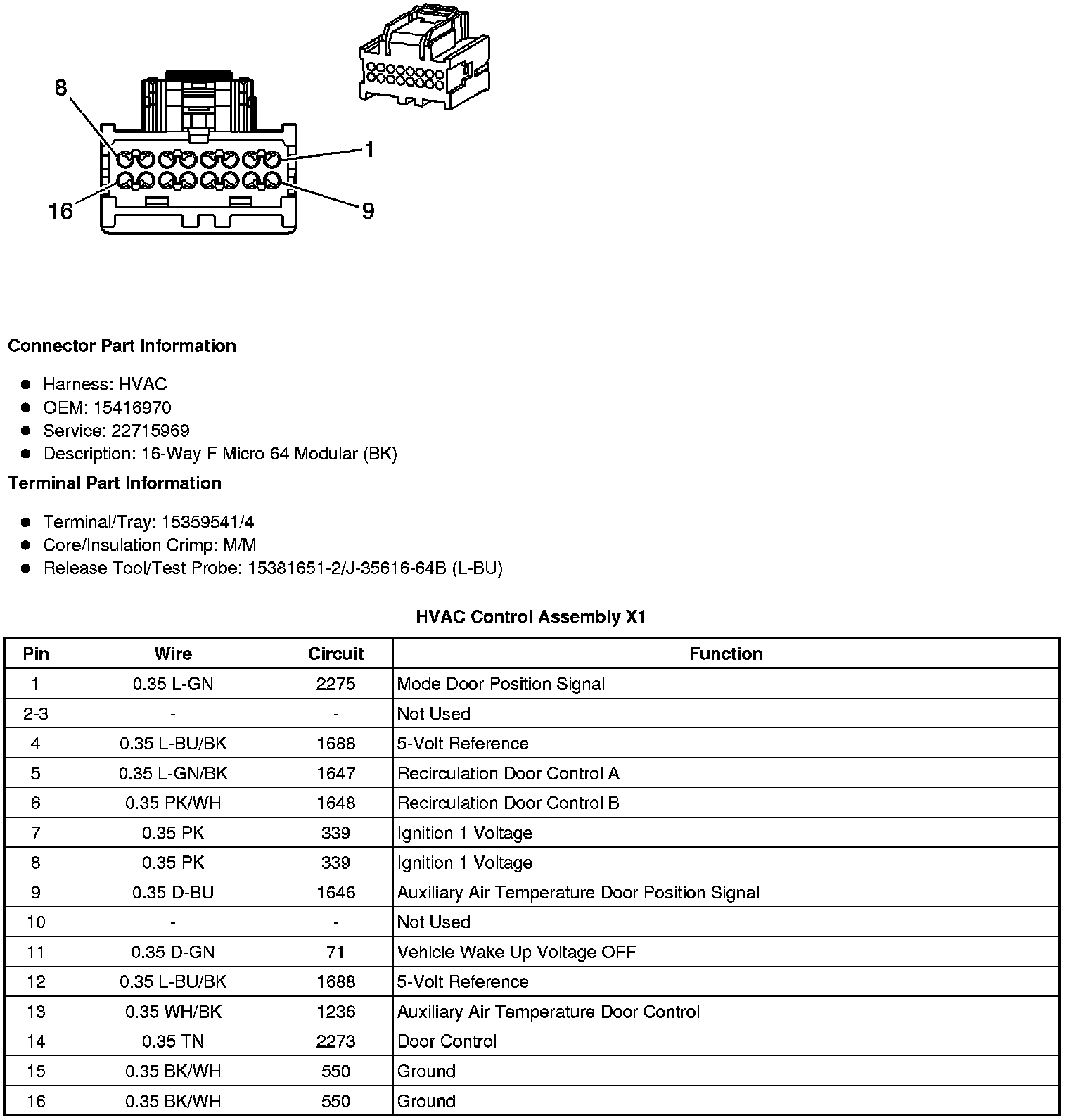

HVAC Control Assembly X1

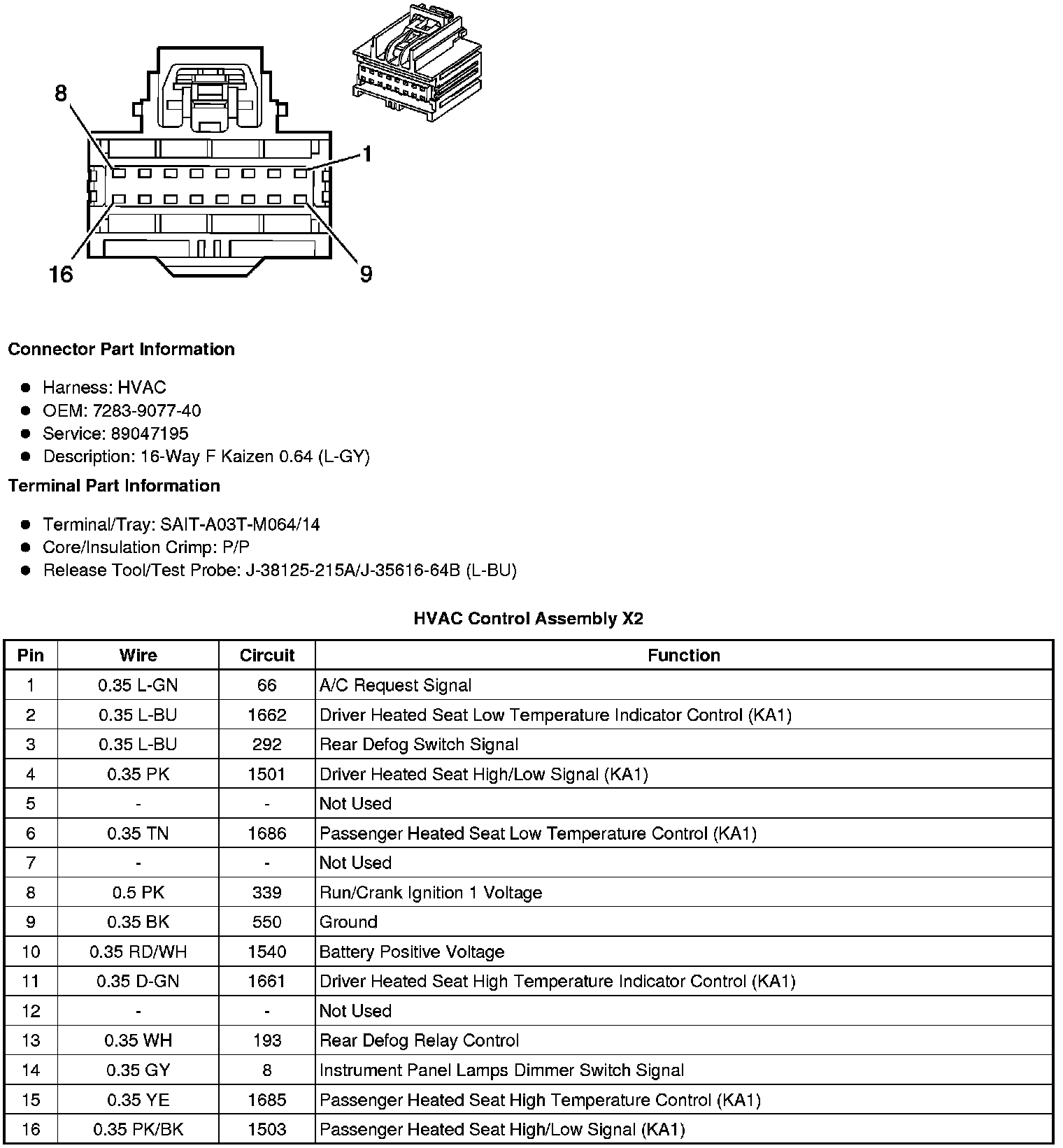

HVAC Control Assembly X2

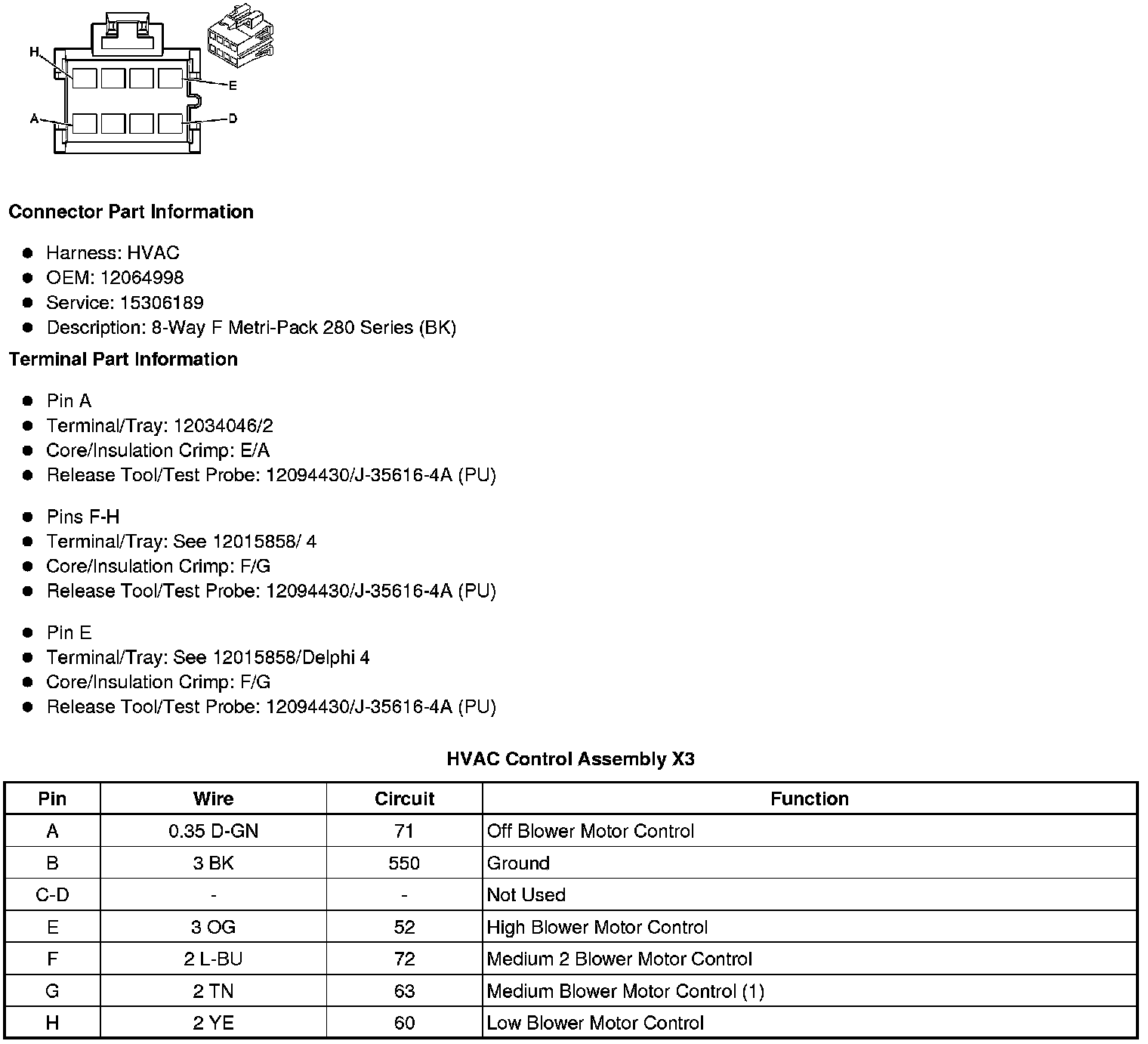

HVAC Control Assembly X3
