Dome Lamp
Component Connector End Views

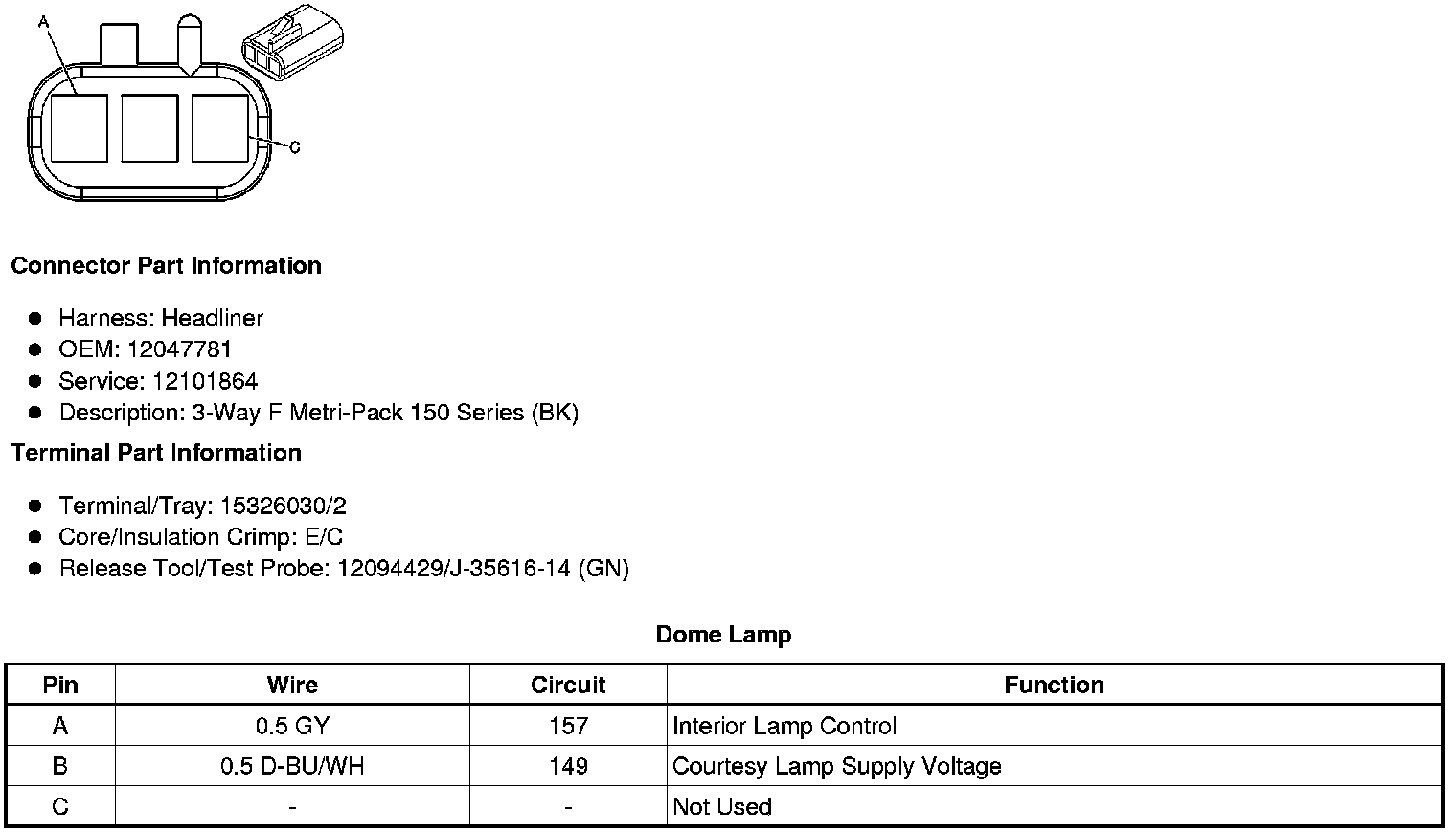

Dome Lamp

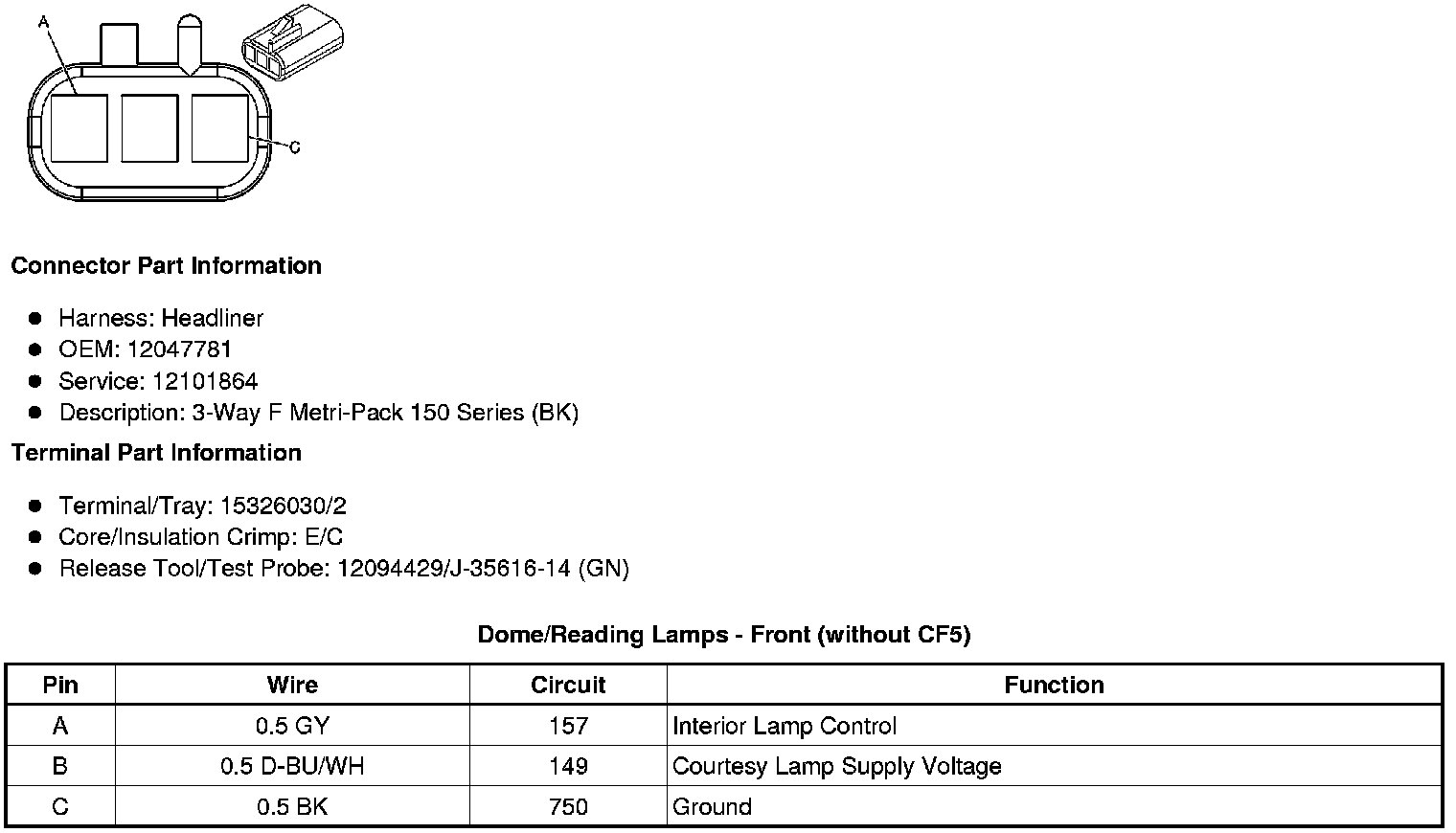

Dome/Reading Lamps - Front (without CF5)

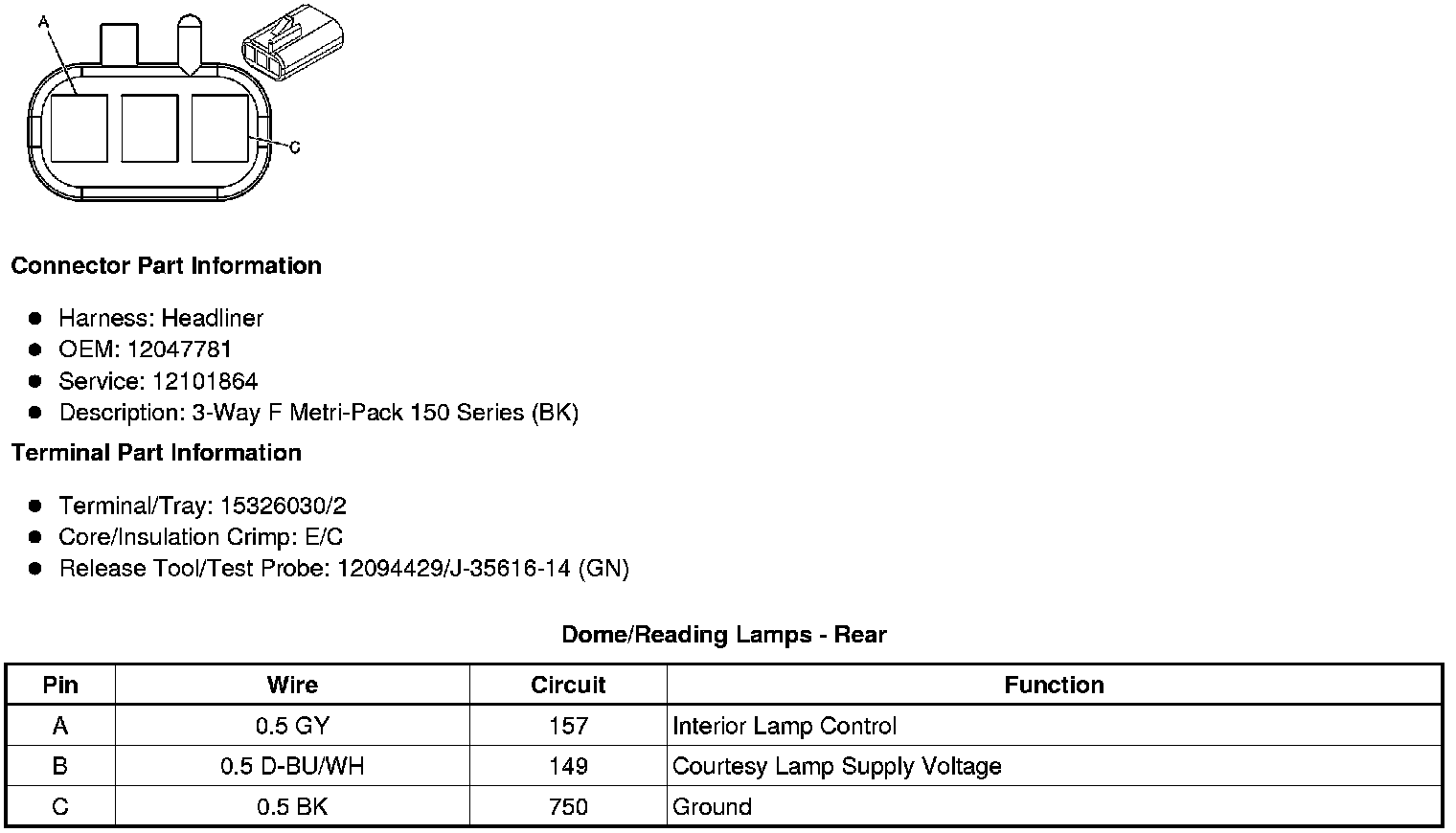

Dome/Reading Lamps - Rear
