Fluid Pressure Sensor/Switch, A/T

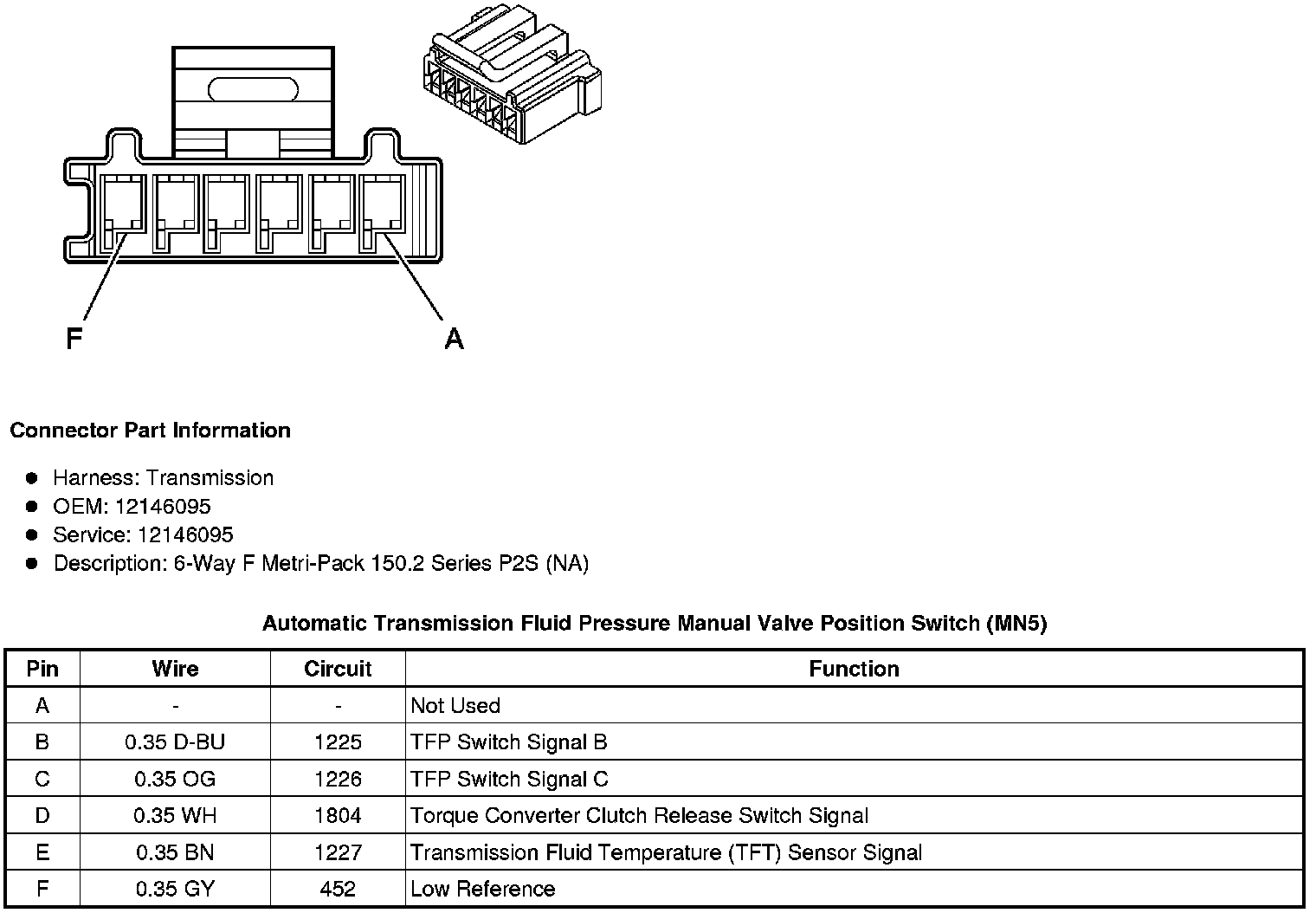

Component Connector End Views

Automatic Transmission Fluid Pressure Manual Valve Position Switch (MN5)
