System Diagram




Component Connector End Views

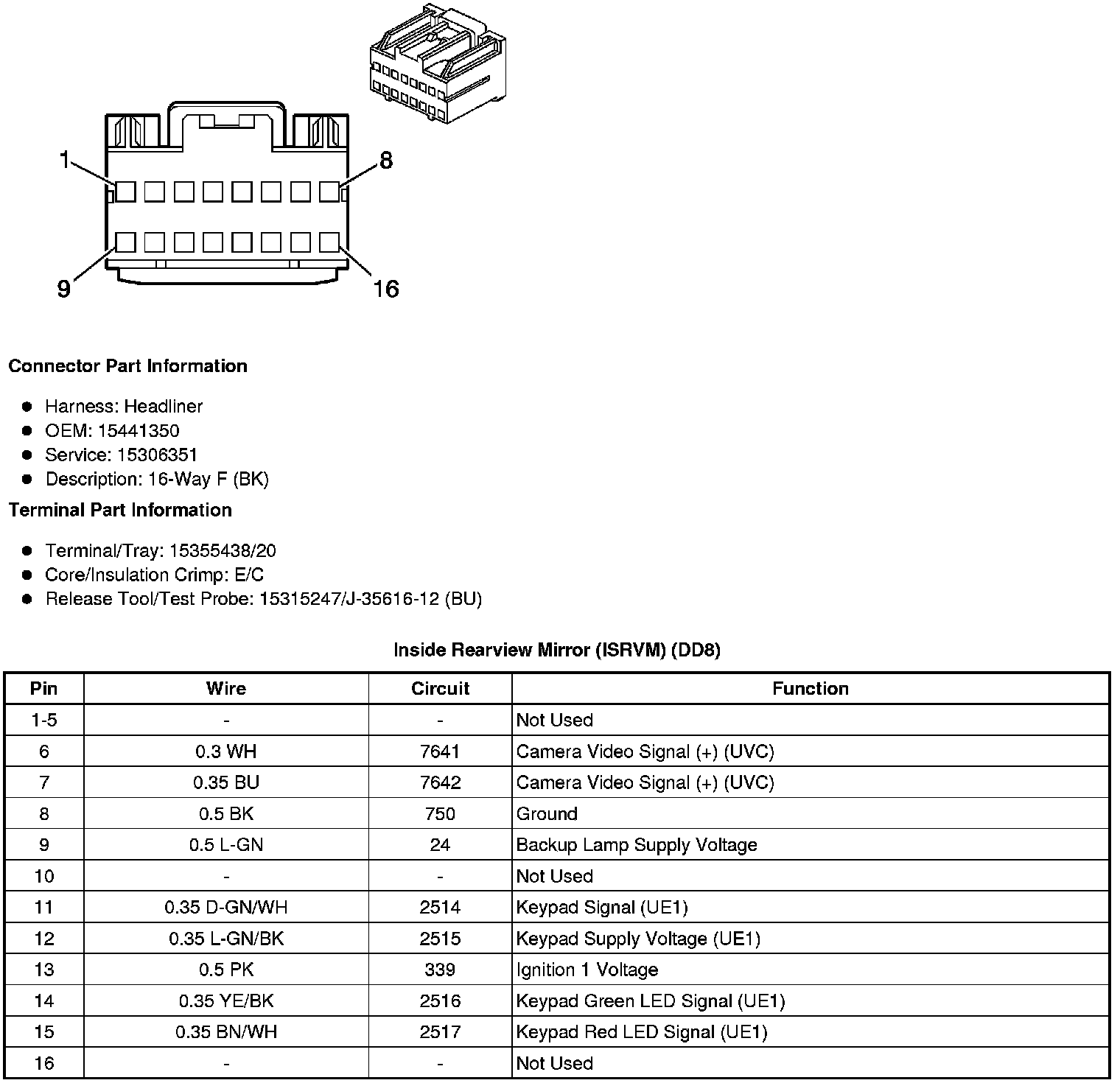

Inside Rearview Mirror (ISRVM) (DD8)

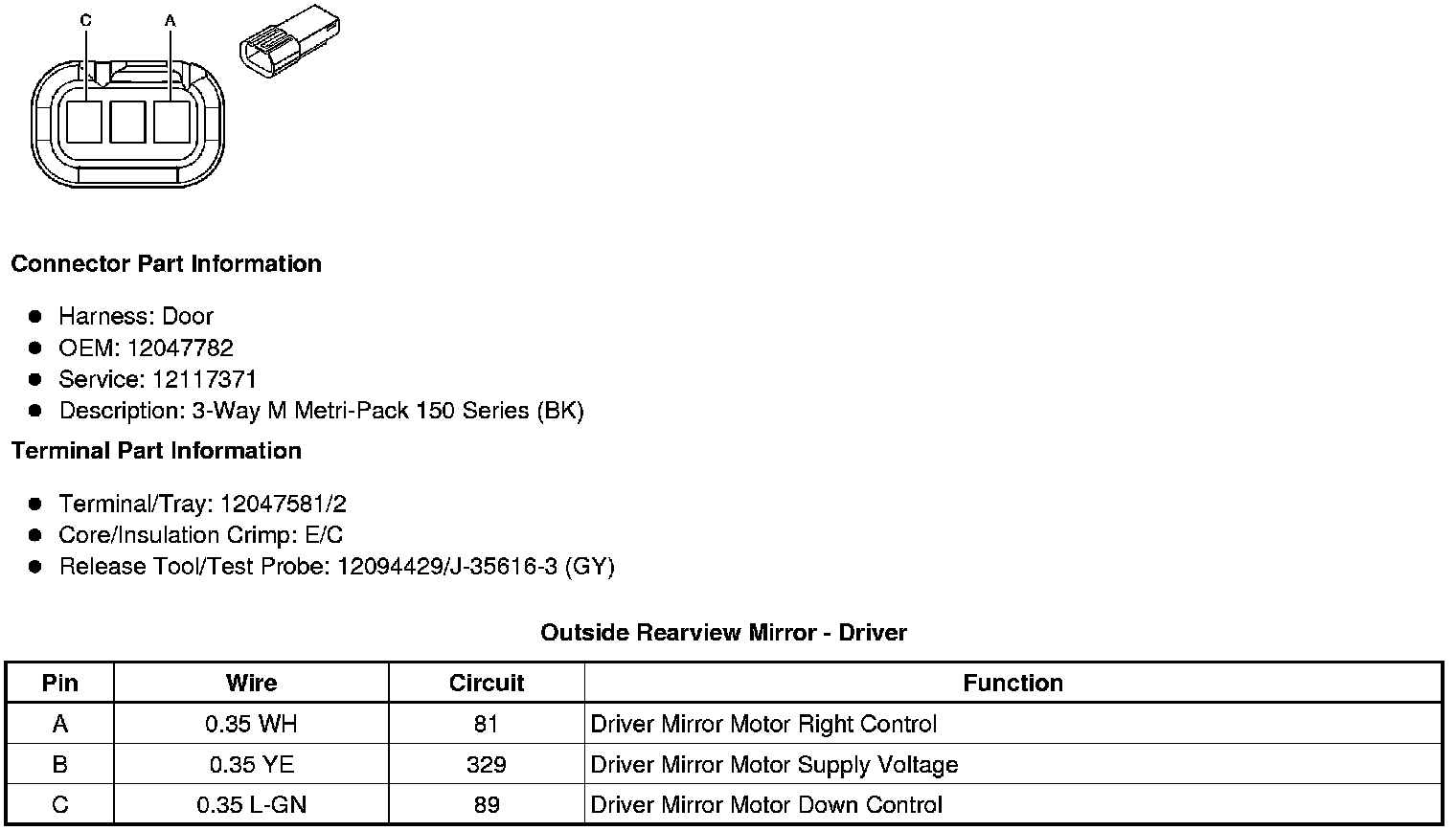

Outside Rearview Mirror - Driver

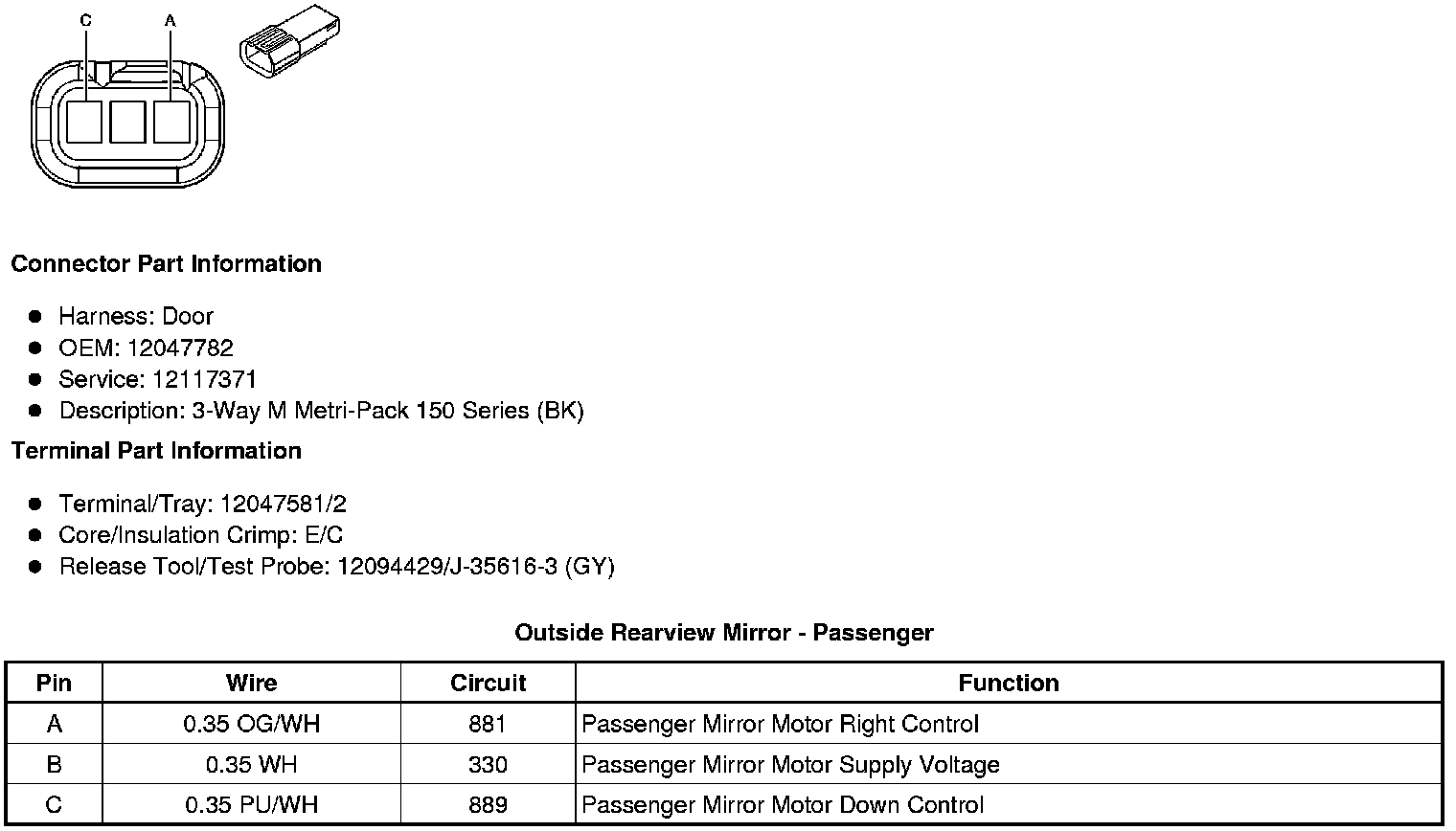

Outside Rearview Mirror - Passenger
