Voice Activation Module
Component Connector End Views

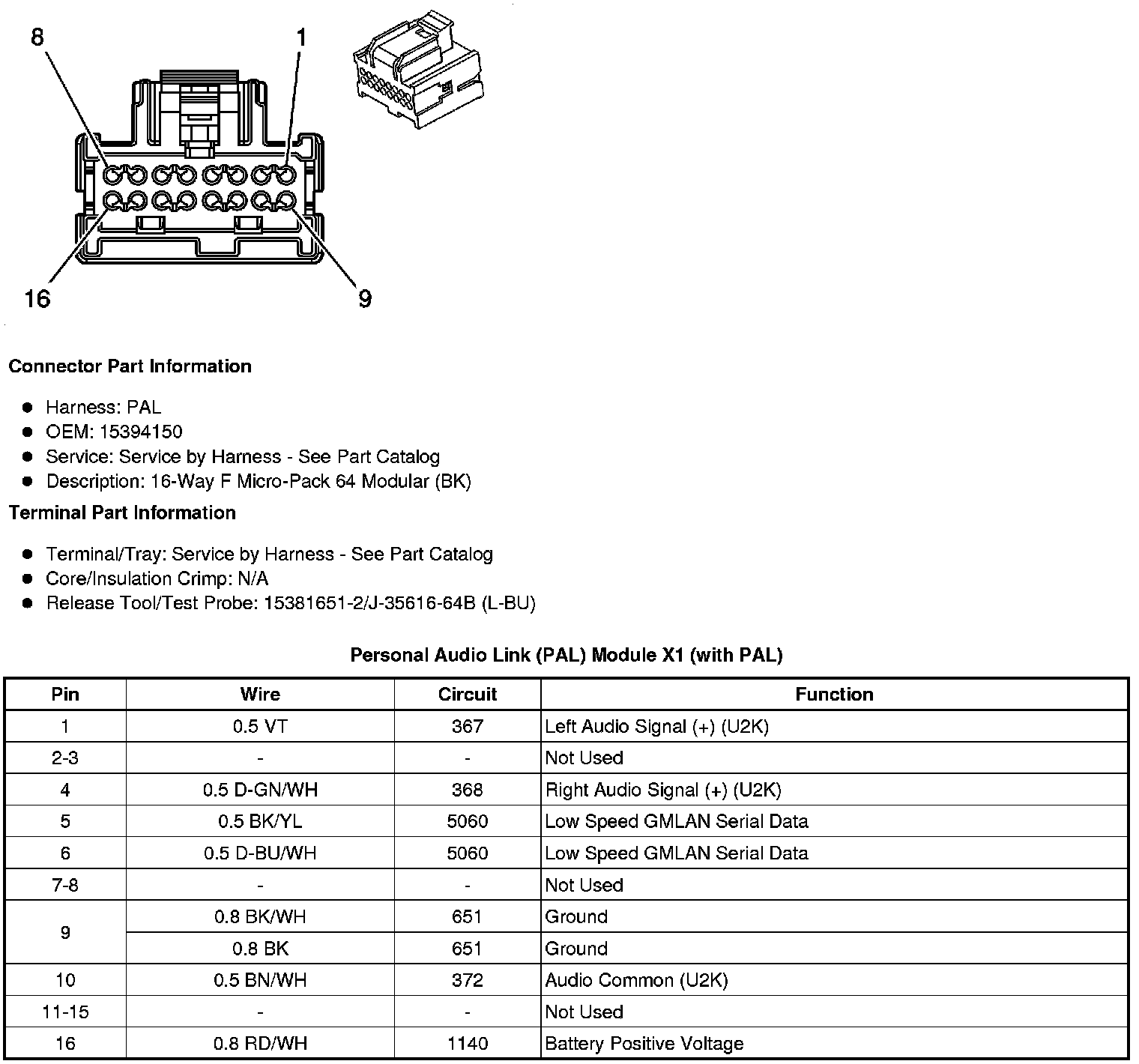

Personal Audio Link (PAL) Module X1 (with PAL)
