Windshield Washer Switch
Component Connector End Views

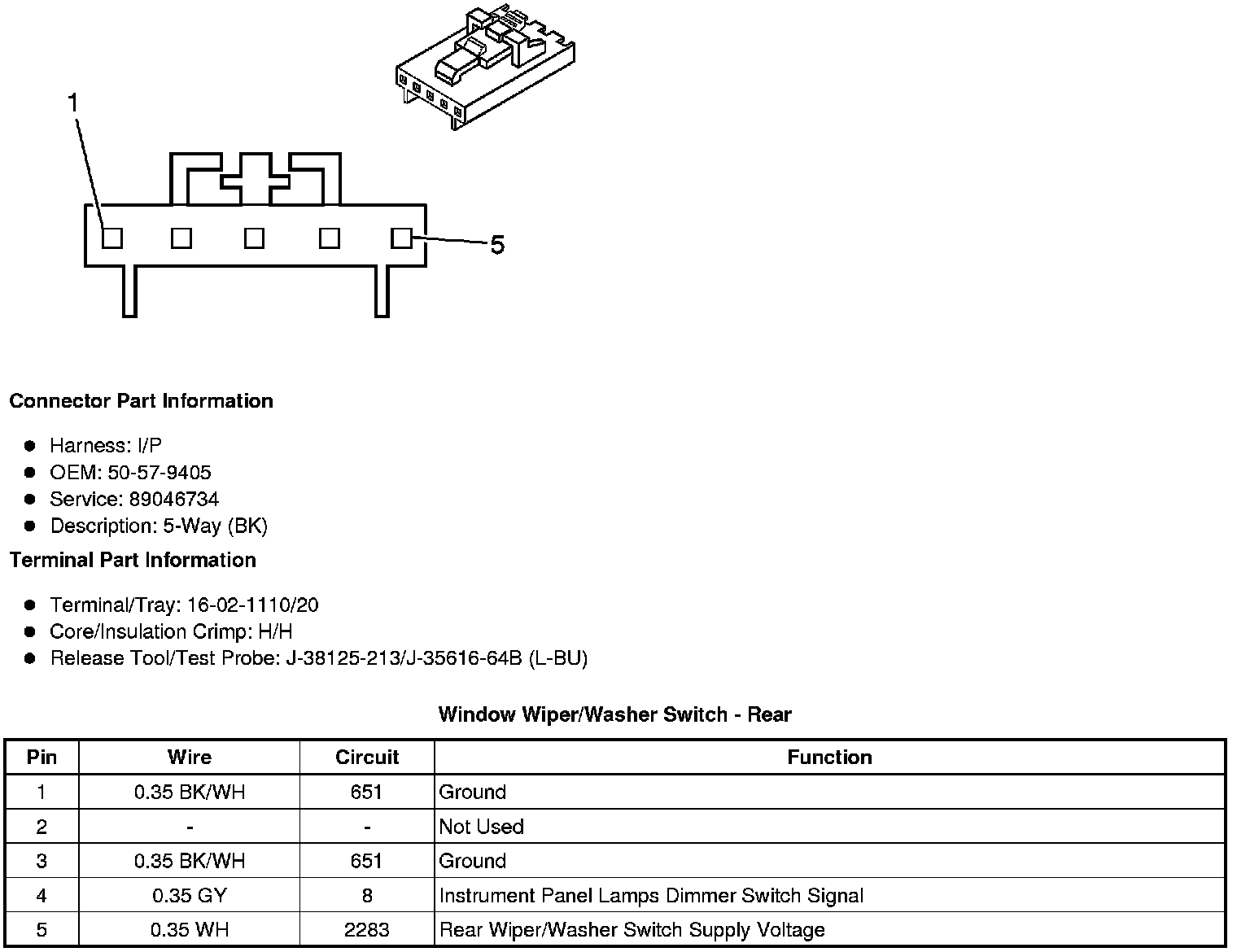

Window Wiper/Washer Switch - Rear

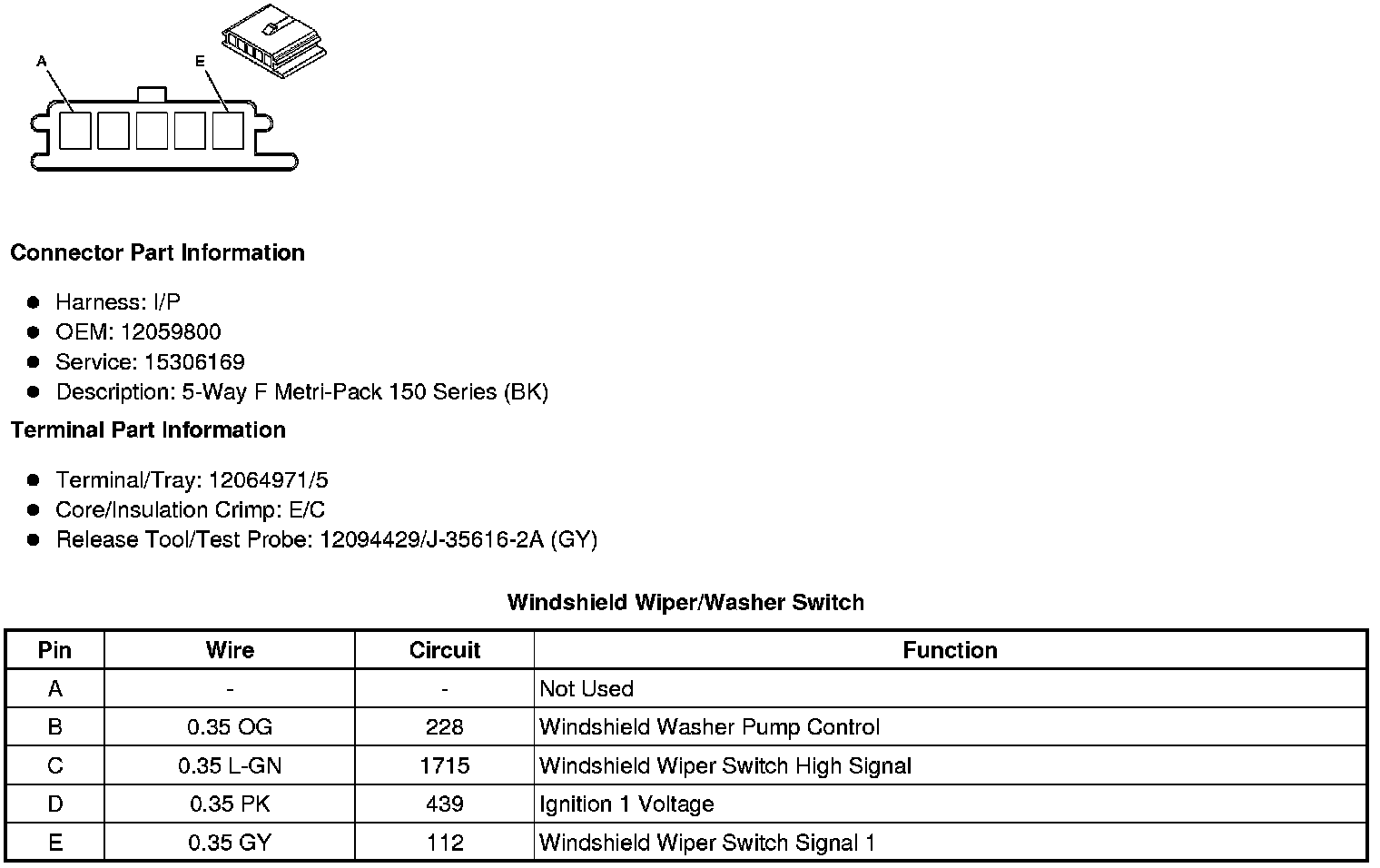

Windshield Wiper/Washer Switch
