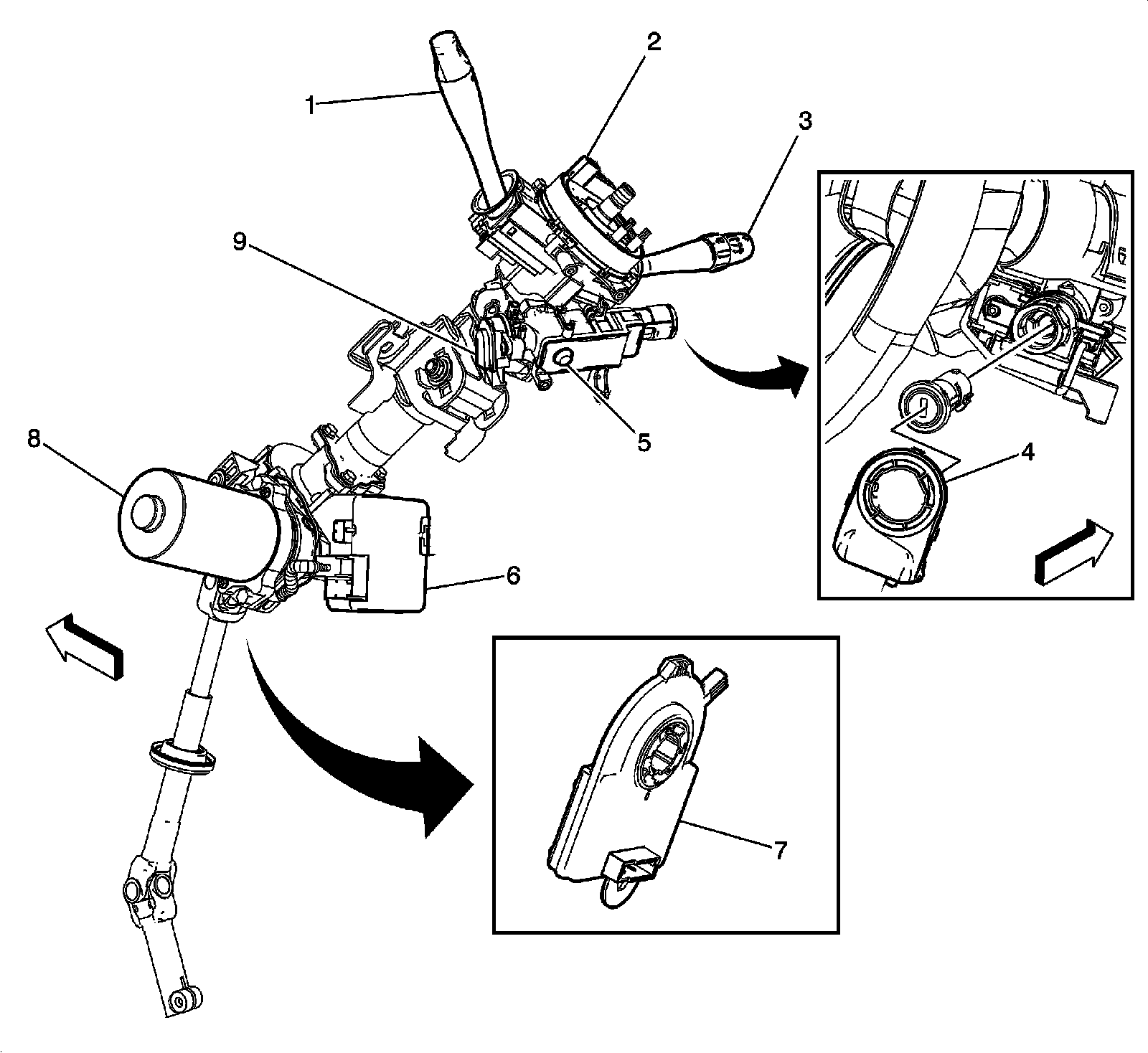

Steering Column Components




1 - Turn Signal / Multifunction Switch
2 - Inflatable Restraint Steering Wheel Module Coil
3 - Windshield Wiper / Washer Switch
4 - Theft Deterrent Control Module
5 - Ignition Lock Control Actuator (MN5)
6 - Power Steering Control Module (PSCM)
7 - Steering Angle Sensor
8 - Electronic Power Steering (EPS) Motor
9 - Ignition Switch
