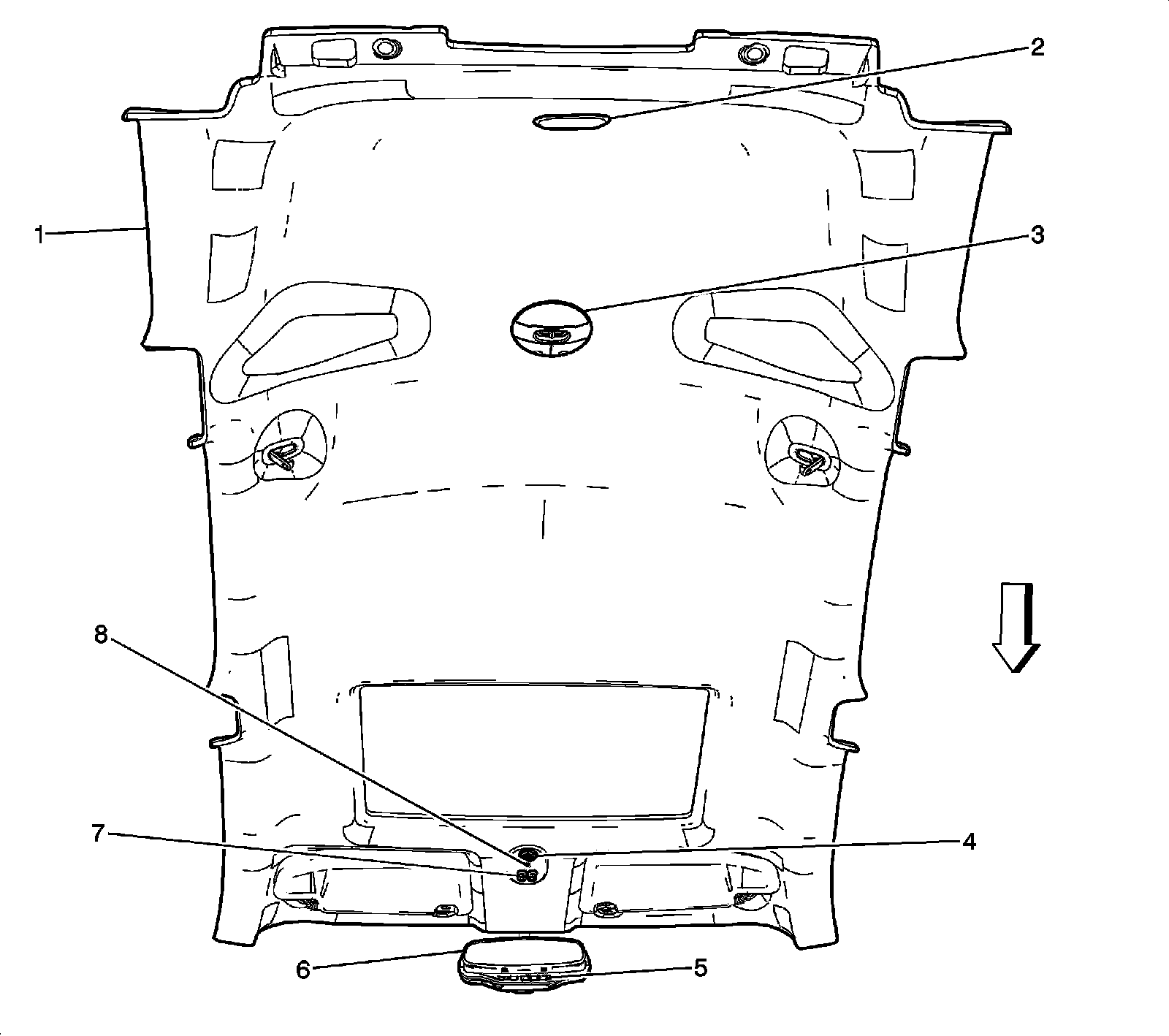

Headliner Components - Bottom

Passenger Compartment/Roof Component Views

Headliner Components - Bottom




1 - Headliner
2 - Dome Lamp
3 - Dome/Reading Lamps - Rear
4 - Sunroof Switch (CF5)
5 - OnStar Button Assembly (UE1)
6 - Inside Rearview Mirror
7 - Dome/Reading Lamps - Front
7 - Overhead console Courtesy/Reading Lamps (CF5)
8 - Cellular Microphone (UE1)
