Battery Current Sensor: Locations

Luggage Compartment/Rear of Vehicle Component Views

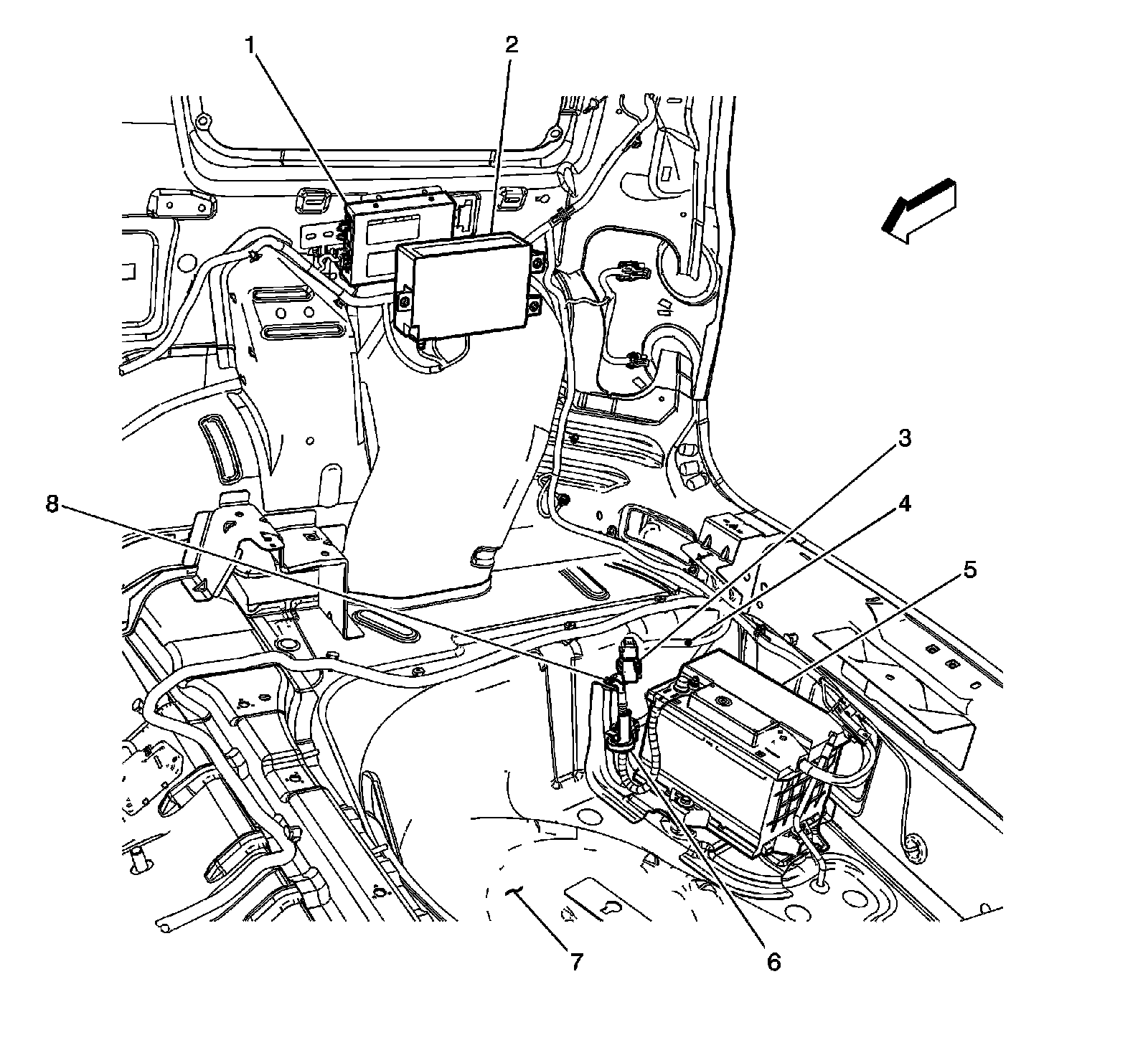

Luggage Compartment Components - Right Rear




1 - Digital Radio Receiver (U2K)
2 - Vehicle Communication Interface Module (VCIM) (UE1)
3 - BCM Fuse holder - 50AMP
4 - J411 (UE1)
5 - Battery
6 - Battery Current Sensor (LE8 or LE9)
7 - Floor Panel
8 - G403
