Data Link Connector: Service and Repair

Data Link Connector Replacement

Removal Procedure

1. Lower the instrument panel (I/P) closeout panel. Refer to Instrument Panel Insulator Replacement (Instrument Panel Insulator Replacement).

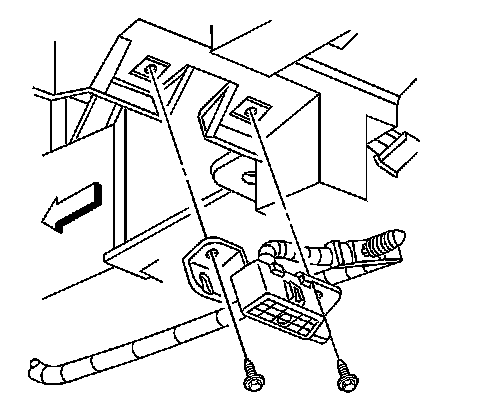

2. Remove the screws securing the data link connector (DLC) to the I/P carrier.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the screws securing the DLC to the I/P carrier.

Tighten the screws to 2 Nm (18 lb in).

2. Install the I/P closeout panel. Refer to Instrument Panel Insulator Replacement (Instrument Panel Insulator Replacement).
