Engine Components - Front (2 of 2)

Powertrain Component Views

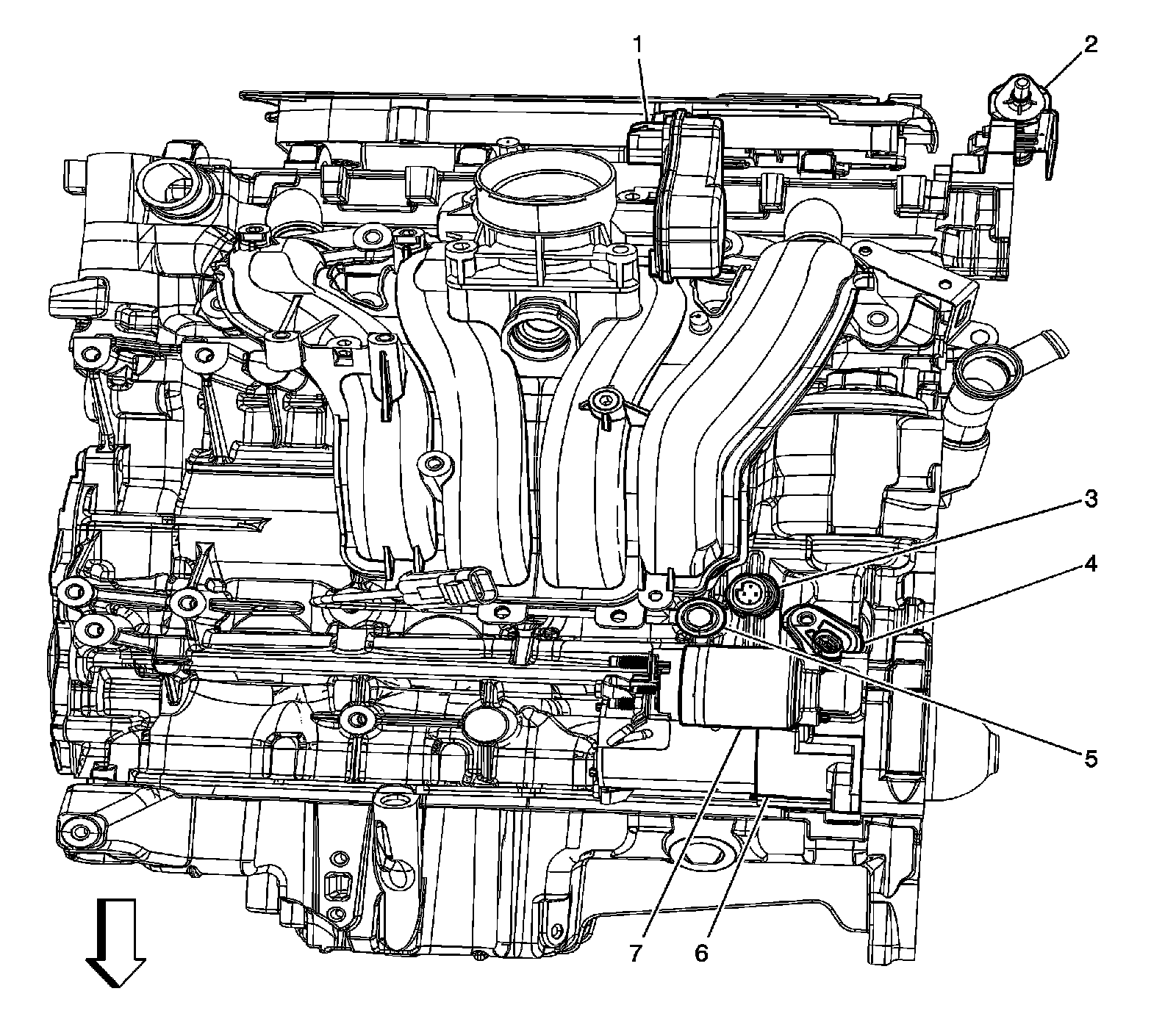

Engine Components - Front (2 of 2)




1 - Throttle Actuator Control (TAC) Module
2 - Evaporative Emission (EVAP) Canister Purge Solenoid
3 - Engine Oil Pressure (EOP) Switch
4 - Crankshaft Position (CKP) Sensor
5 - Knock Sensor (KS)
6 - Starter
7 - Starter Solenoid
