Left Side of the Engine Compartment

Front of Vehicle/Engine Compartment Component Views

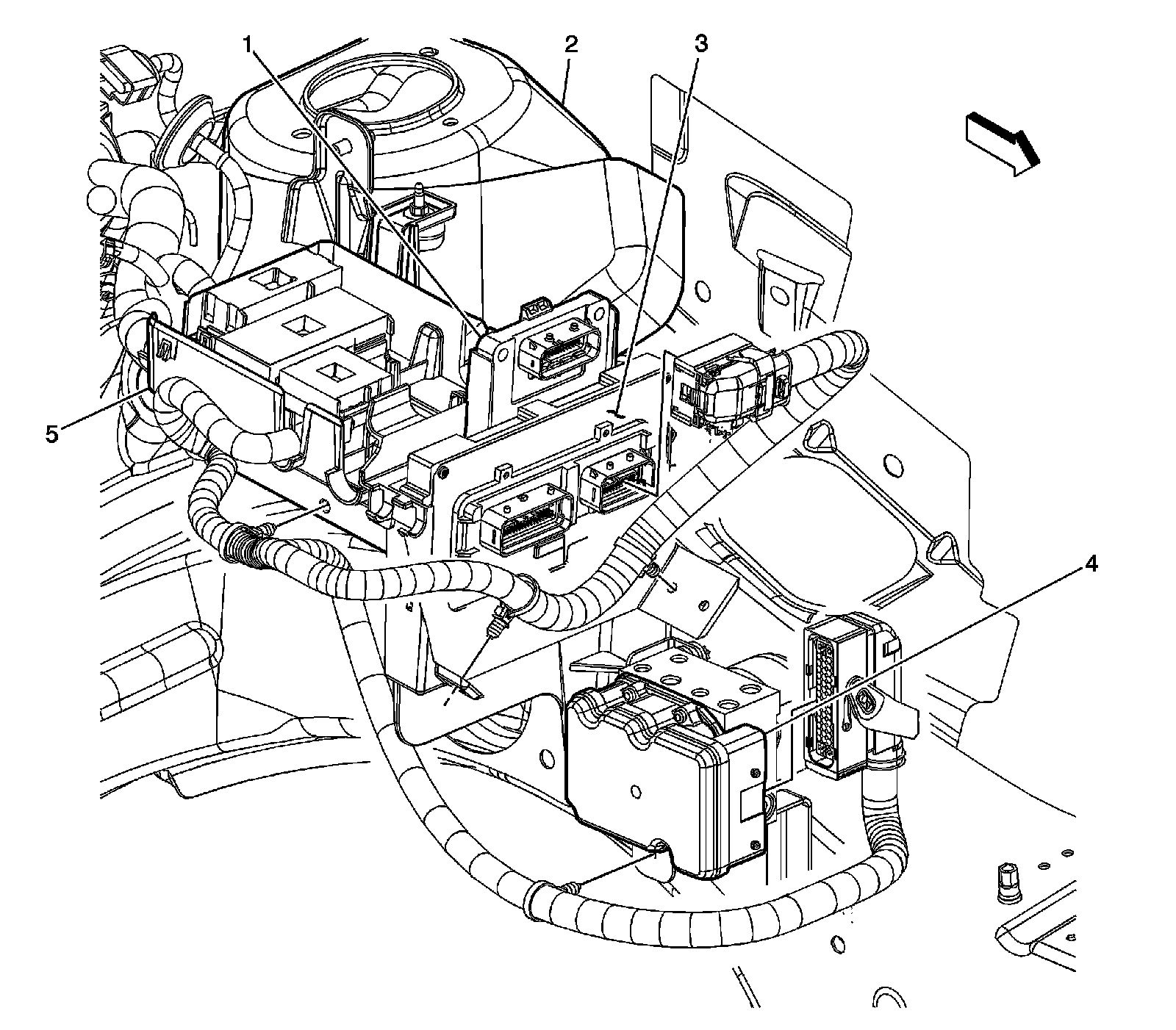

Left Side of the Engine Compartment




1 - Transmission Control Module (TCM) (MN5)
2 - Left Front Strut Tower
3 - Engine Control Module (ECM)
4 - Electronic Brake Control Module (EBCM) (JM4/JL9)
5 - Fuse Block - Underhood Bracket
