Fuel Level Sensor: Locations




Wheels/Vehicle Underbody Component Views

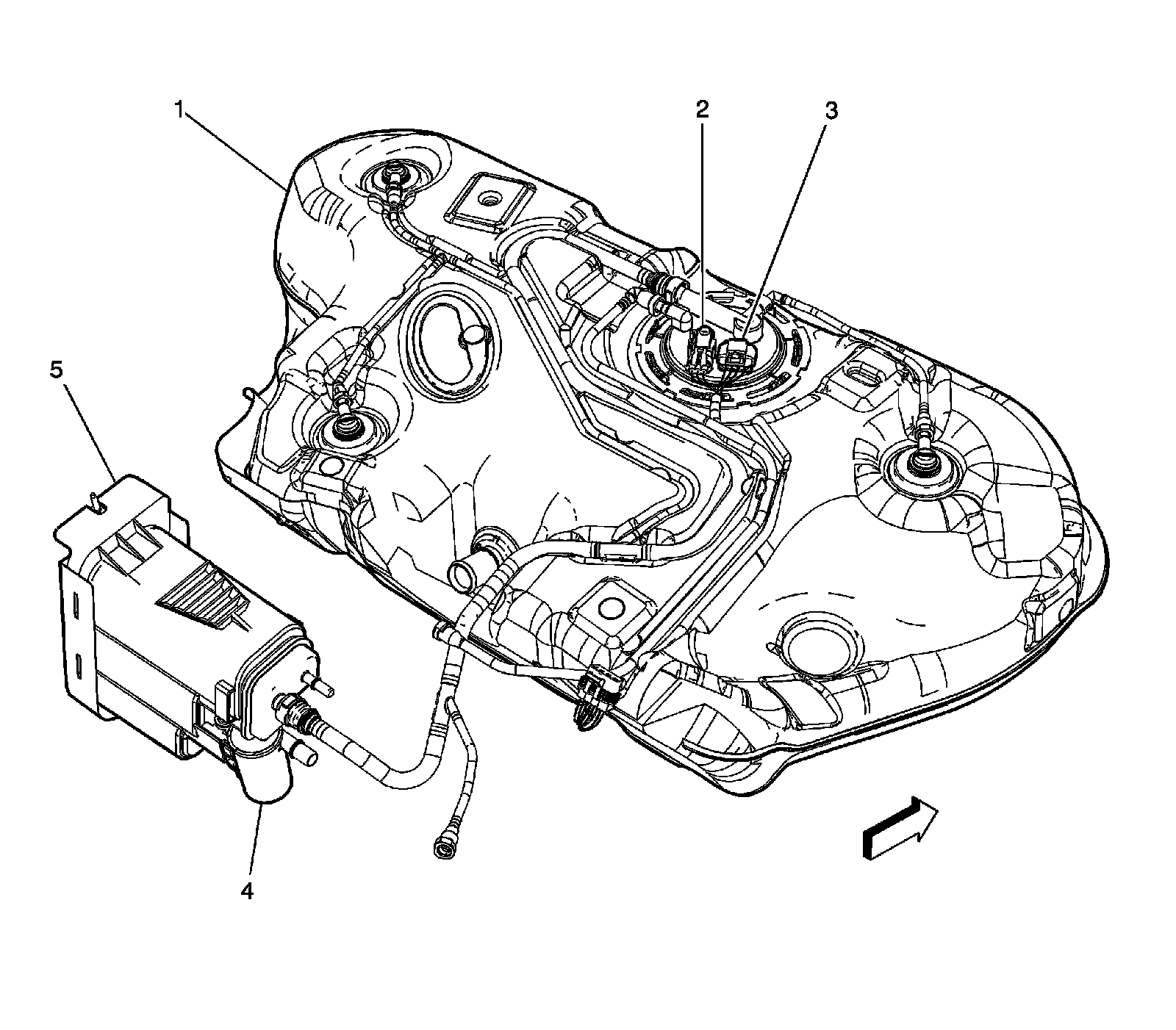

Fuel Tank Components




1 - Fuel Tank
2 - Fuel Pump and Sender Assembly
3 - Fuel Tank Pressure (FTP) Sensor
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Evaporative Emission (EVAP) Canister
