Electrical Diagrams




Data Communication Schematics

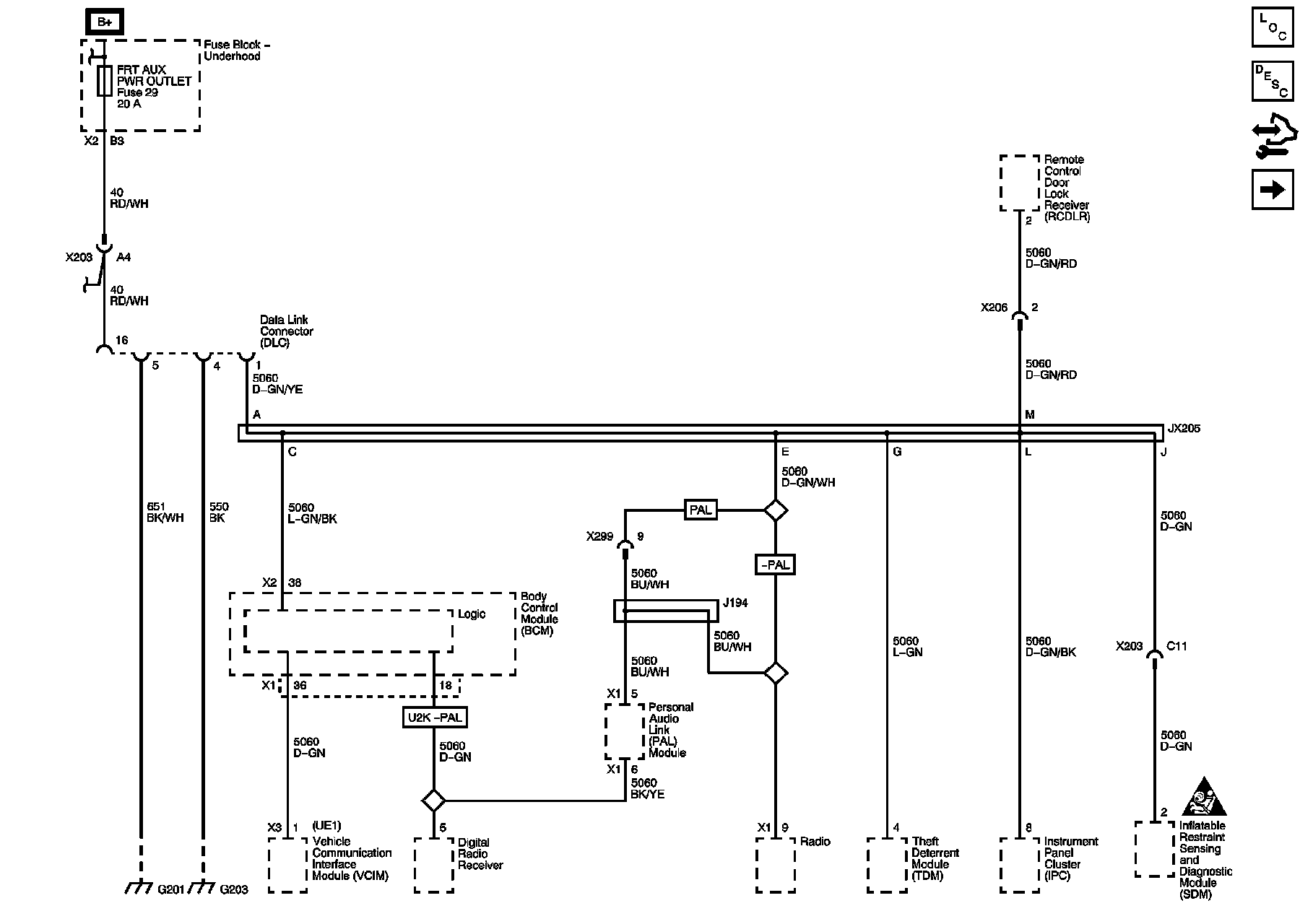

Power, Ground, and Low Speed GMLAN

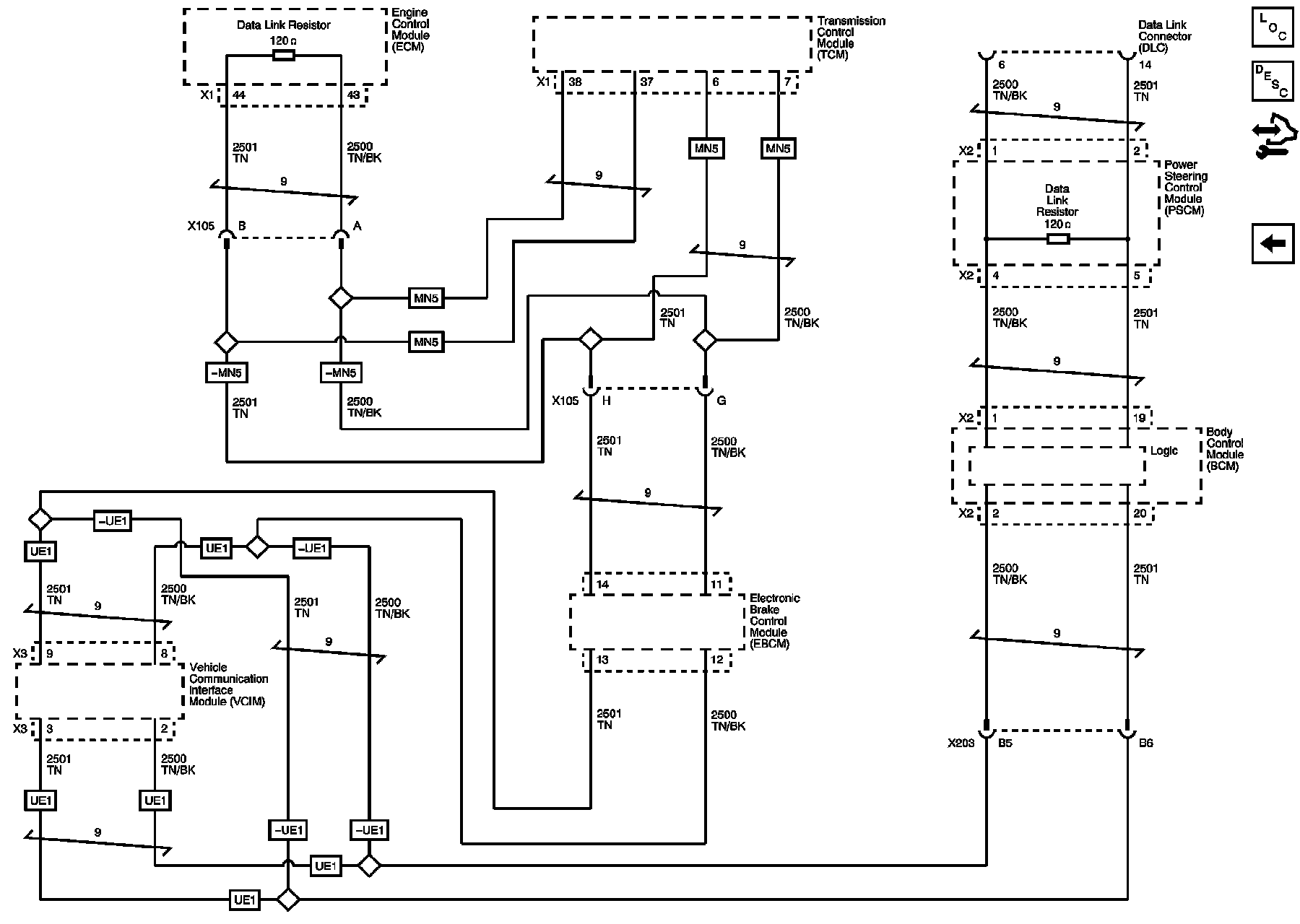

High Speed GMLAN
