Oxygen Sensor: Diagrams




Component Connector End Views

Heated Oxygen Sensor (HO2S) 1 (LE8/LE9)

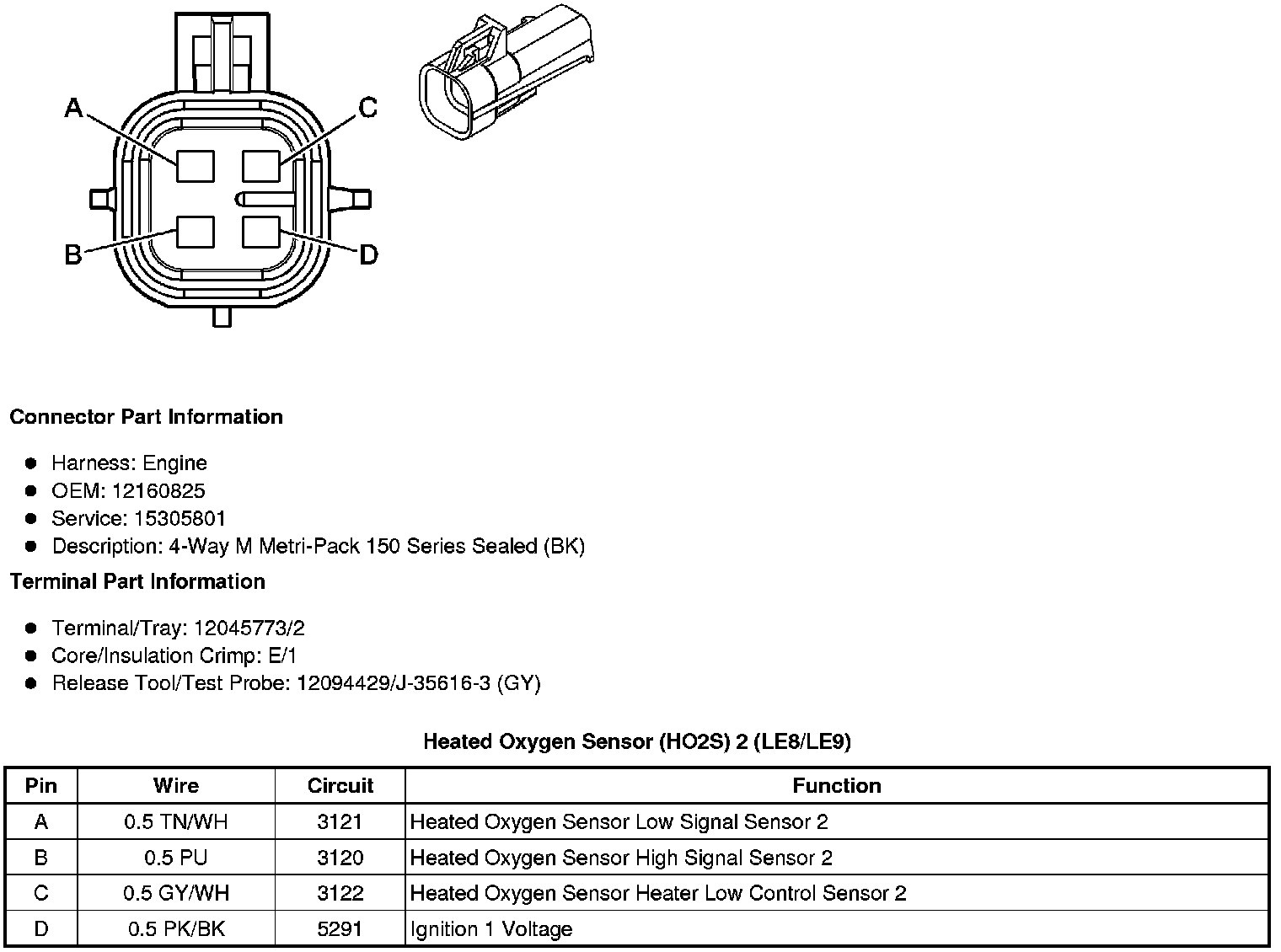

Heated Oxygen Sensor (HO2S) 2 (LE8/LE9)
