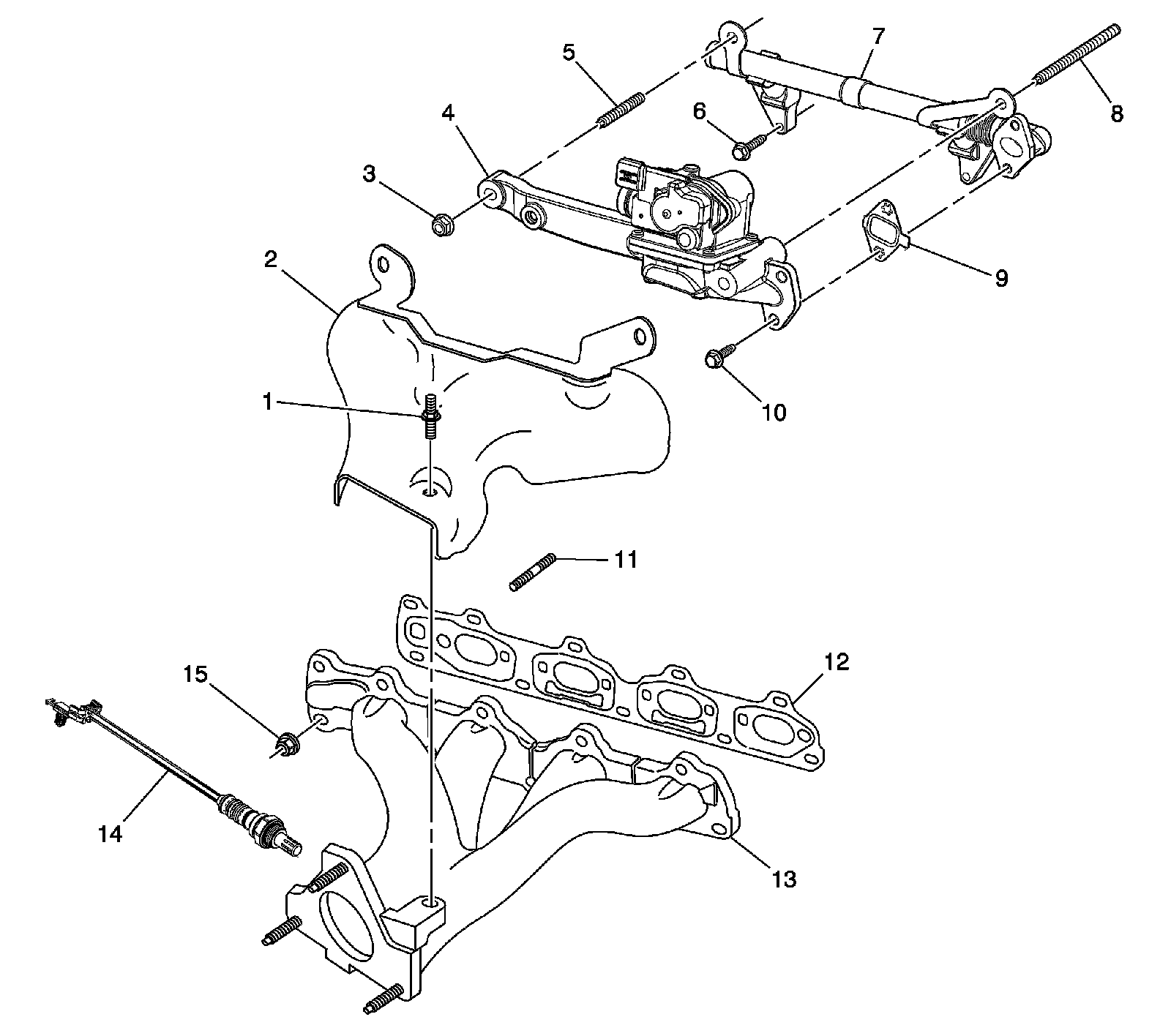

Exhaust Manifold and Components




1 - Exhaust Manifold Heat Shield Stud
2 - Exhaust Manifold Heat Shield
3 - Secondary Air Injection Assembly Nut
4 - Secondary Air Injection Assembly
5 - Secondary Air Injection Check Stud
6 - Secondary Air Injection Bolt
7 - Secondary Air Injection Pipe Assembly
8 - Secondary Air Injection Stud
9 - Secondary Air Injection Check Valve Gasket
10 - Secondary Air Injection Bolt
11 - Exhaust Manifold Stud
12 - Exhaust Manifold Gasket
13 - Exhaust Manifold
14 - Oxygen Sensor
15 - Exhaust Manifold Nut
