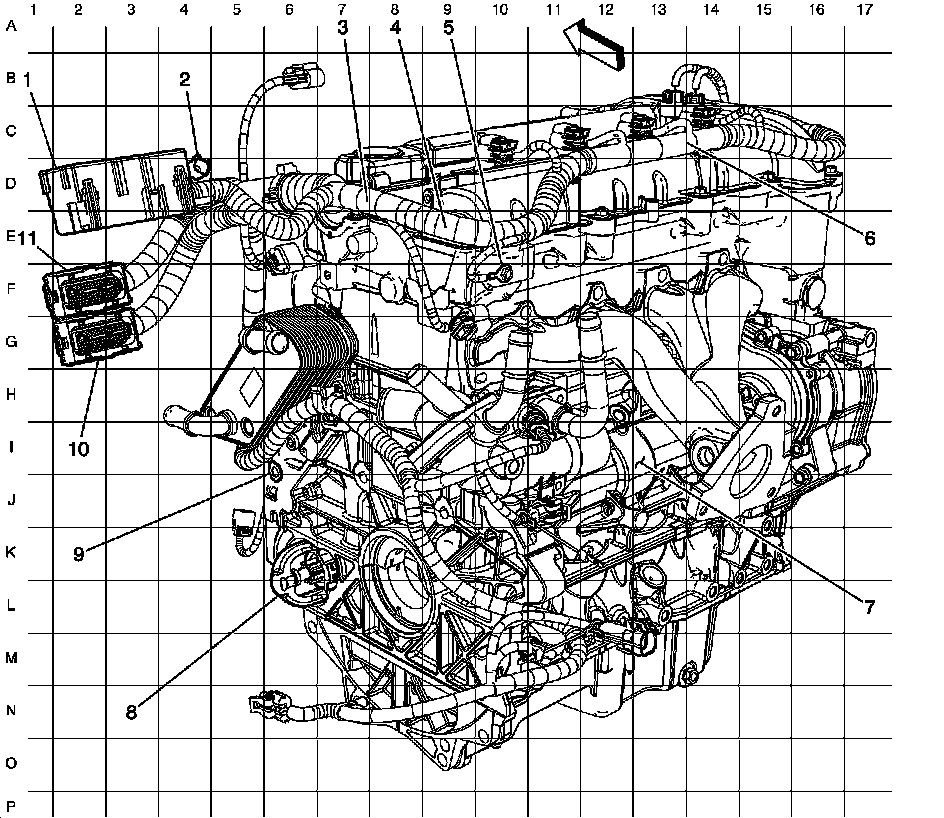

Engine Harness Routing - Rear




1 - Fuse Block - Underhood X1
2 - X101
3 - J106
4 - J105
5 - G108
6 - J107
7 - Engine Block
8 - Starter
9 - G107
10 - Engine Control Module X3
11 - Engine Control Module X2
