Harness Routing Views




Harness Routing Views

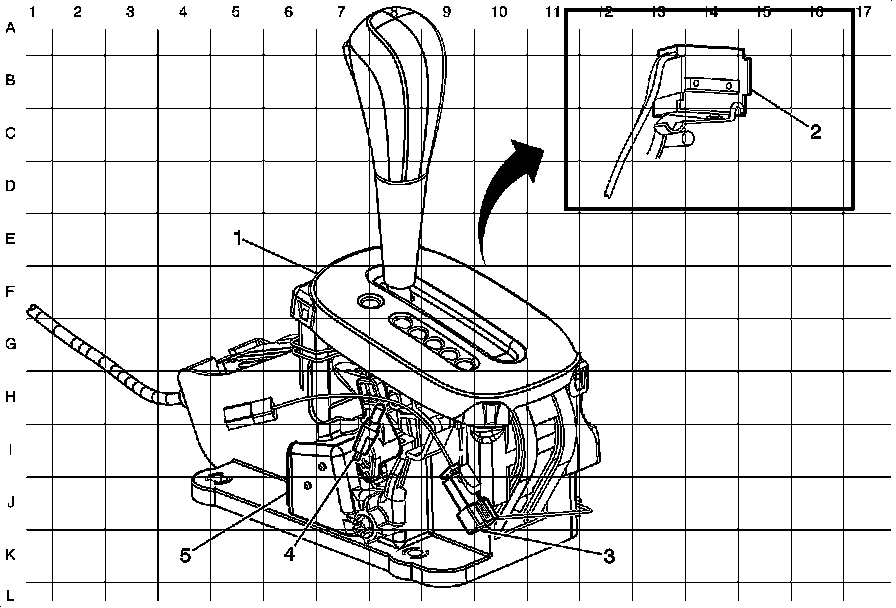

Automatic Transmission Shift Lever Components (MN5)




1 - Automatic Transmission Shift Lever
2 - Park Position Switch
3 - X307
4 - Automatic Transmission Shift Lever Bulb and Socket
5 - Automatic Transmission Shift Lock Control Solenoid
