Vehicle Speed Sensor: Diagrams




Component Connector End Views

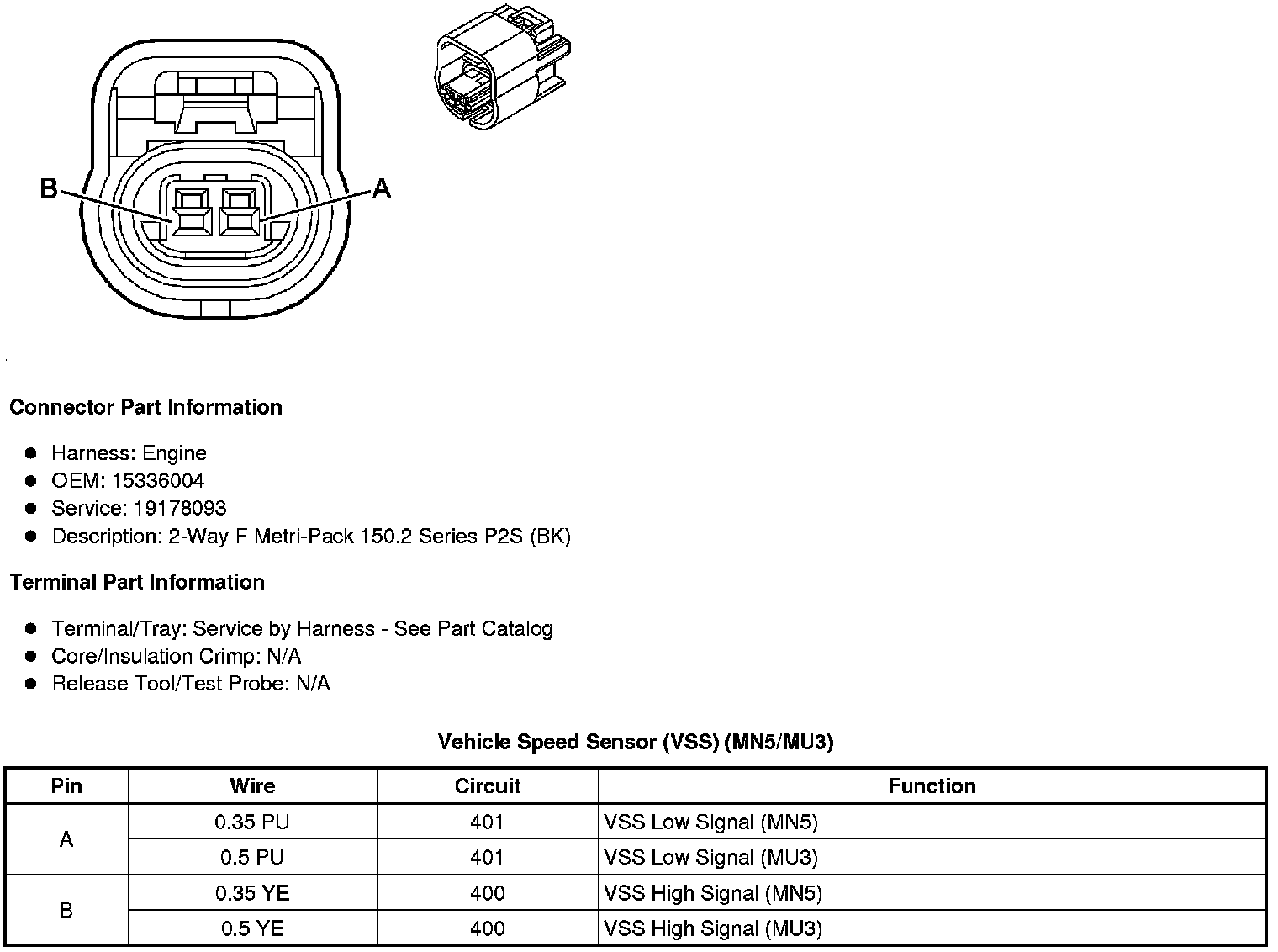

Vehicle Speed Sensor (VSS) (MN5/MU3)

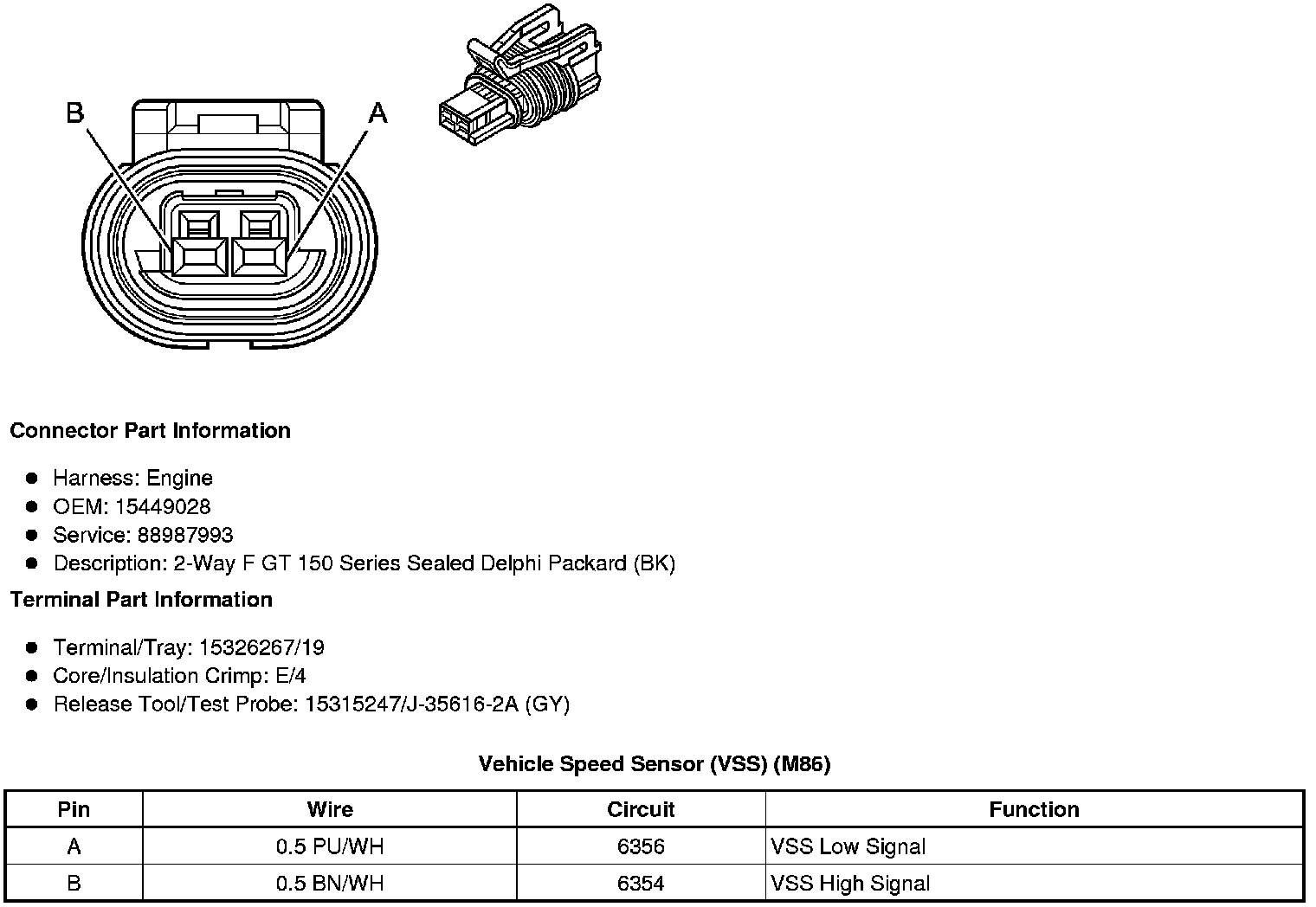

Vehicle Speed Sensor (VSS) (M86)
