Electrical Diagrams
Engine Controls Schematics

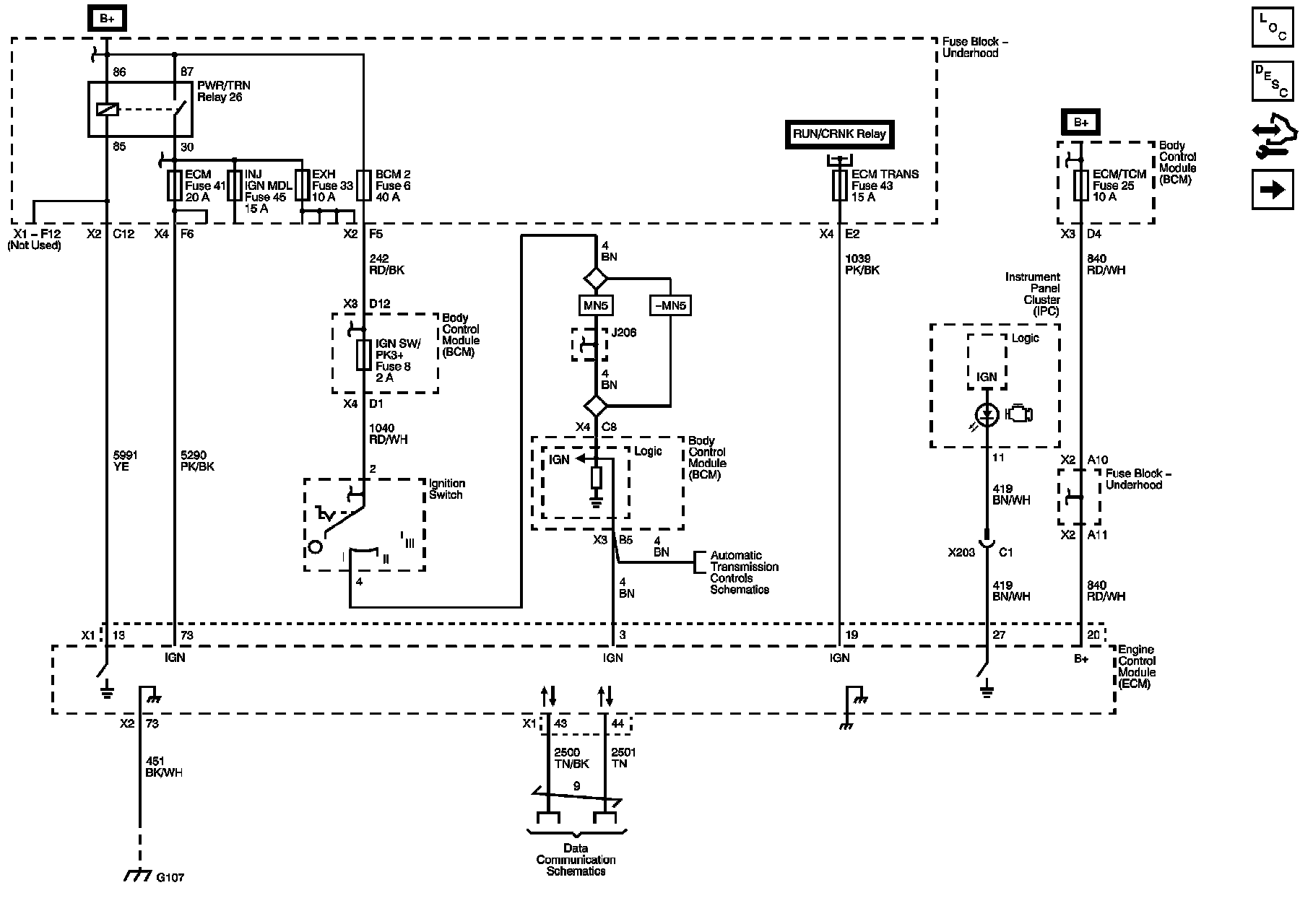

Power, Ground, Serial Data, and MIL
5V1, 5V2, and Low Reference Bus

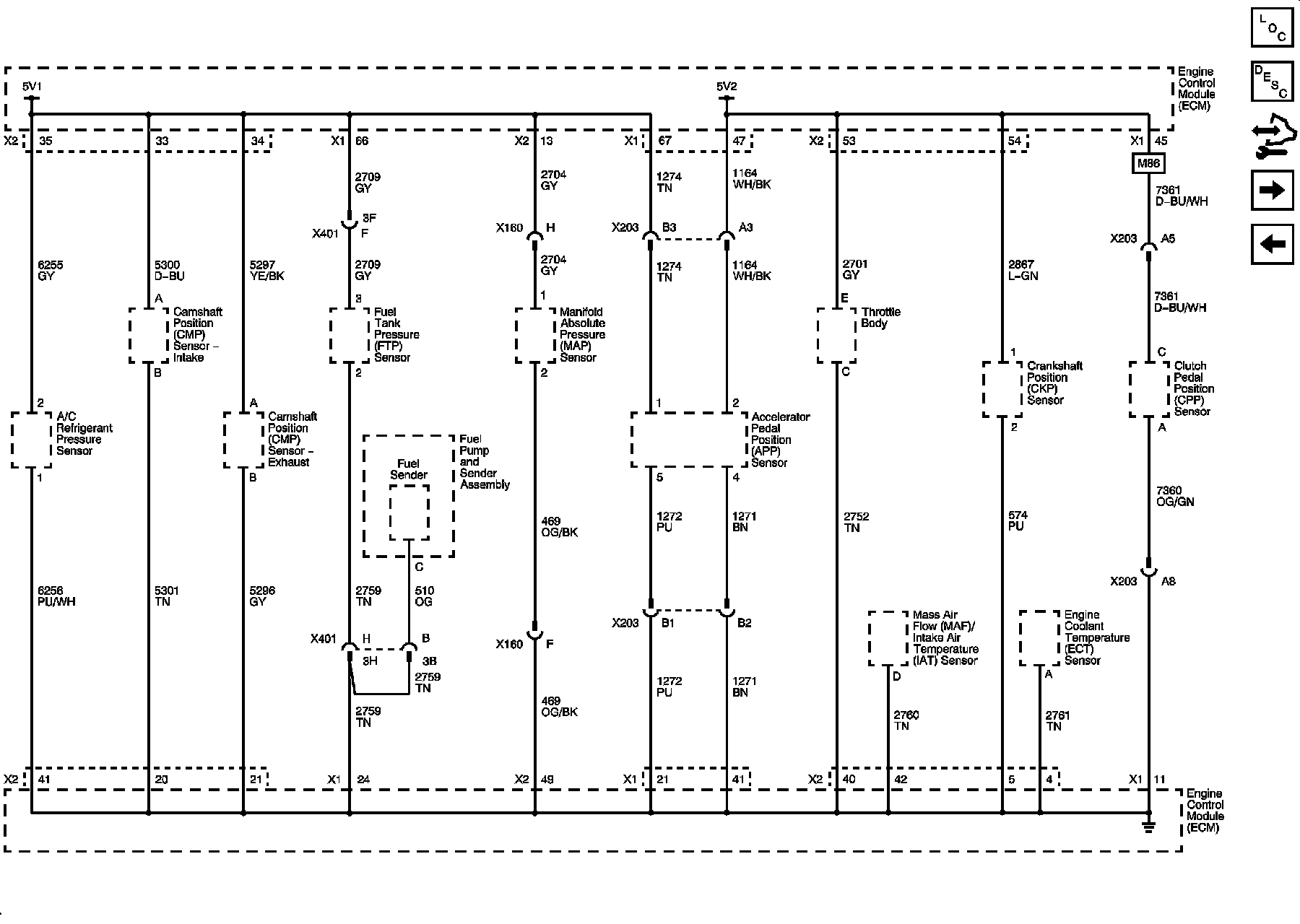

Engine Data Sensors - Pressure and Temperature
Engine Data Sensors - Heated Oxygen Sensors
Engine Data Sensors - Throttle Controls
Ignition Controls - Ignition System
Ignition Controls - CKP, CMP, and Knock Sensors, CMP Actuators
Fuel Controls - Fuel Pump and Fuel Injectors
Fuel Controls - EVAP Controls
Controlled/Monitored Subsystem References
