Driver Door Components

Door Component Views

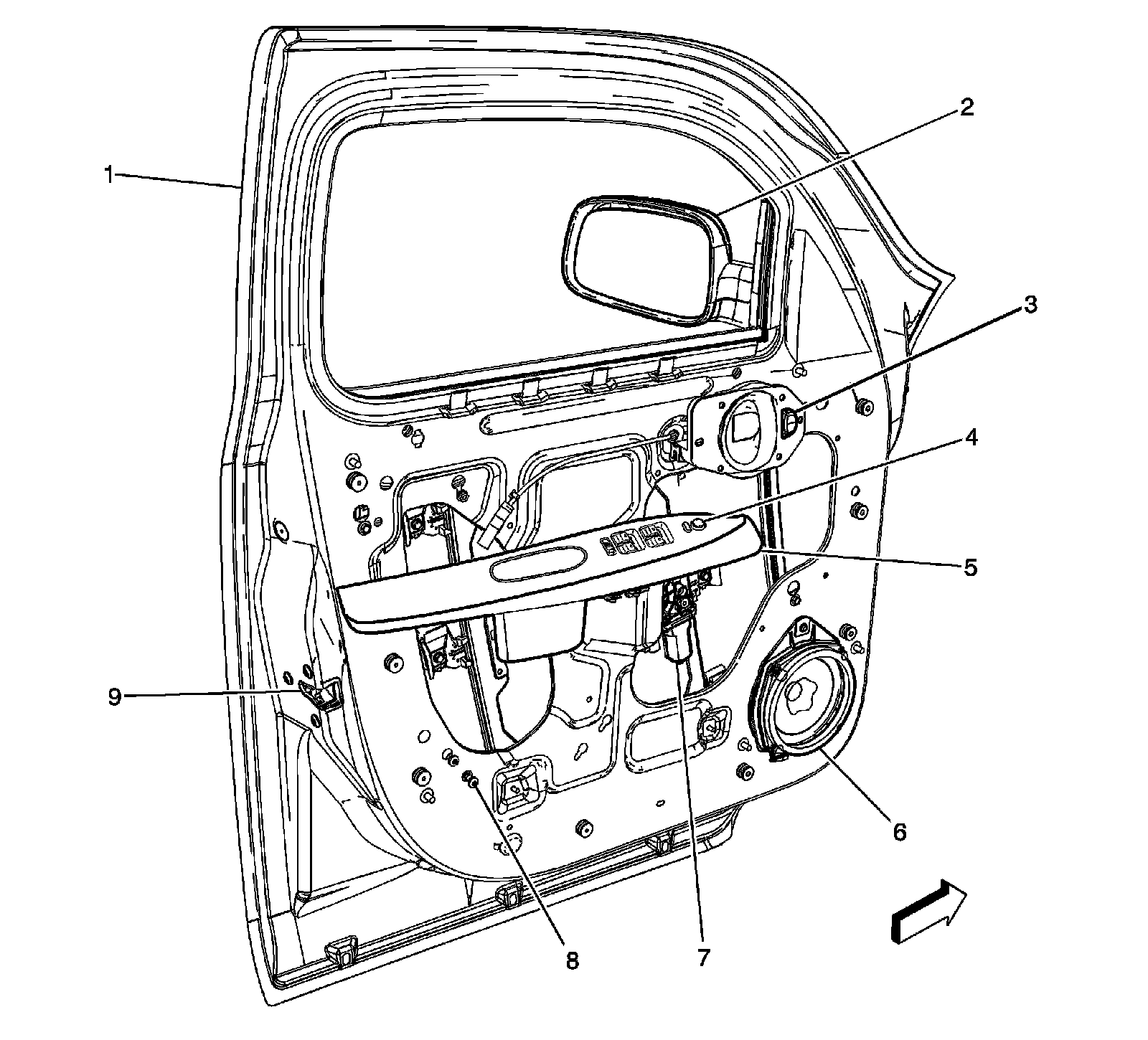

Driver Door Components




1 - Door Frame
2 - Outside Rearview Mirror Motor - Driver
3 - Door Lock Switch - Driver
4 - Outside Rearview Mirror Switch
5 - Window Switch - Driver
6 - Speaker - Left Front
7 - Window Motor - Driver
8 - Inflatable Restraint Side Impact Sensor (SIS) Left (ASF)
9 - Door Latch - Driver
