Camshaft Position Sensor Replacement - Intake

Camshaft Position Sensor Replacement - Intake

Removal Procedure




1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (Service and Repair).

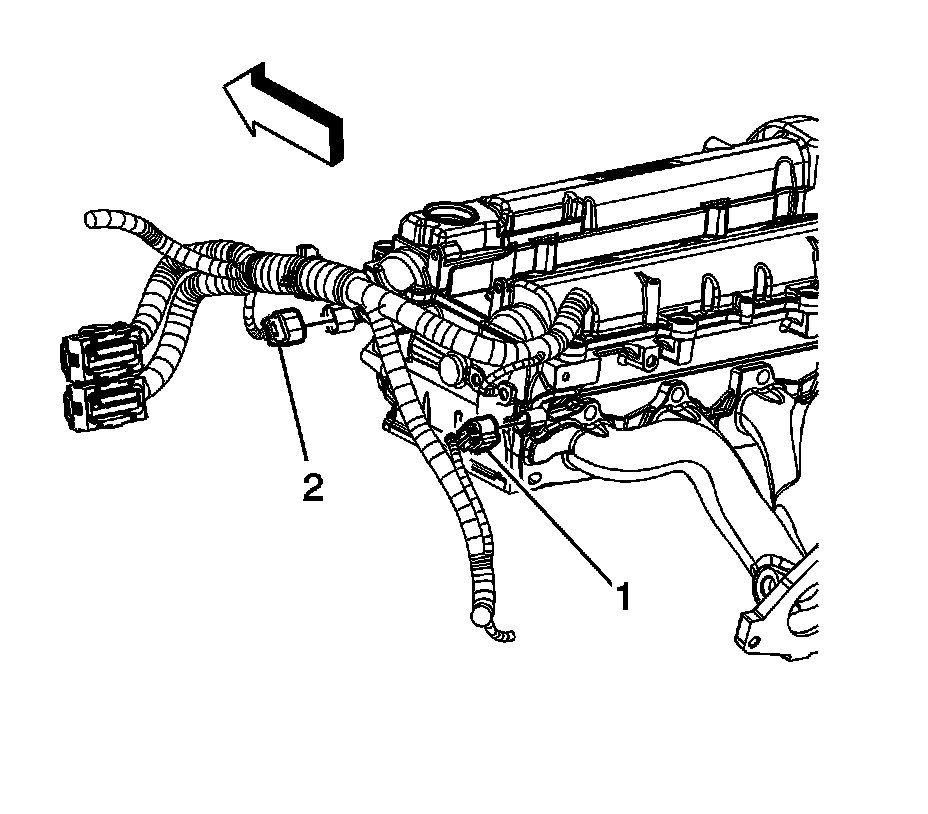

2. Disconnect the intake camshaft position (CMP) sensor electrical connector (2).




3. Remove the CMP sensor bolt.

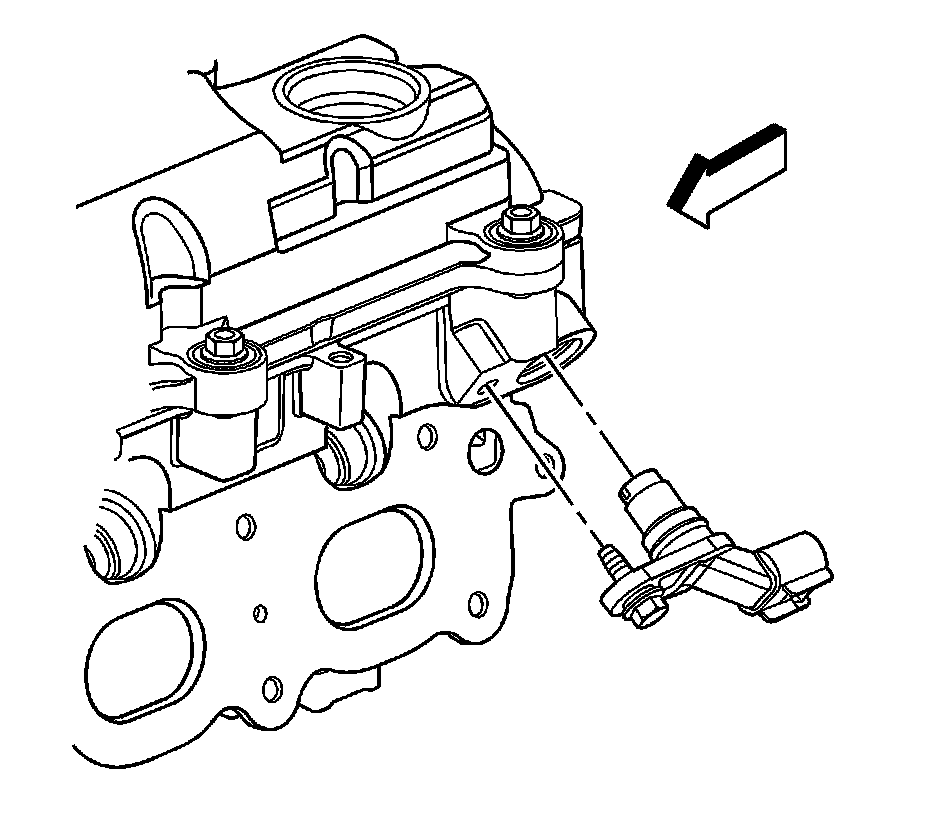

4. Remove the CMP sensor.

Installation Procedure





Note: Inspect the CMP sensor for damage. Replace as necessary.

1. Lubricate the CMP sensor O-ring seal with clean engine oil.
2. Install the CMP sensor.
Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the CMP sensor bolt.

Tighten the bolt to 10 Nm (89 lb in).




4. Connect the intake CMP sensor electrical connector (2).
5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (Service and Repair).
