Remote Control Door Lock Receiver Replacement

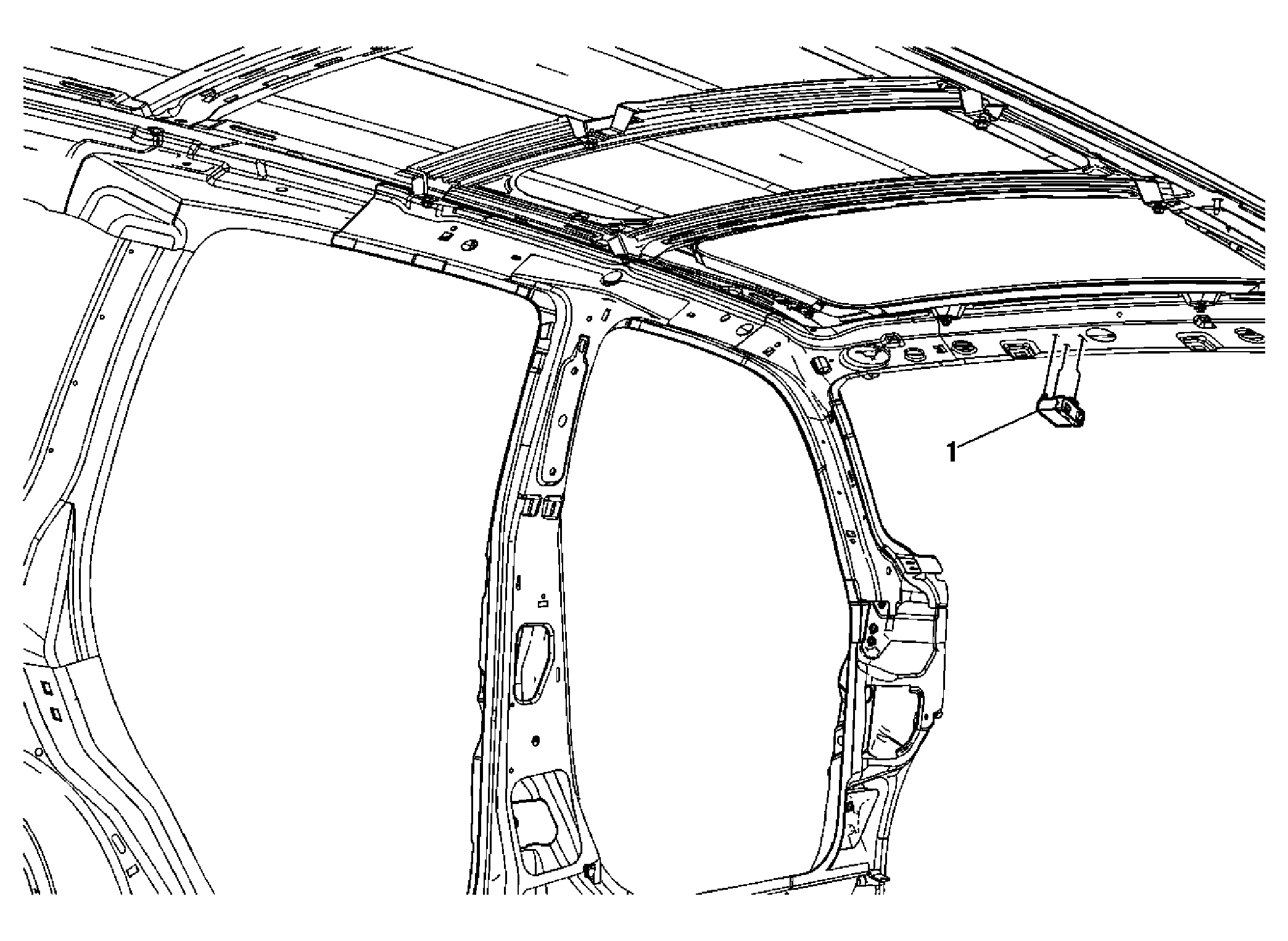

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front of headliner to access the receiver. Refer to Headlining Trim Panel Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the receiver from the roof front header panel. Reprogram the remote control door lock receiver after installation. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Lower the front of headliner to access the receiver. Refer to Headlining Trim Panel Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Unsnap the receiver from the roof front header panel.
Reprogram the remote control door lock receiver after installation. Refer to Control Module References
