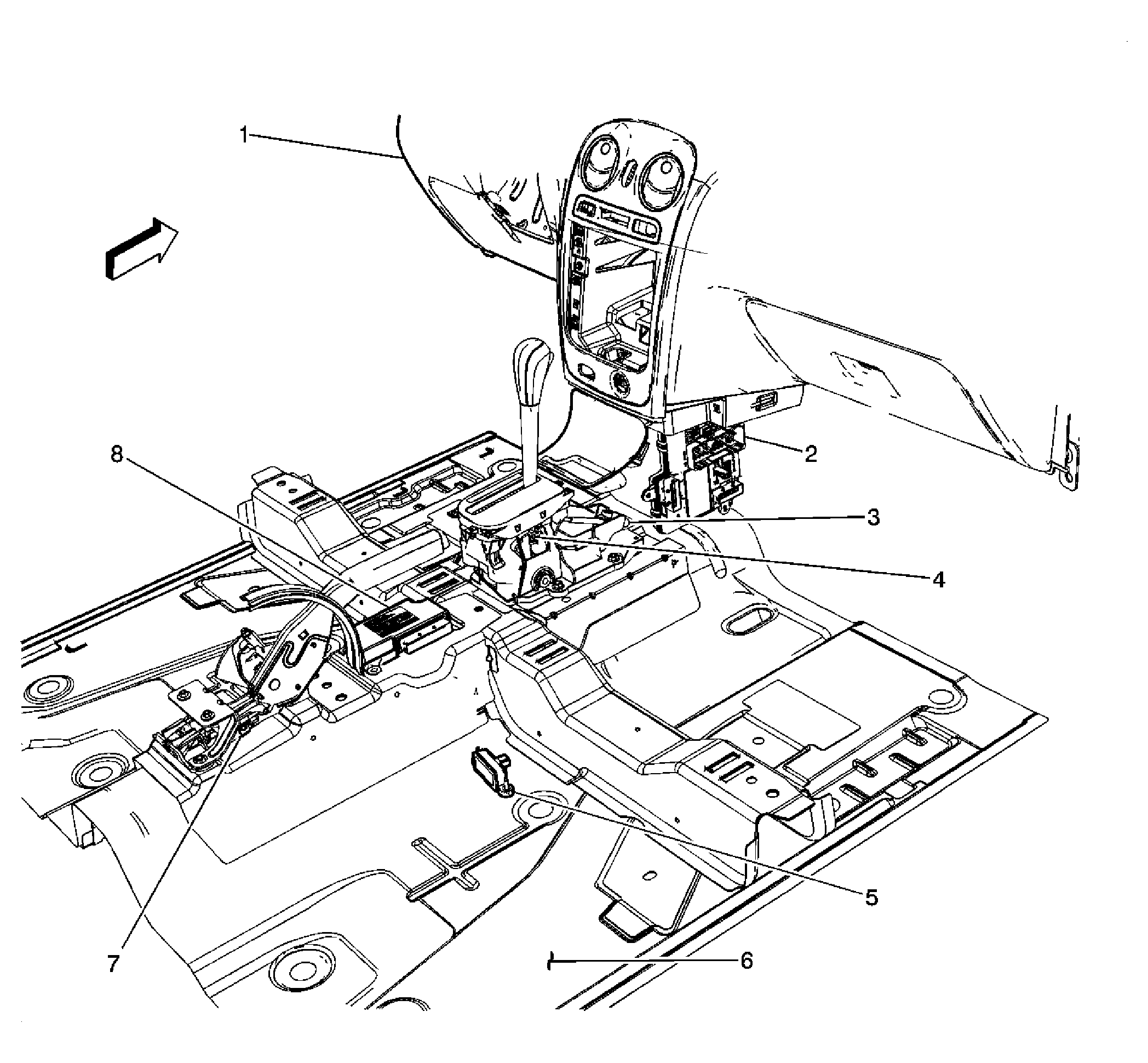

Inside Center Console Components
Inside Center Console Components
| Component Name | Callout |
|---|---|
| Instrument Panel Trim | 1 |
| Body Control Module (BCM) | 2 |
| Inflatable Restraint Vehicle Rollover Sensor | 3 |
| Automatic Transmission Shift Lever (MN5) | 4 |
| Yaw and Lateral Accelerometer Sensor (JL4) | 5 |
| Floor Panel | 6 |
| Park Brake Switch | 7 |
| Inflatable Restraint Sensing and Diagnostic Module (SDM) | 8 |
