Instrument Panel Components

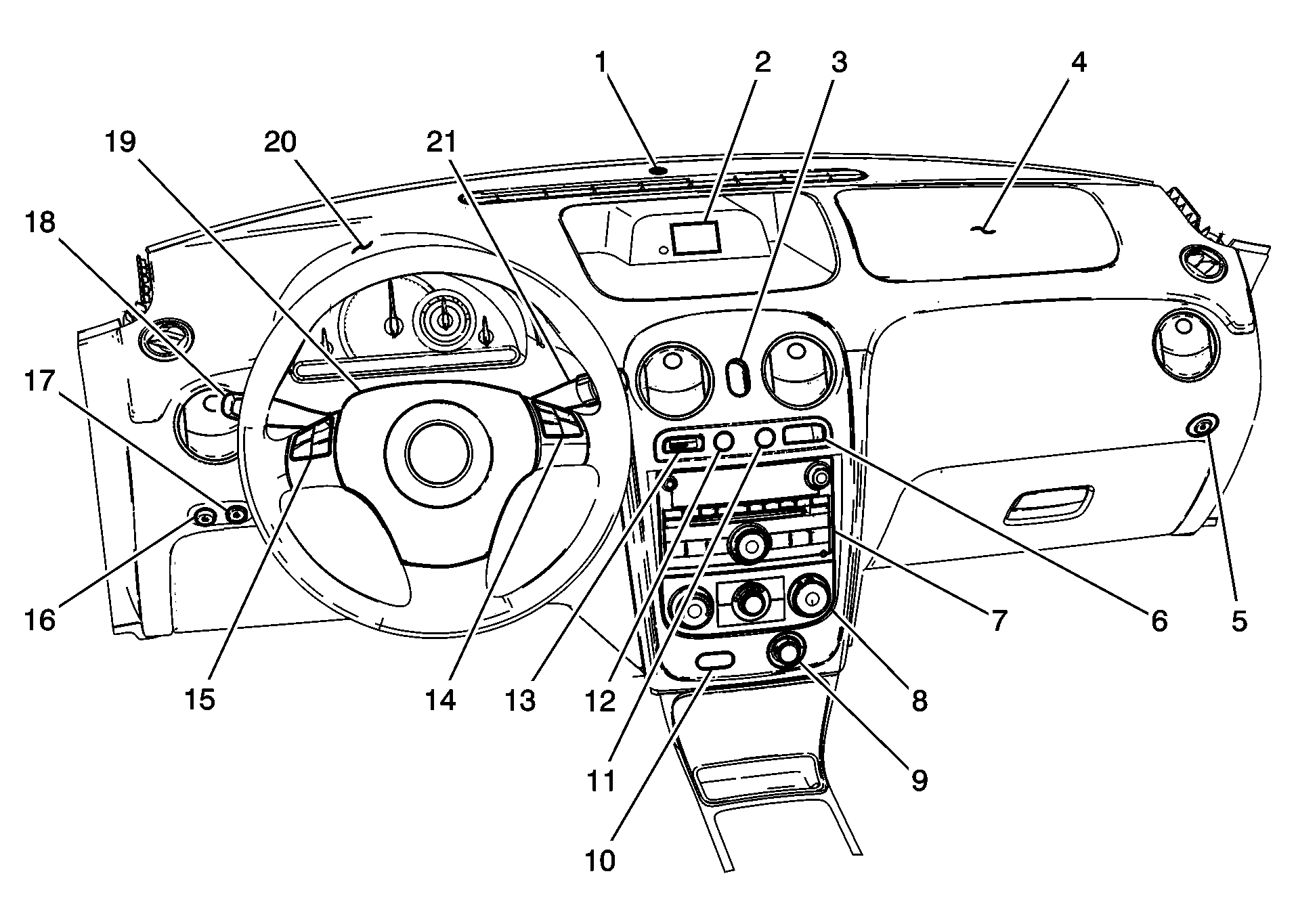

Instrument Panel Components
| Component Name | Callout |
|---|---|
| Ambient Light Sensor | 1 |
| Driver Information Center (UAF) | 2 |
| Hazard Switch | 3 |
| Inflatable Restraint I/P Module | 4 |
| Passenger Rear Access Panel Switch - Right Rear Panel (Panel Van) | 5 |
| Inflatable Restraint I/P Module Indicator | 6 |
| Radio/Navigation Unit | 7 |
| HVAC Control Assembly | 8 |
| Cigar Lighter (DT4)/Accessory Power Outlet I/P (without DT4) | 9 |
| Rear Wiper/Washer Switch | 10 |
| Fog Lamp Switch (T37 or T96) | 11 |
| Traction Control Switch | 12 |
| I/P Dimmer Switch | 13 |
| Steering Wheel Controls - Right (UK3) | 14 |
| Steering Wheel Controls - Left | 15 |
| Driver Rear Access Panel Switch - Left Rear Panel (Panel Van) | 16 |
| Driver Rear Access Panel Switch - Right Rear Panel (Panel Van) | 17 |
| Turn Signal/Multifunction Switch | 18 |
| Inflatable Restraint Steering Wheel Module | 19 |
| Instrument Panel Cluster (IPC) | 20 |
| WindshieldWiper/Washer Switch | 21 |
