Electrical Component Locator - Instrument Panel/Center Console Component Views
>>
Instrument Panel/Center Console Component Views
>>
Interior HVAC Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Interior HVAC Components
Interior HVAC Components
Component Name
Callout
HVAC Box Assembly
1
Blower Motor Resistor Assembly
2
Blower Motor
3
Recirculation Actuator
4
Mode Actuator
5
Air Temperature Actuator
6

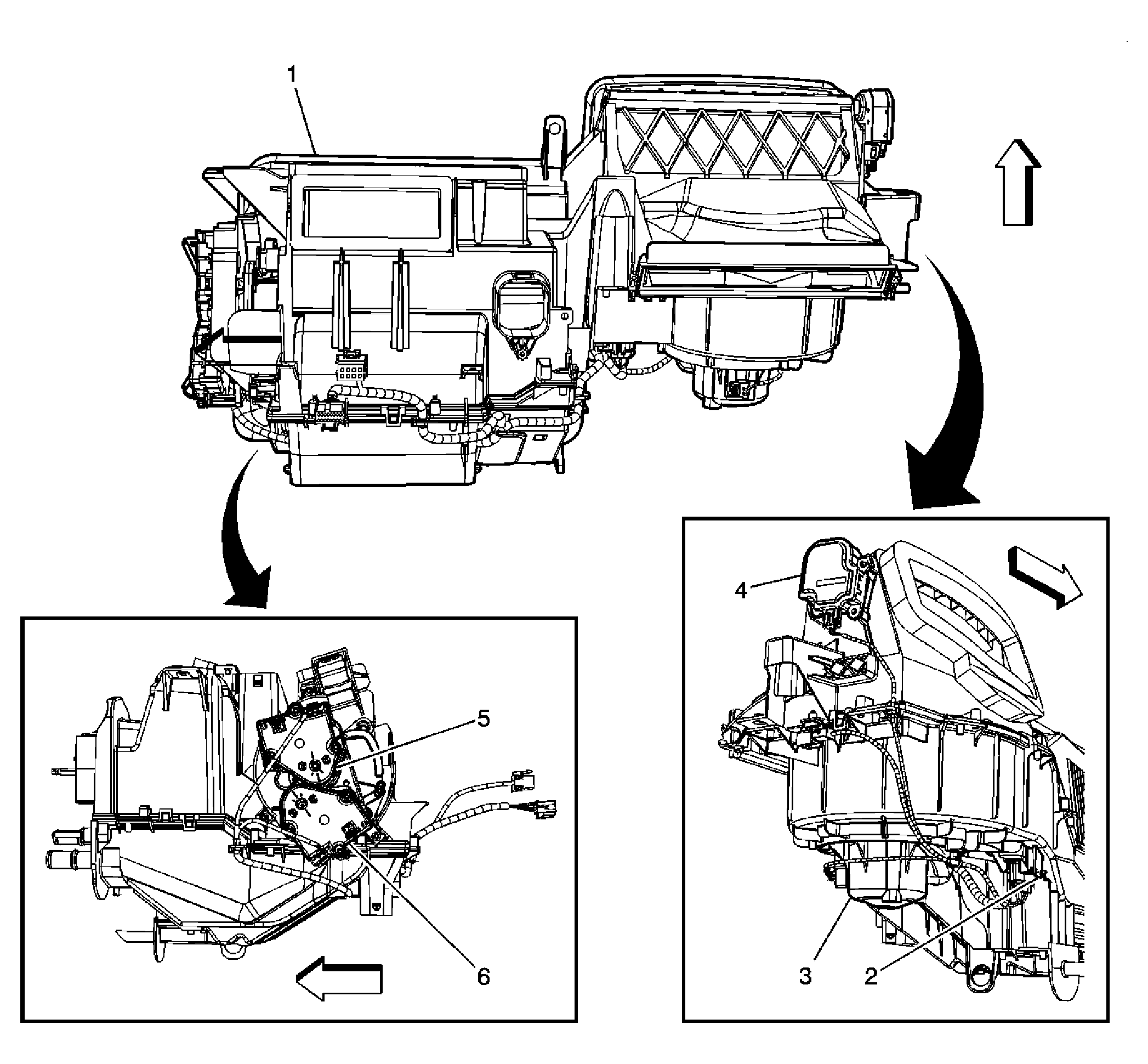

Fig 1: Interior HVAC Components
Courtesy of GENERAL MOTORS COMPANY
