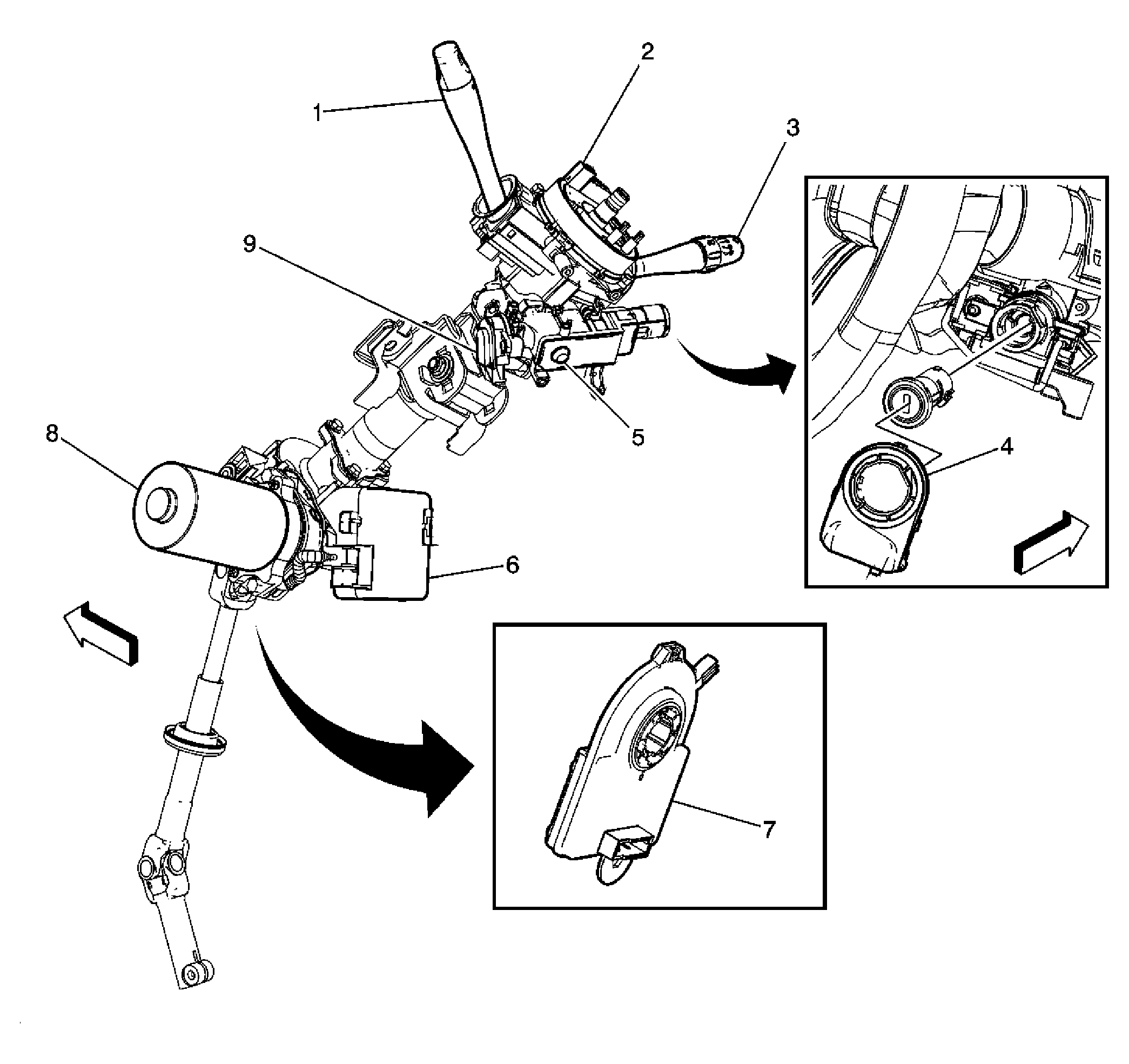

Steering Column Components
Steering Column Components
| Component Name | Callout |
|---|---|
| Turn Signal / Multifunction Switch | 1 |
| Inflatable Restraint Steering Wheel Module Coil | 2 |
| Windshield Wiper / Washer Switch | 3 |
| Theft Deterrent Control Module | 4 |
| Ignition Lock Control Actuator (MN5) | 5 |
| Power Steering Control Module (PSCM) | 6 |
| Steering Angle Sensor | 7 |
| Electronic Power Steering (EPS) Motor | 8 |
| Ignition Switch | 9 |
