Body Control Module Replacement

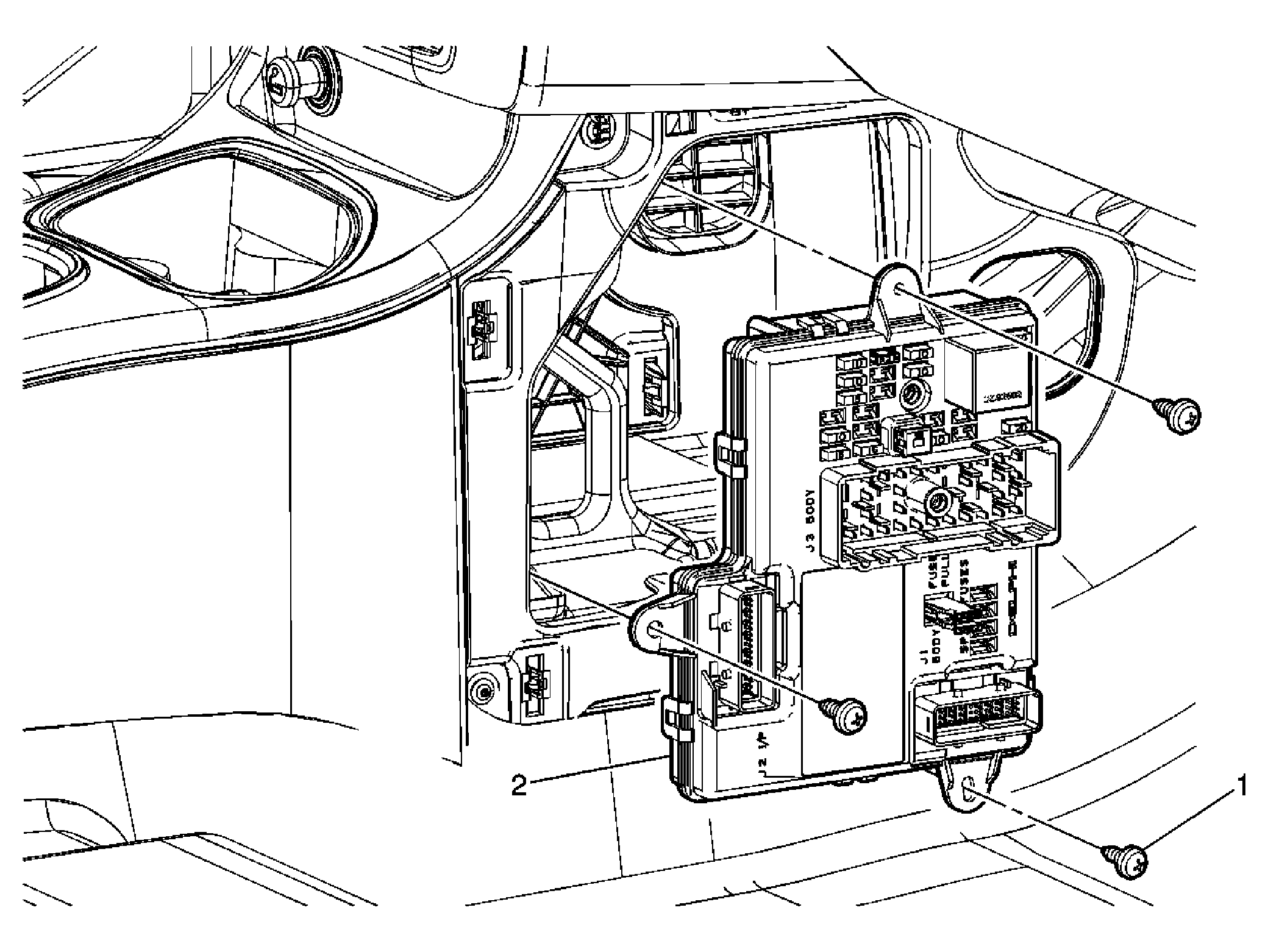

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right console extension panel. Refer to Front Floor Console Extension Replacement - Side .
1	Body Control Module Assembly Screw CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Body Control Module Assembly TIP: Reprogram the body control module (BCM) after replacement. Refer to Control Module References .
