Removal Procedure

  1. Lower the instrument panel (I/P) closeout panel. Refer to Instrument Panel Insulator Replacement .

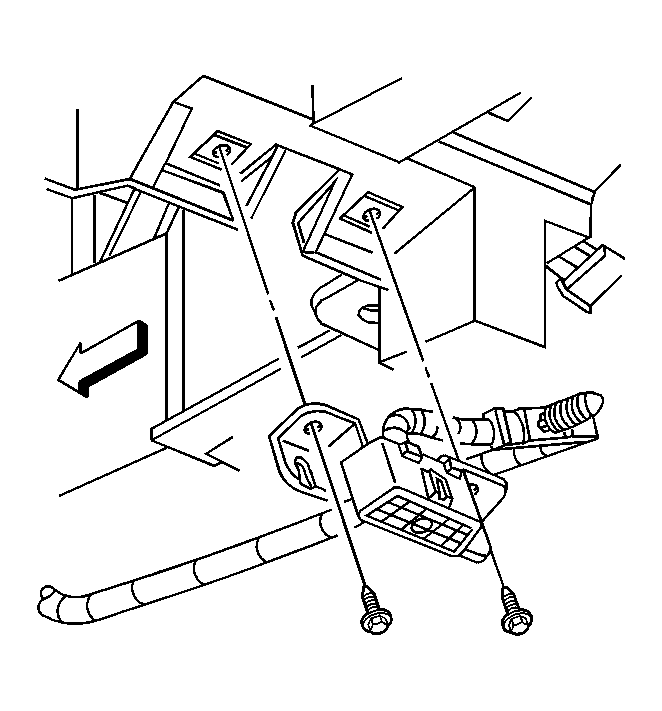

    2. Fig 1: View Of Data Link Connector
    GM700917Courtesy of GENERAL MOTORS COMPANY
  2. Remove the screws securing the data link connector (DLC) to the I/P carrier.
