Rearview Camera Image Display Module Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

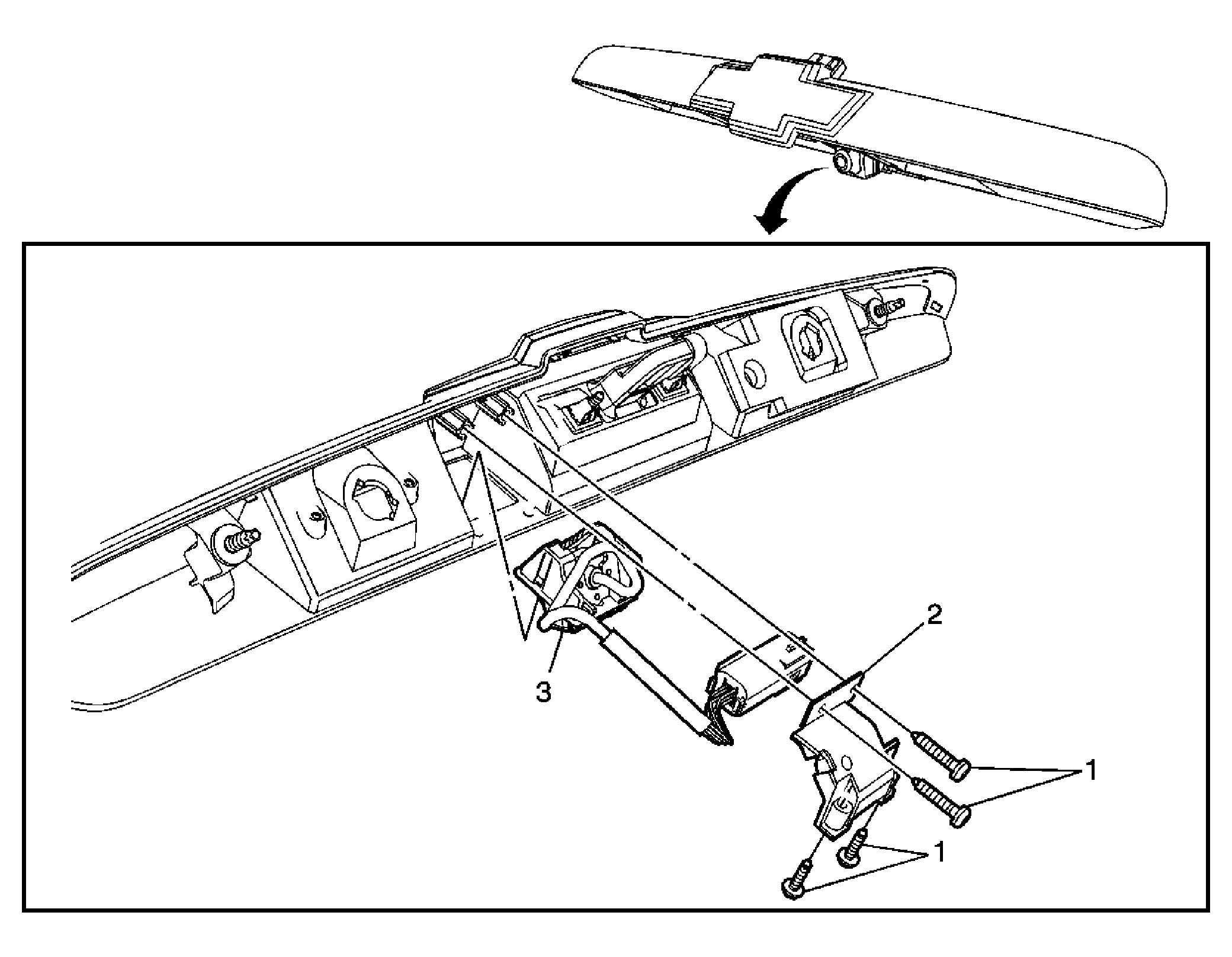

Fig 1: Rearview Camera Image Display Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate center applique. Refer to Liftgate Center Applique Replacement (w/o UVC) or Liftgate Center Applique Replacement (with UVC) .
1	Rearview Camera Bracket Bolts (Qty 4) CAUTION: Refer to Fastener Caution .
2	Rearview Camera Bracket
3	Rearview Camera Procedure Disconnect the electrical connector. Depress the tabs and push outward to remove the rearview camera from the applique.
