Child Restraint Tether Anchor Replacement

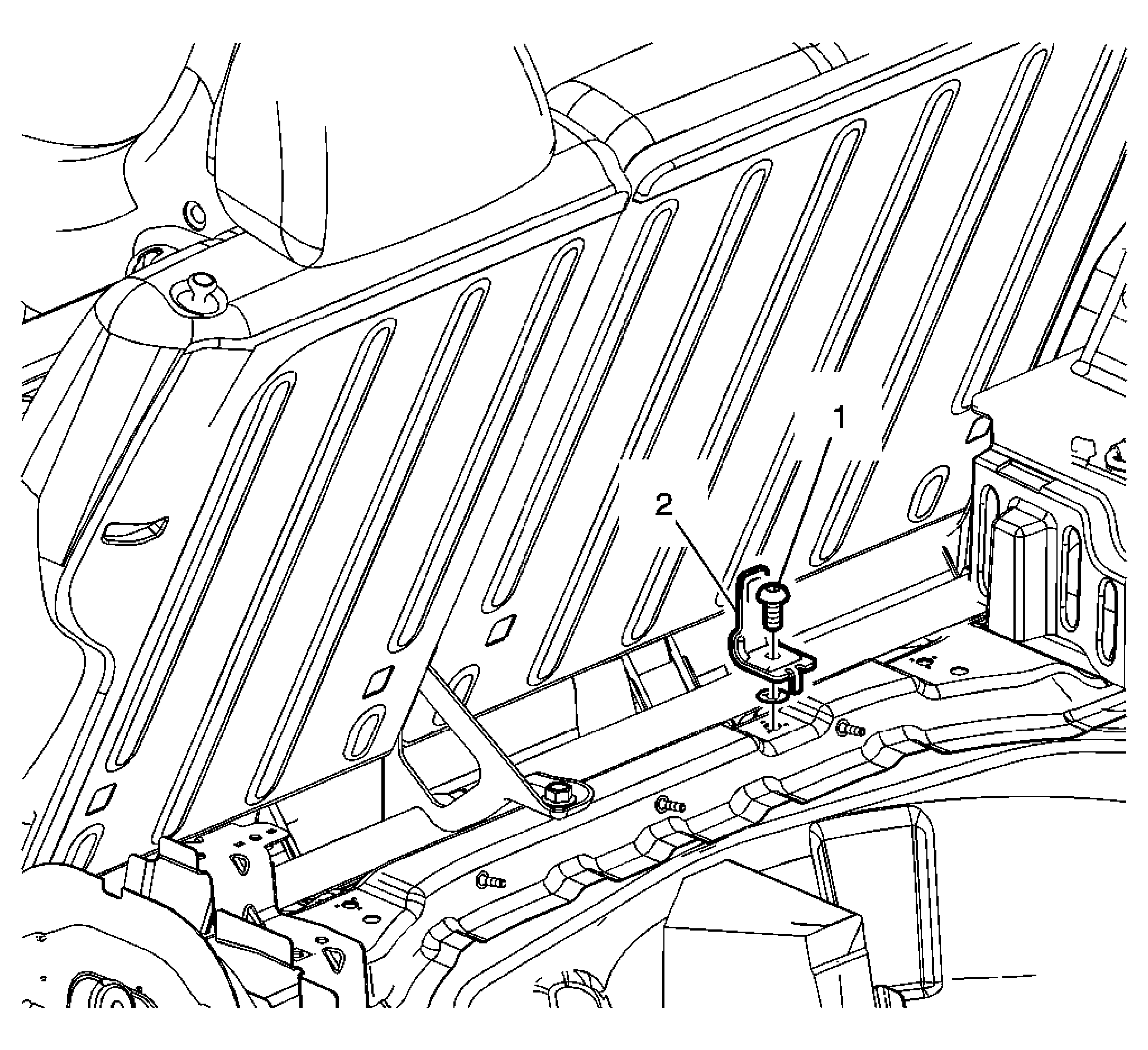

Fig 1: Child Restraint Tether Anchor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear floor trim plate. Refer to Rear Floor Trim Plate Replacement .
1	Child Seat Restraint System Bracket Bolt CAUTION: Refer to Fastener Caution . TIP: Lean seat backs forward to allow easier access to fasteners. Tighten 40 N.m (30 lb ft)
2	Child Seat Restraint System Bracket
