Rear Seat Belt Intermediate Guide Replacement

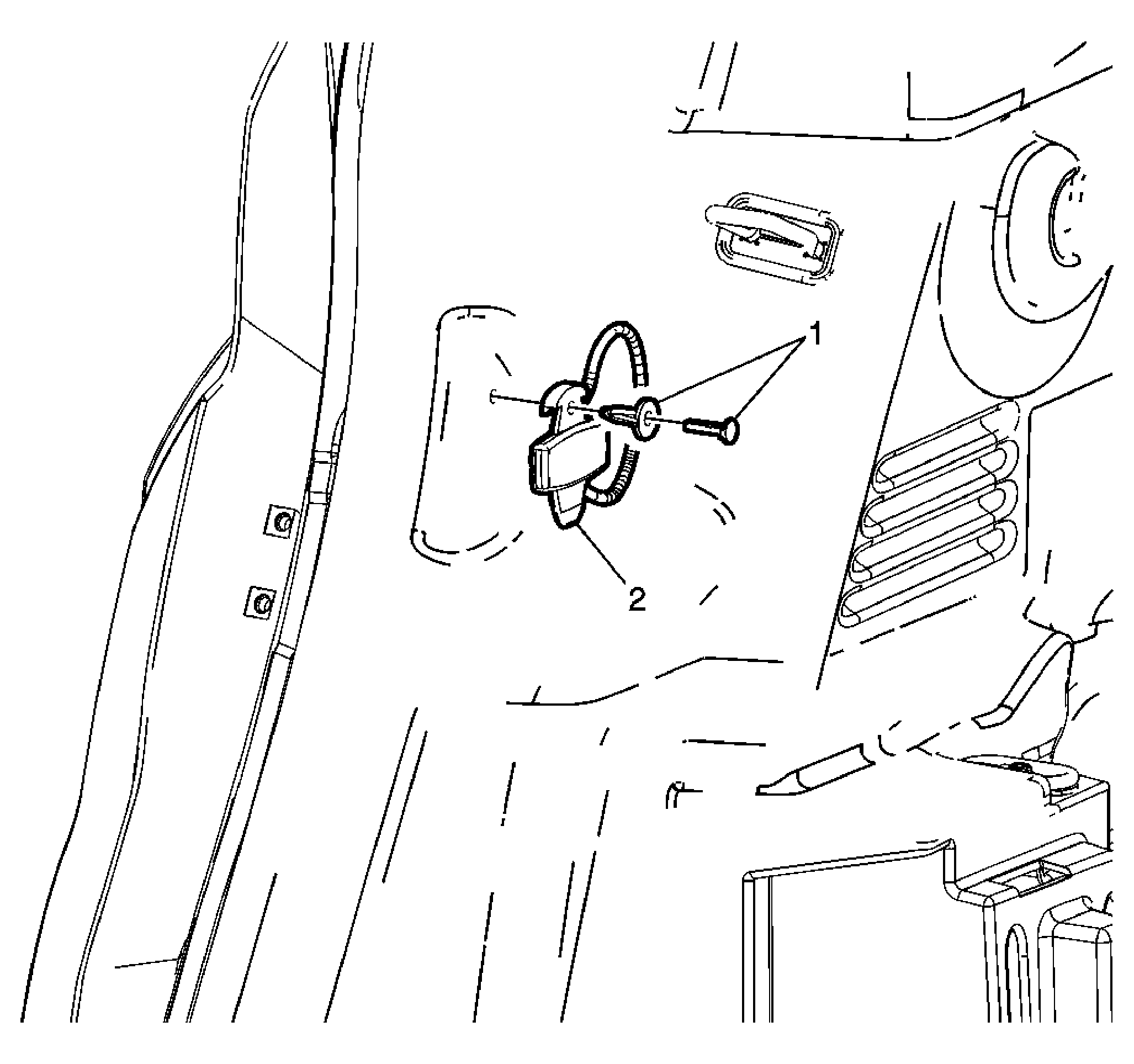

Fig 1: Rear Seat Belt Intermediate Guide
GM1644058Courtesy of GENERAL MOTORS COMPANY
Rear Seat Belt Intermediate Guide Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Rear Seat Shoulder Belt Guide Strap Retainer
TIP:  Fold the seat back forward to allow easier access to the fastener.
2 Rear Seat Shoulder Belt Guide Strap
