MN5 Wiring Schematics

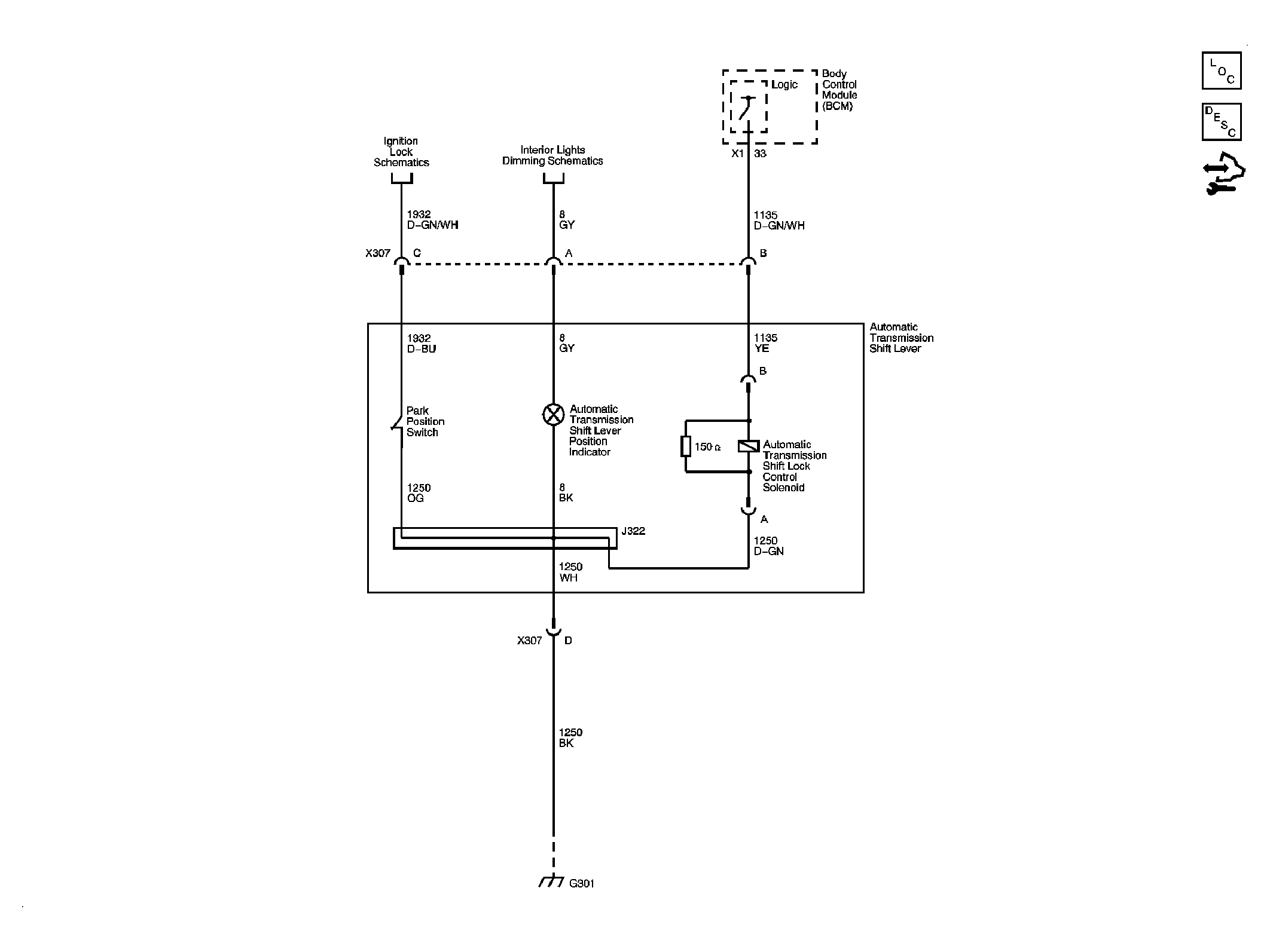

Fig 1: MN5 Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
