Removal Procedure

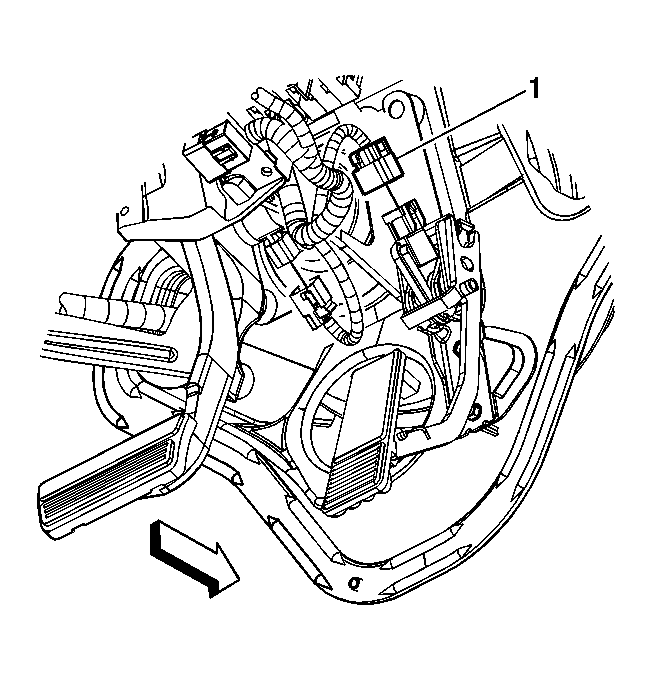

    Fig 1: Identifying APP Sensor Electrical Connector
    GM1618756Courtesy of GENERAL MOTORS CORP.
  1. Remove the left instrument panel (I/P) sound insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
  2. Disconnect the accelerator pedal position (APP) sensor electrical connector (1).

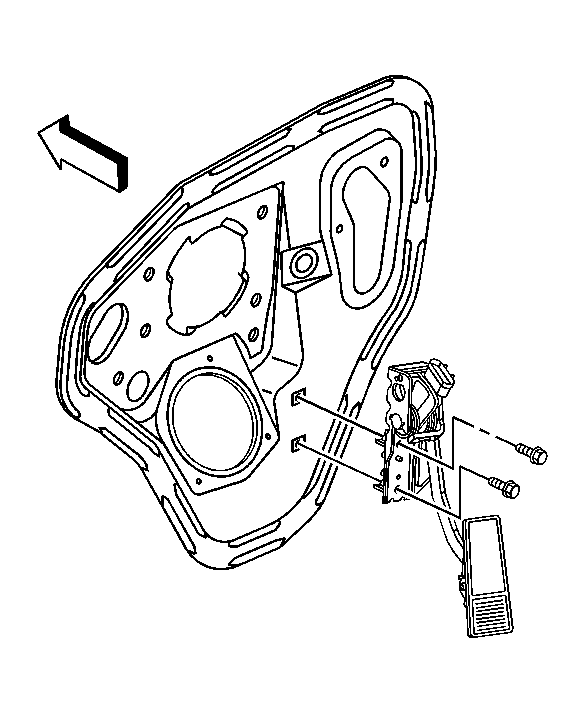

    3. Fig 2: View Of APP Sensor Assembly
    GM1618780Courtesy of GENERAL MOTORS CORP.
  3. Remove the APP sensor assembly bolts.
  4. Remove the APP sensor assembly from the vehicle.
