Installation Procedure

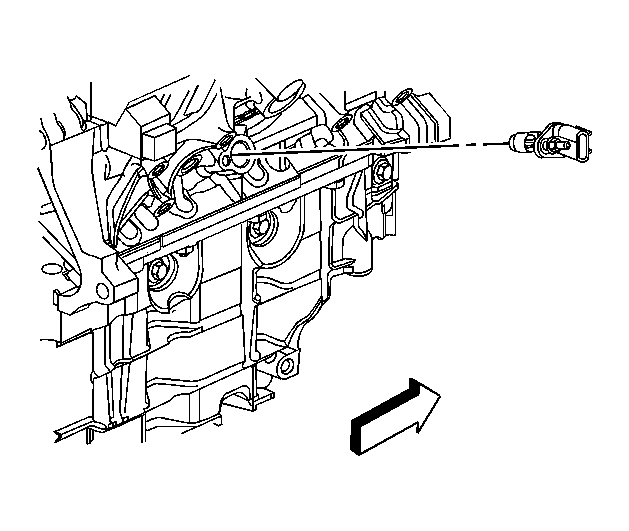

    Fig 1: View Of CKP Sensor
    GM1587763Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CKP sensor O-ring with clean engine oil.
  2. Install the CKP sensor.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the CKP sensor stud and tighten to 10 N.m (89 lb in).

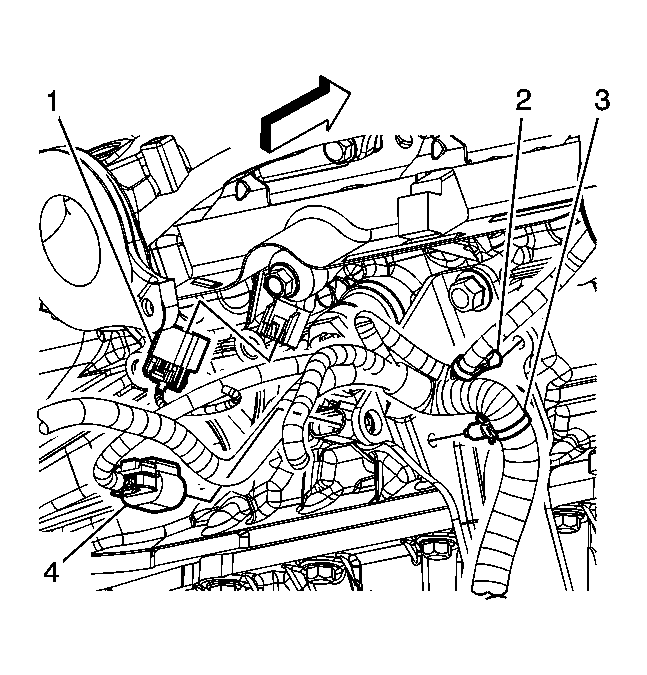

    4. Fig 2: Locating CKP Sensor Electrical Connector
    GM1612884Courtesy of GENERAL MOTORS CORP.
  4. Connect the CKP sensor electrical connector (4).
  5. Lower the vehicle.
