Fuel Tank Pressure Sensor Replacement

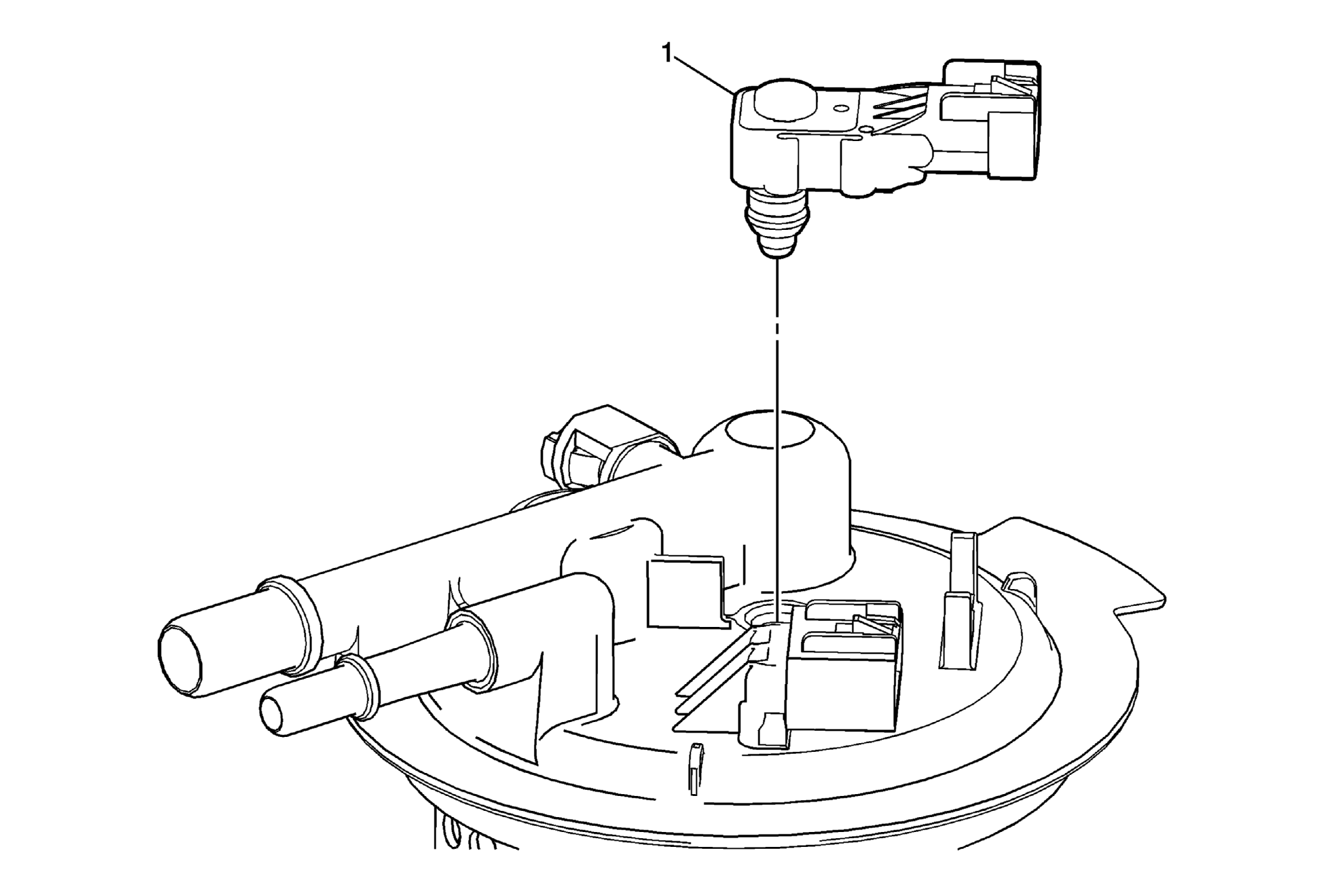

Fig 1: Identifying Fuel Tank Pressure Sensor
GM2037421Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Pressure Sensor
Procedure:
Disconnect the electrical connector.
