Body Control System Wiring Schematics

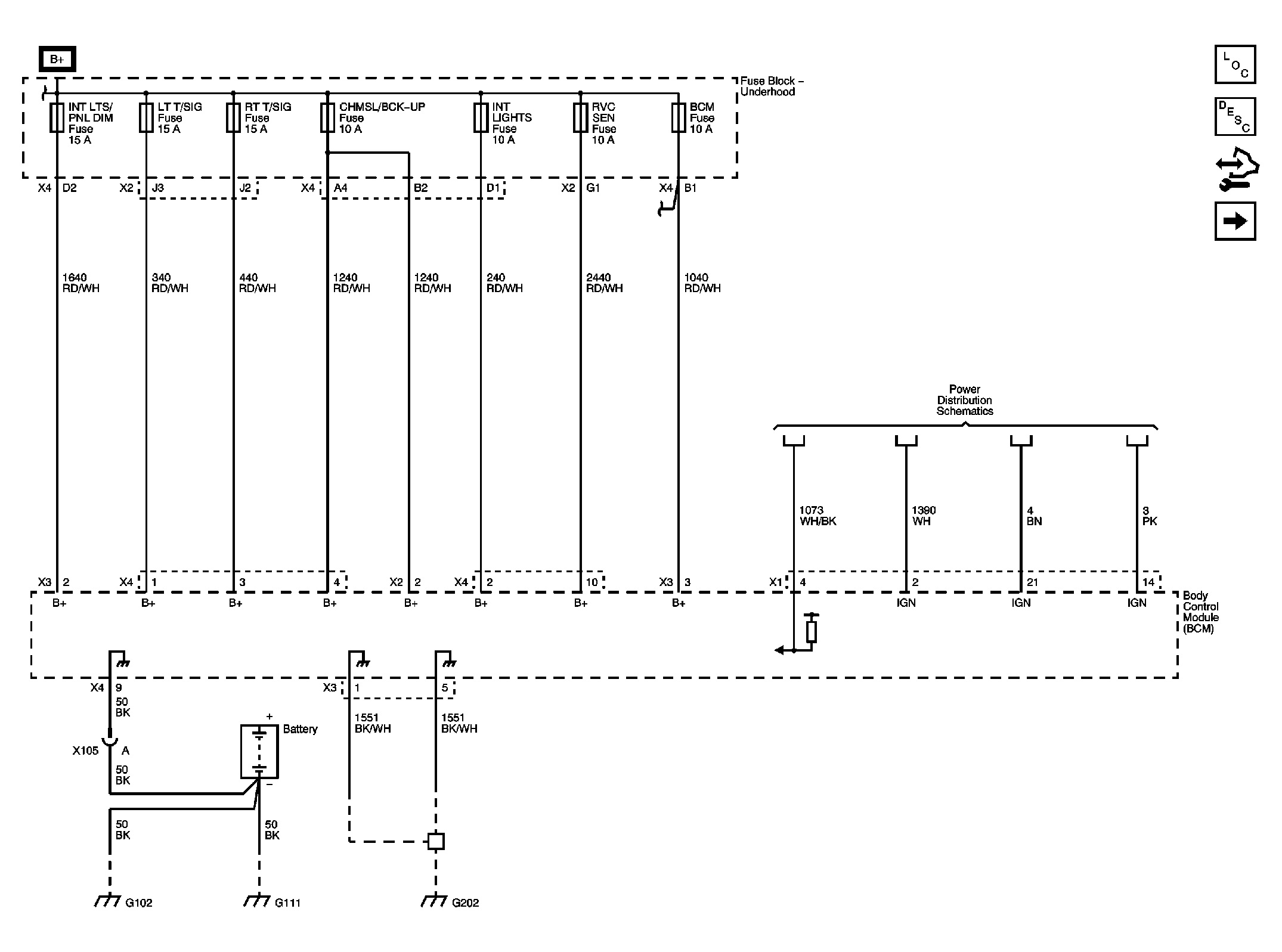

Fig 1: Power And Ground Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

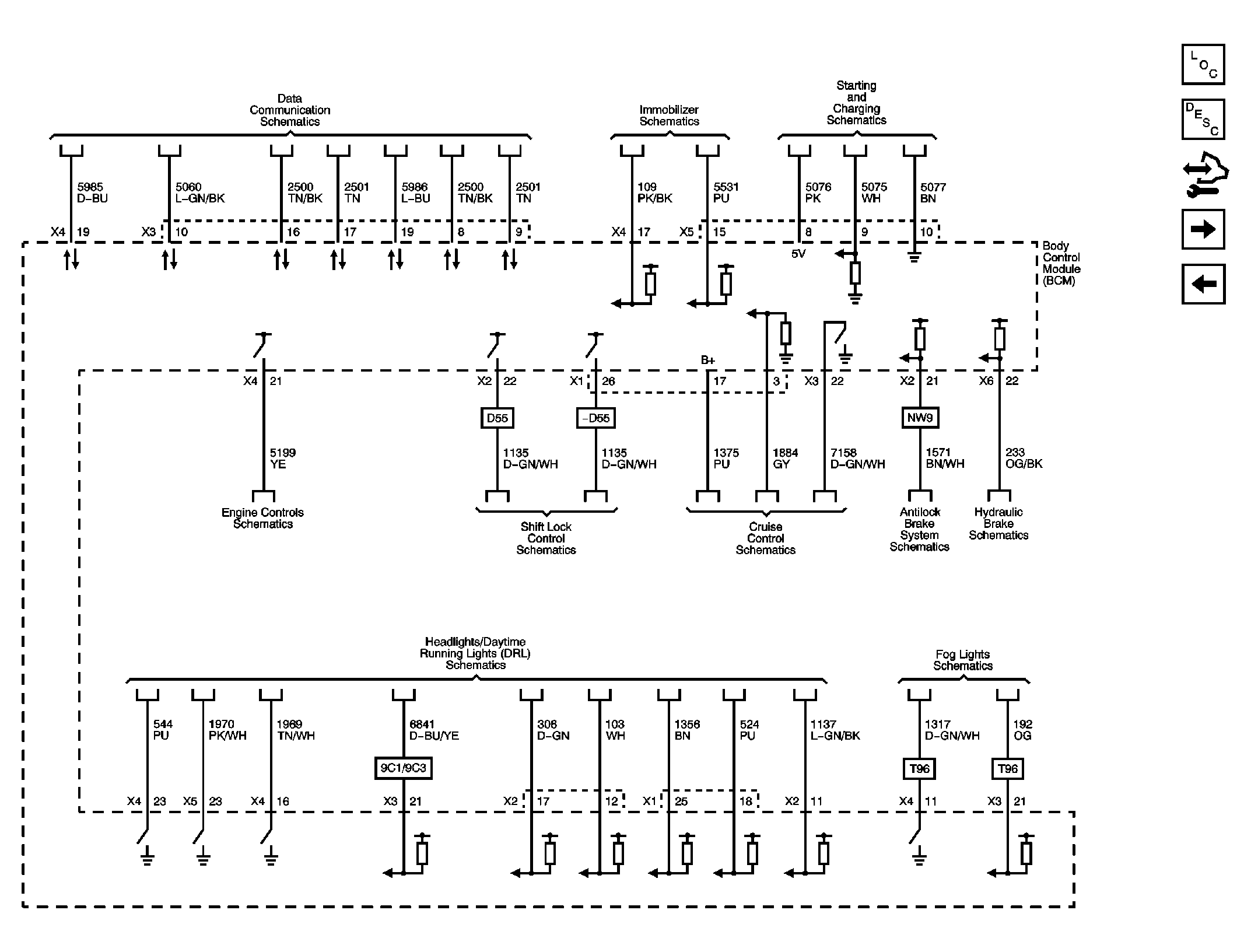

Fig 2: Data Link, Starting And Charging, Engine Controls, AT Shift Lock Controls, Cruise Control, ABS, Brake Warning, Headlights/DRL And Fog Lights References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

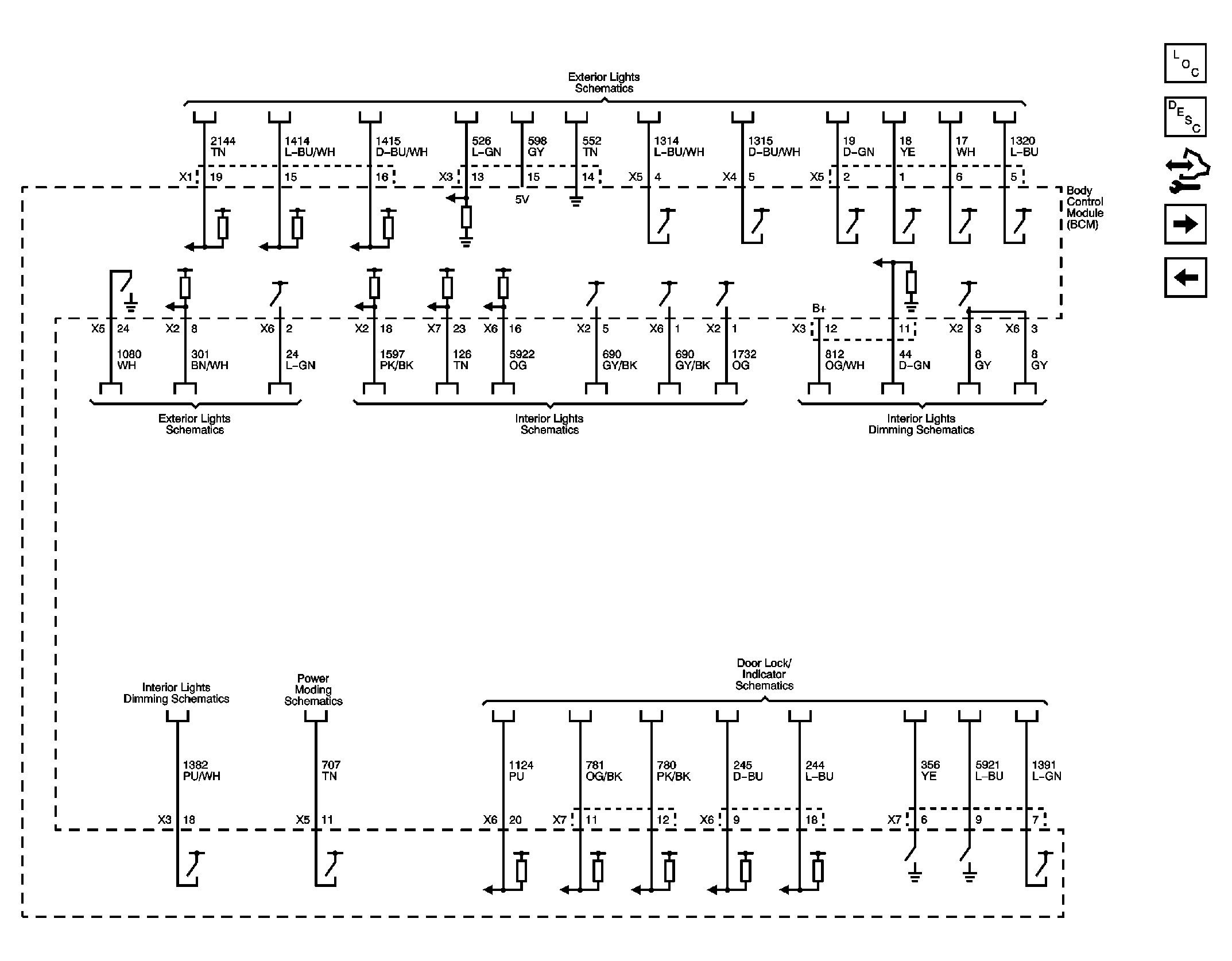

Fig 3: Exterior Lights, Interior Lights, Interior Lights Dimming And Door Lock/Indicator References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

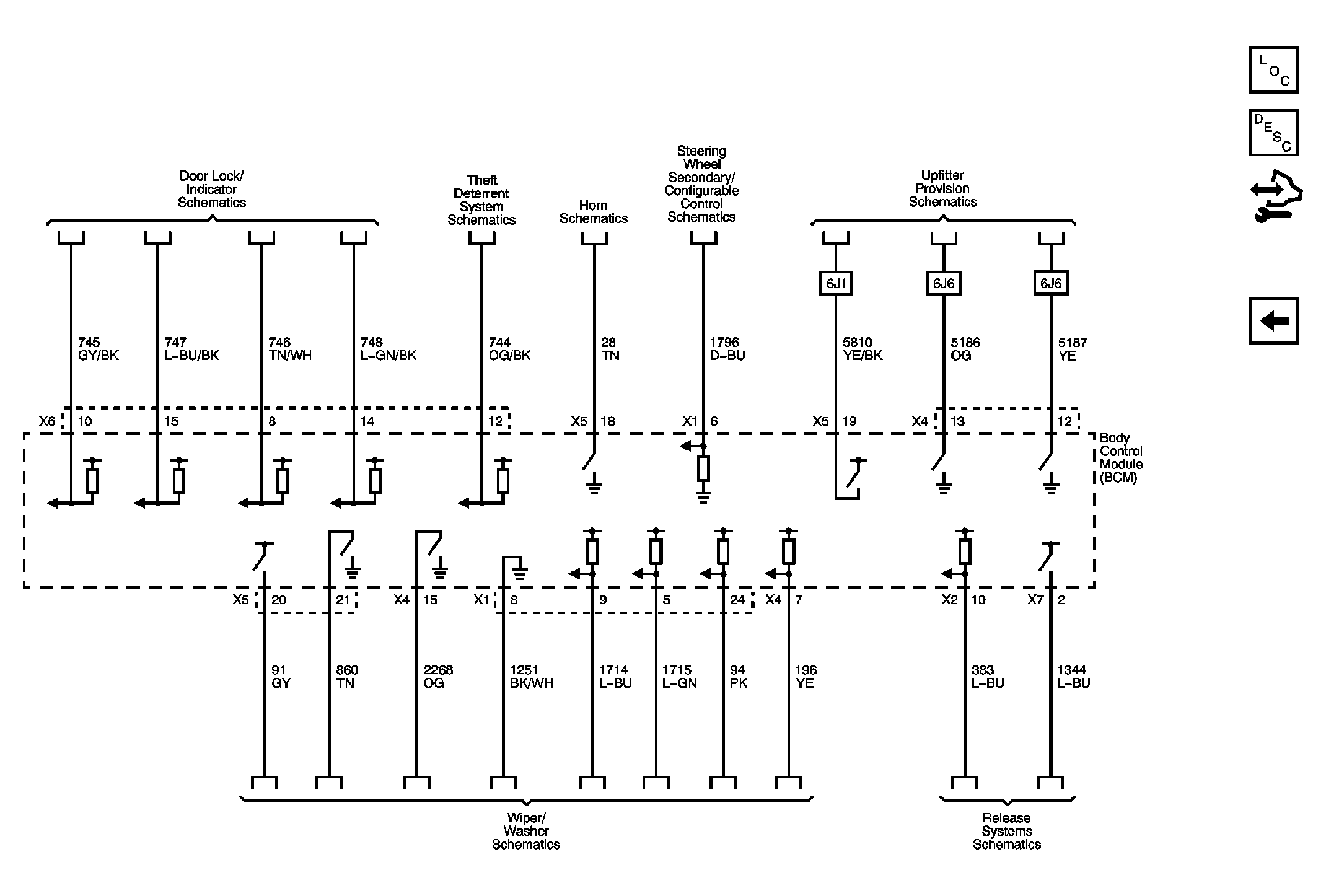

Fig 4: Door Lock/Indicator Cont, Theft Deterrent, Horns, Steering Wheel, Upfitter Provisions, Wiper/Washer And Release System References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
