Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

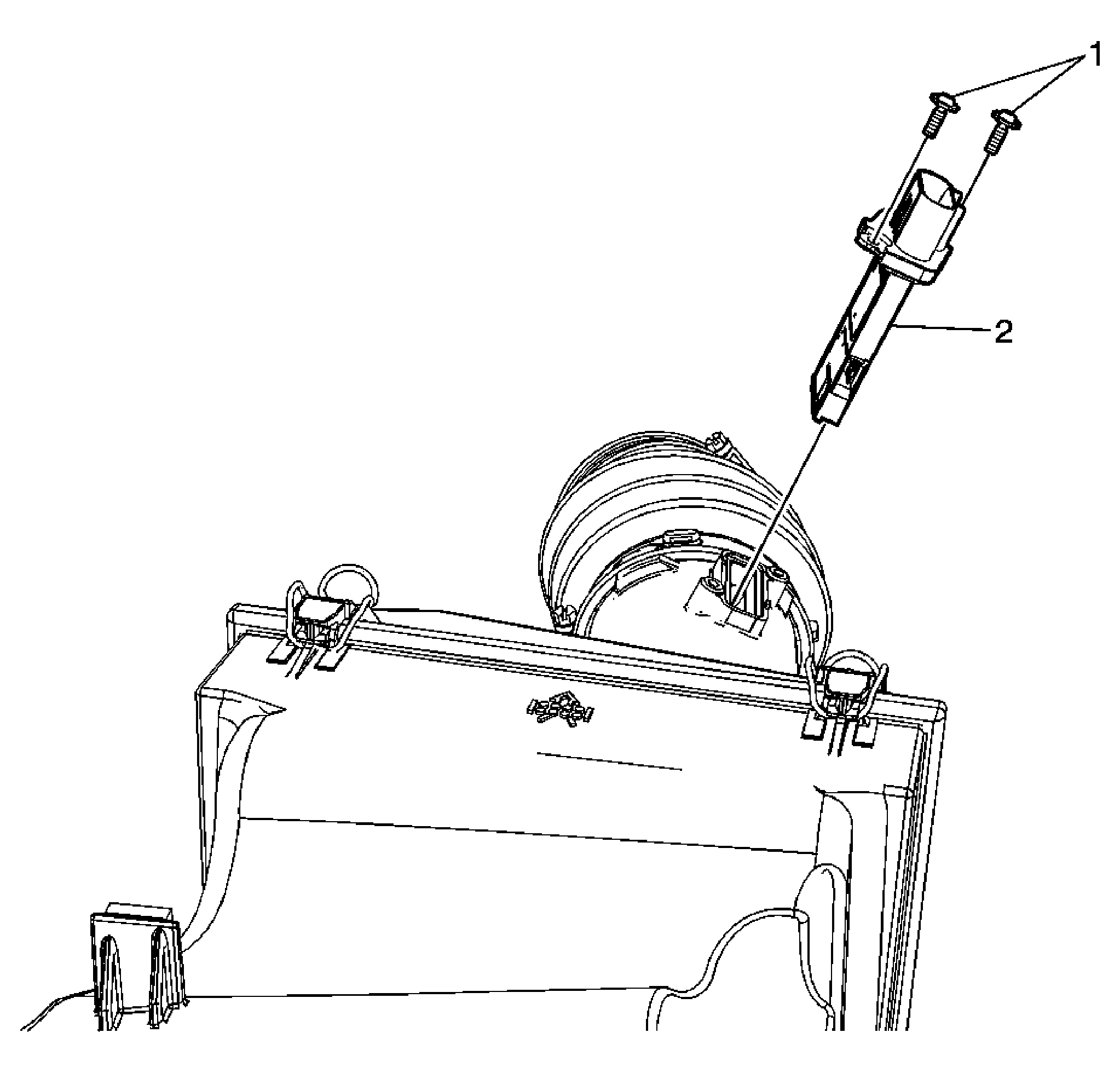

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Airflow Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	Mass Airflow Sensor with Intake Air Temperature Sensor Procedure:  Disconnect the electrical connector.
