DVD Player




Component Connector End Views

Digital Video Disc (DVD) Control Module X1 (SPO Accessory)





Digital Video Disc (DVD) Control Module X2 (SPO Accessory)





Digital Video Disc (DVD) Control Module X3 (SPO Accessory)

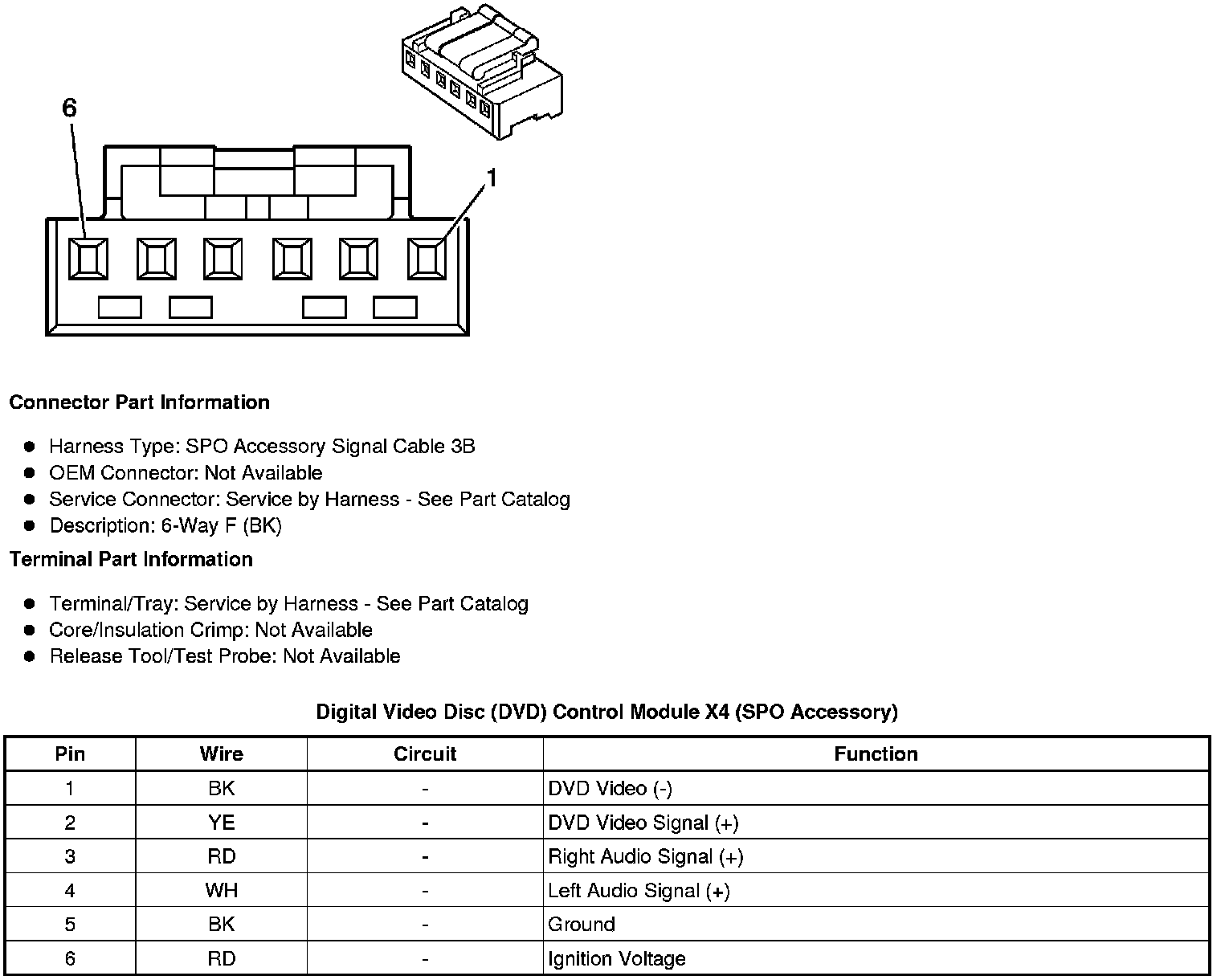

Digital Video Disc (DVD) Control Module X4 (SPO Accessory)





Digital Video Disc (DVD) Control Module X5 (SPO Accessory)





Digital Video Disc (DVD) Control Module X6 (SPO Accessory)
