Door Locks




Component Connector End Views

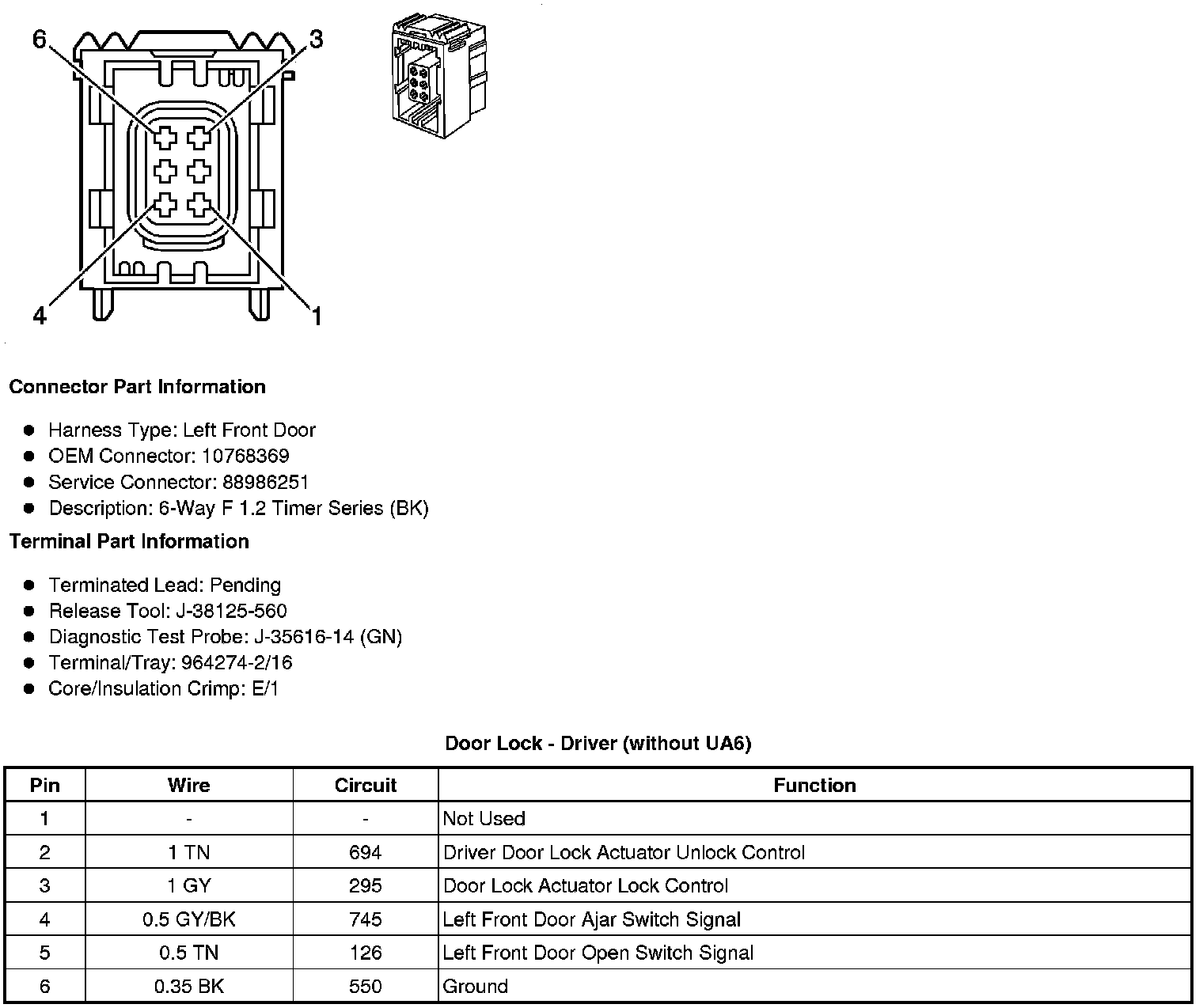

Door Lock - Driver (without UA6)

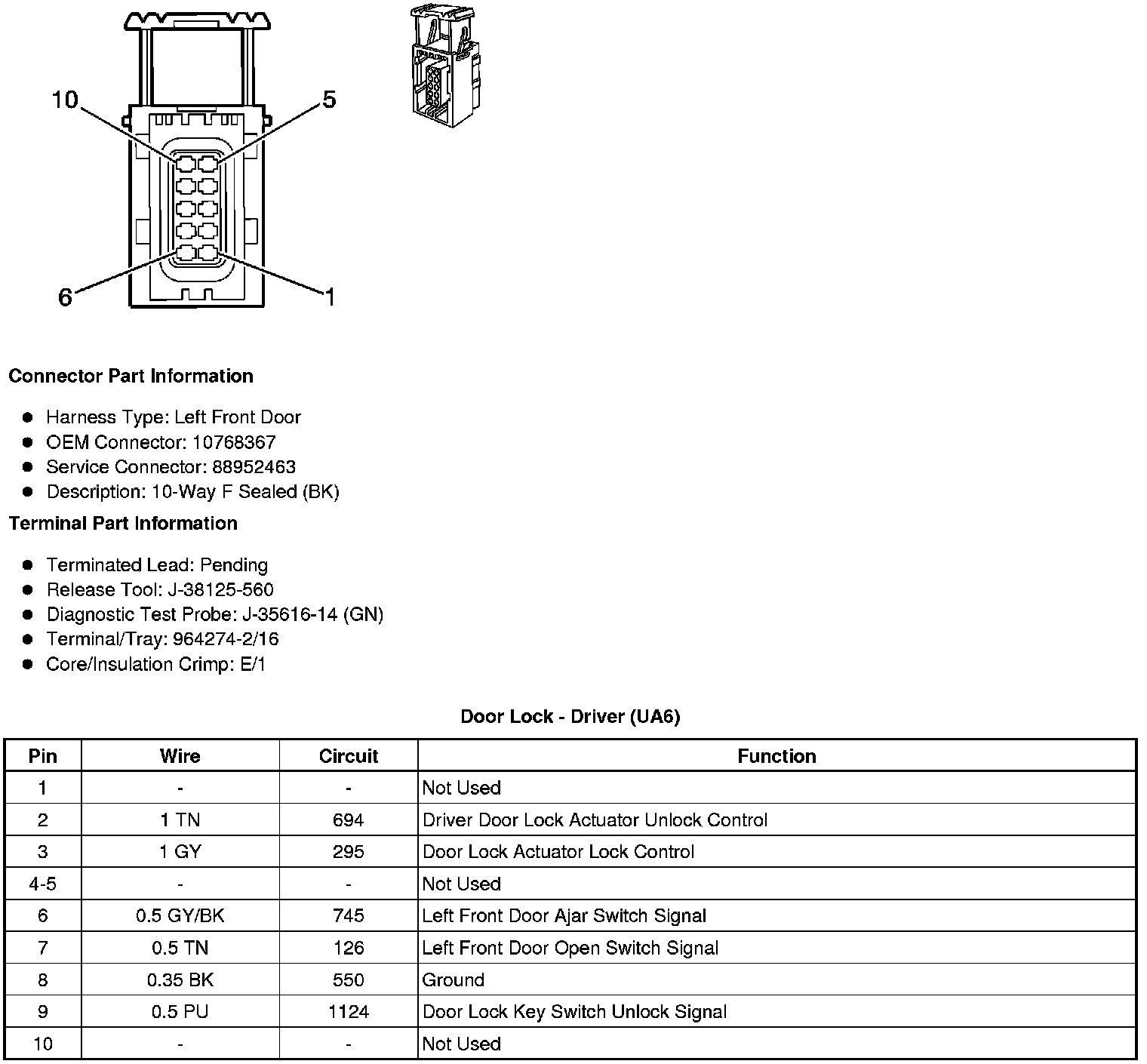

Door Lock - Driver (UA6)

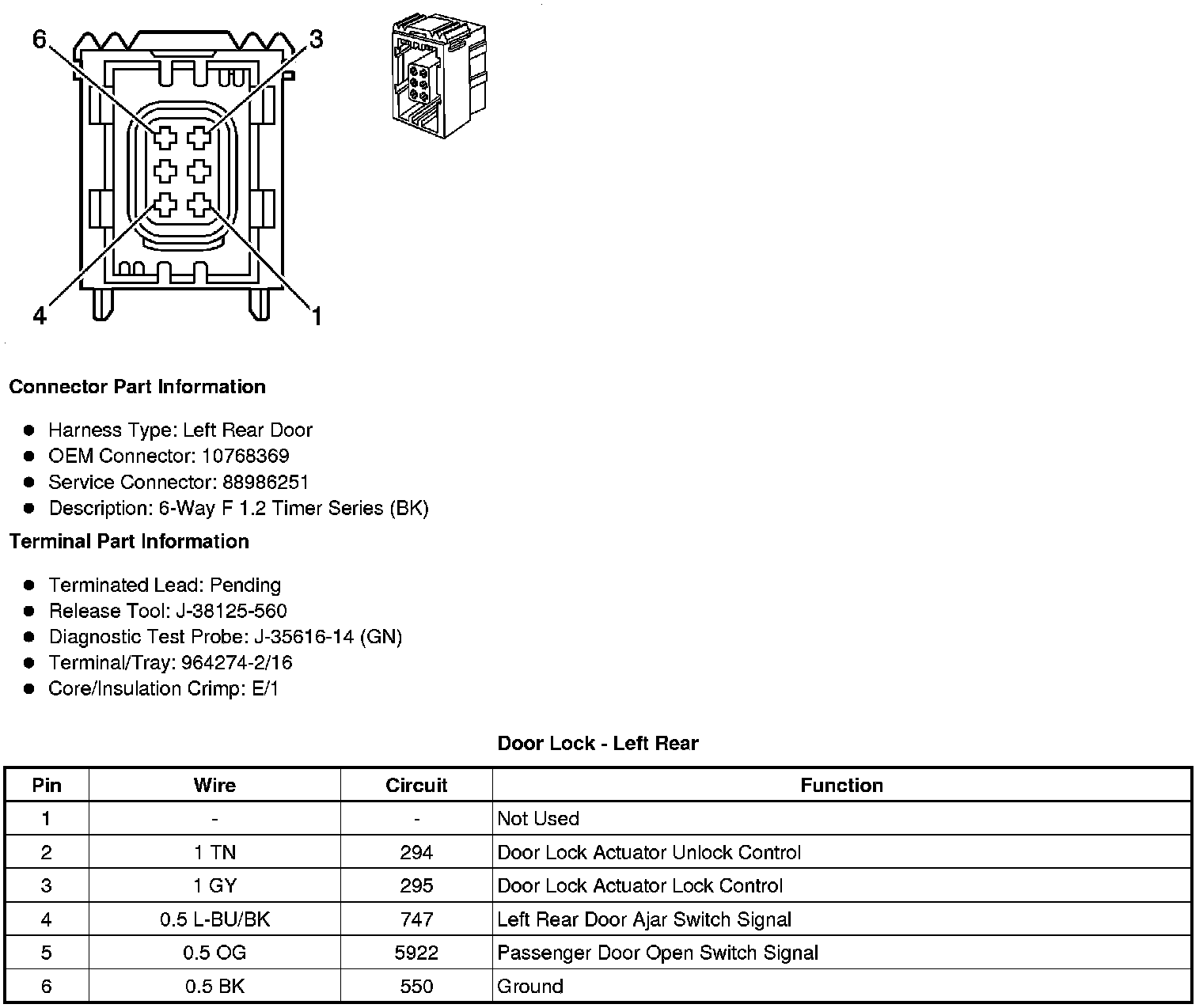

Door Lock - Left Rear

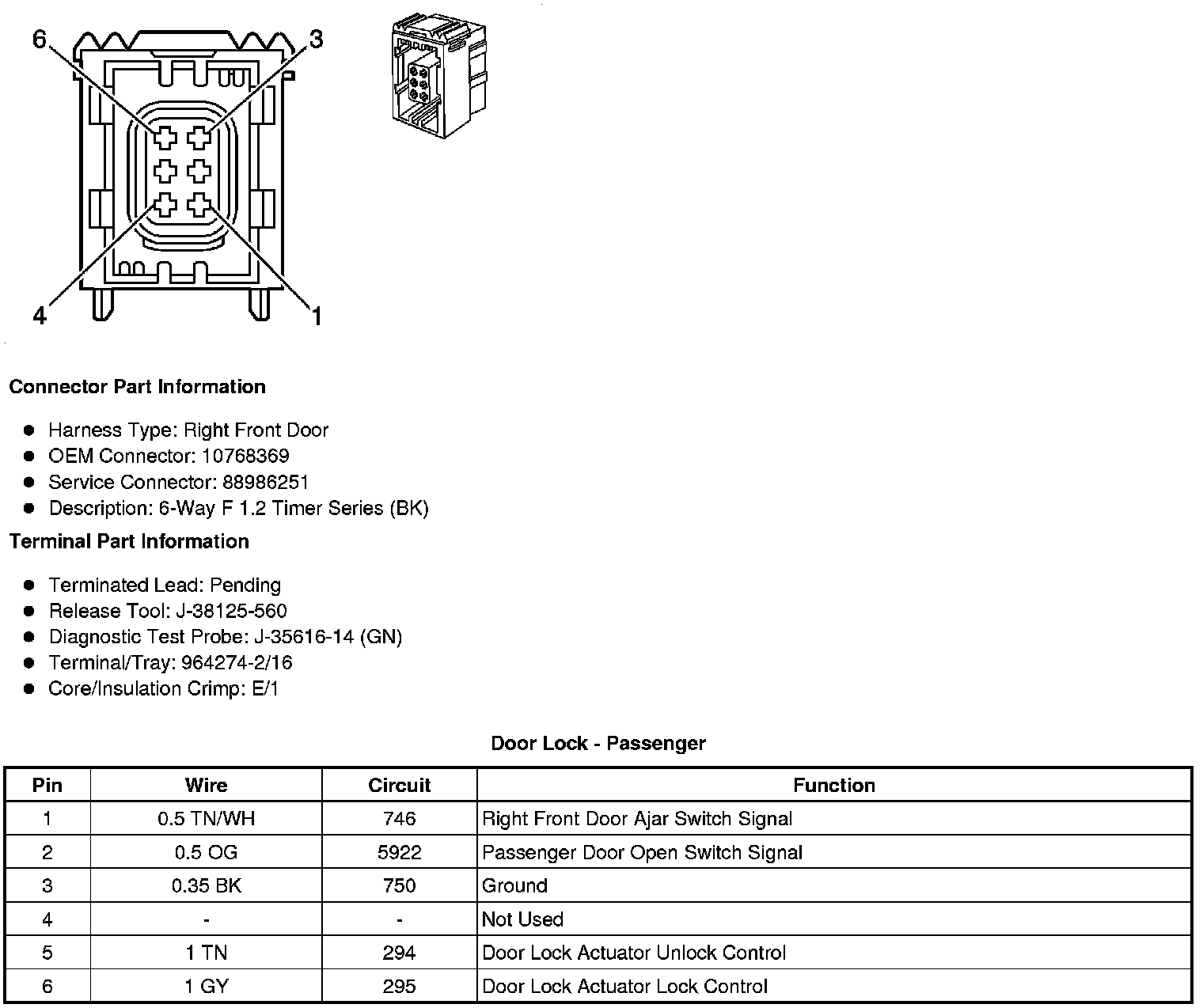

Door Lock - Passenger





Door Lock - Right Rear
