Component Location

Component Location

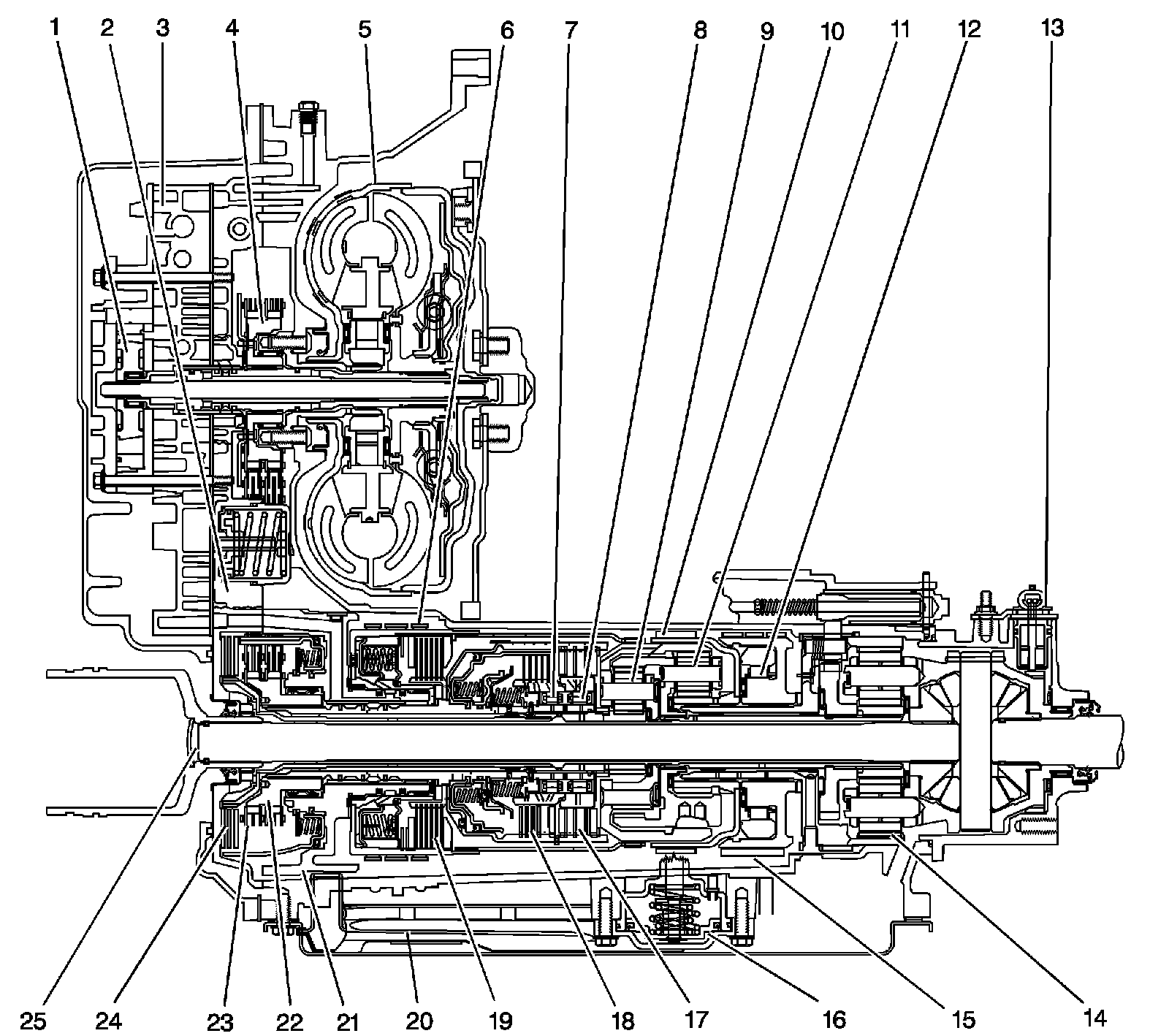

Transmission Major Components




1 - Oil Pump Assembly
2 - Case Cover Assembly
3 - Control Valve Body Assembly
4 - Drive Sprocket
5 - Torque Converter Assembly
6 - Reverse Band Assembly
7 - Third Clutch Pawl Assembly
8 - Input Clutch Pawl Assembly
9 - Input Carrier Assembly
10 - 2-1 Manual Band Assembly
11 - Reaction Carrier Assembly
12 - 1/2 Support Roller Clutch Assembly
13 - Vehicle Speed Sensor Assembly
14 - Final Drive/Differential Carrier Assembly
15 - Forward Band Assembly
16 - 2-1 Manual Band Servo Assembly
17 - Input Clutch Assembly
18 - Third Clutch Assembly
19 - Second Clutch Assembly
20 - Oil Filter Assembly
21 - Driven Sprocket Support Assembly
22 - Driven Sprocket
23 - Drive Link Assembly
24 - Fourth Clutch Assembly
25 - Output Shaft
