Body Control Module: Locations

Harness Routing Views

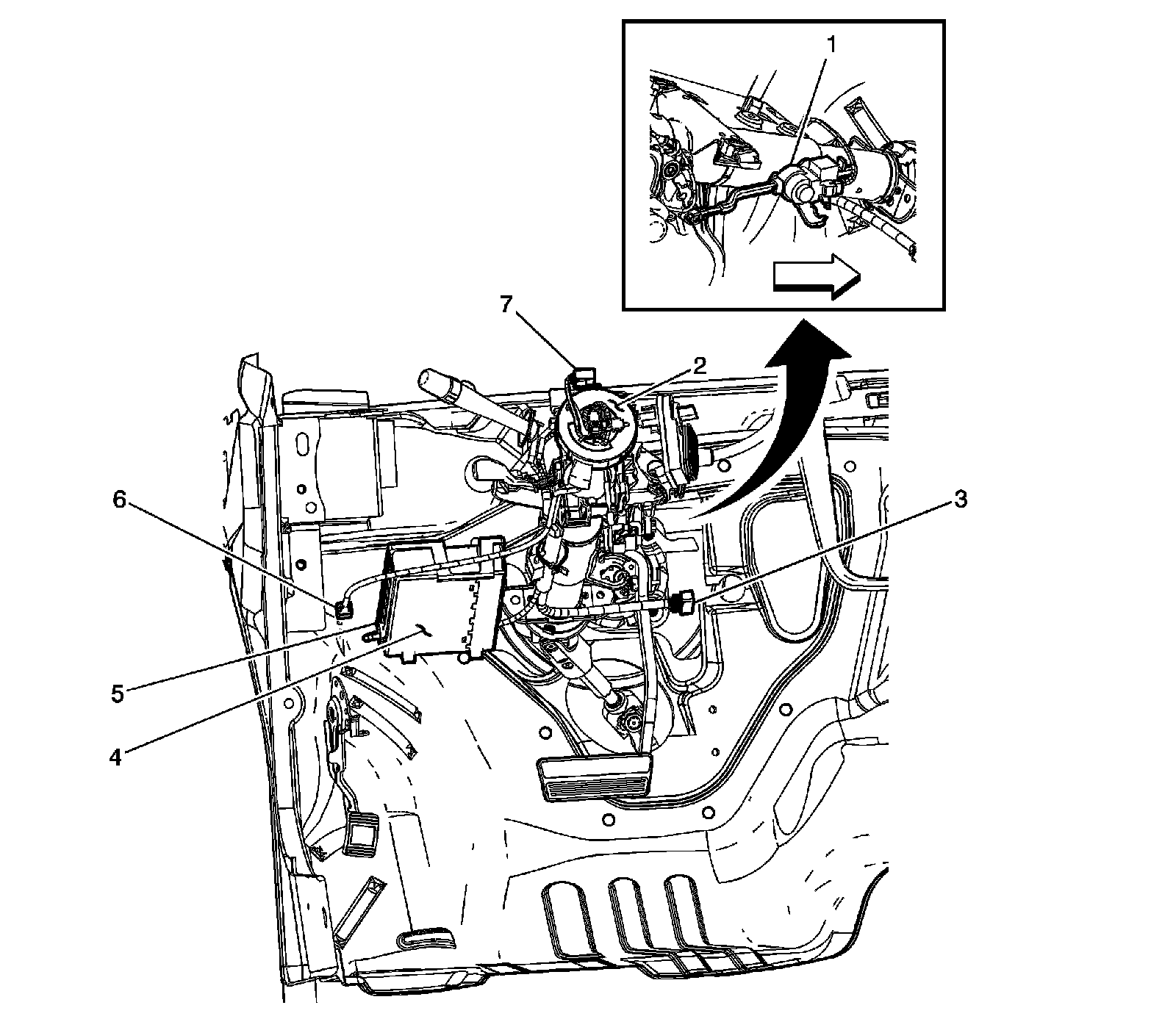

Instrument Panel Harness Routing - Lower Left




1 - Ignition Lock Cylinder Control Actuator
2 - Inflatable Restraint Steering Wheel Module Coil
3 - X201
4 - Body Control Module (BCM)
5 - Body Control Module (BCM) X1
6 - X250
7 - X277
