Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

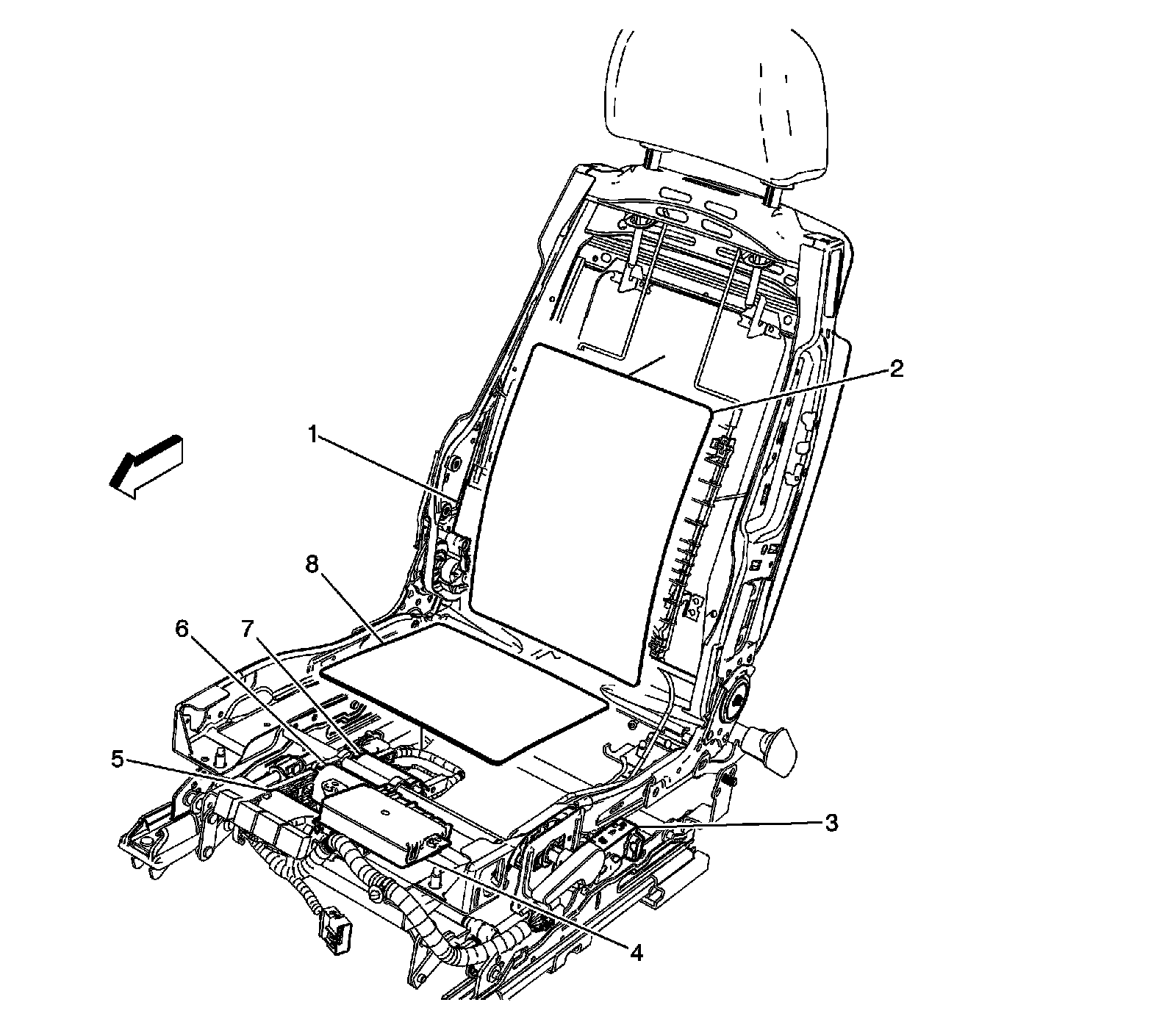

Driver Seat Components




1 - Seat Recline Motor - Driver (AH5)
2 - Heated Seat Element - Driver Back (KA1)
3 - Seat Adjuster Switch - Driver (AG1 or AH5)
4 - Heated Seat Control Module (KA1)
5 - Horizontal Motor (Part of the Seat Adjuster Motor Assembly - Driver) (AG1 or AH5)
6 - Front Vertical Motor (Part of the Seat Adjuster Motor Assembly - Driver) (AG1 or AH5)
7 - Rear Vertical Motor (Part of the Seat Adjuster Motor Assembly - Driver) (AG1 or AH5)
8 - Heated Seat Element - Driver Cushion (KA1)
