Central Control Module




Component Connector End Views

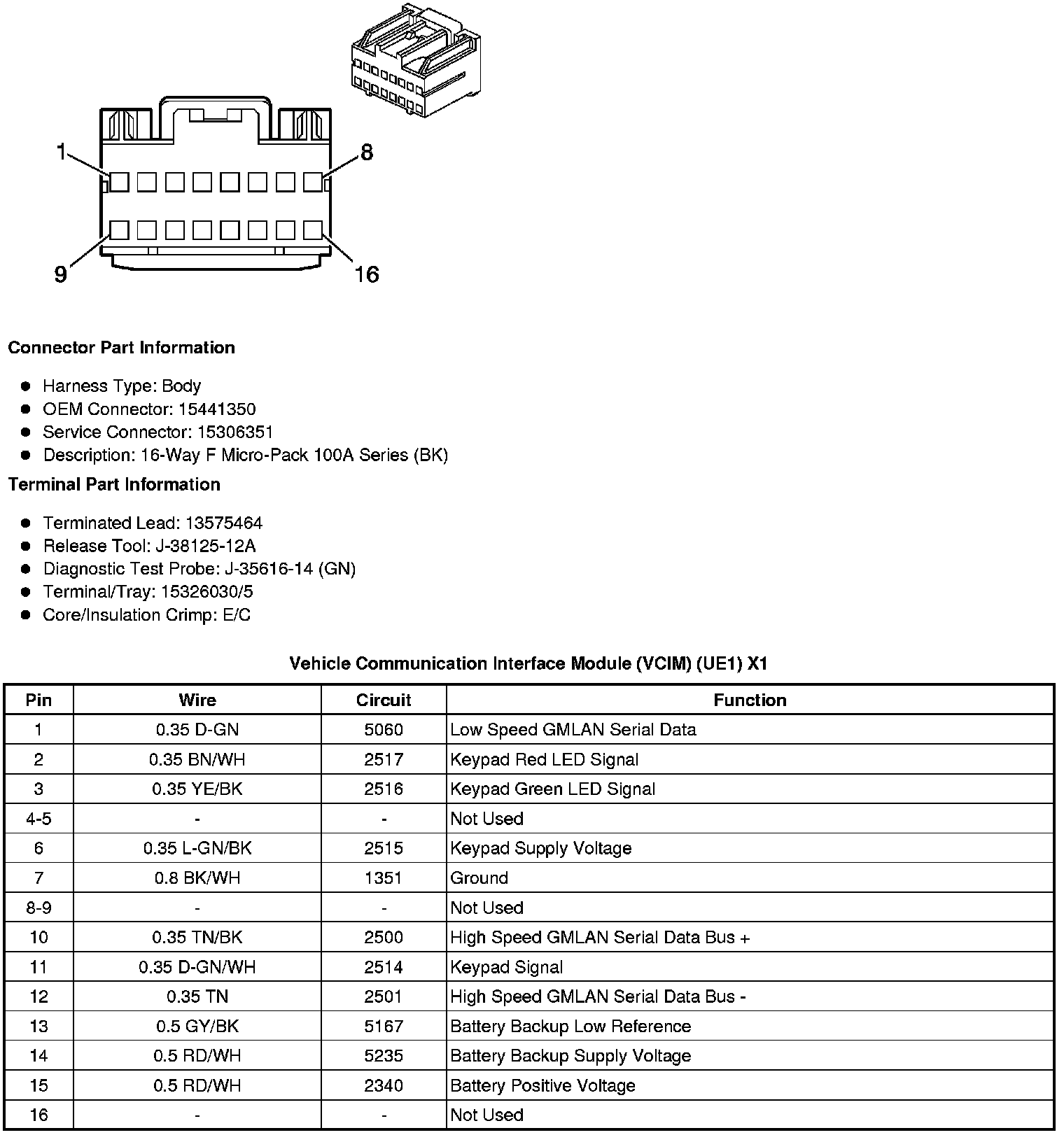

Vehicle Communication Interface Module (VCIM) (UE1) X1

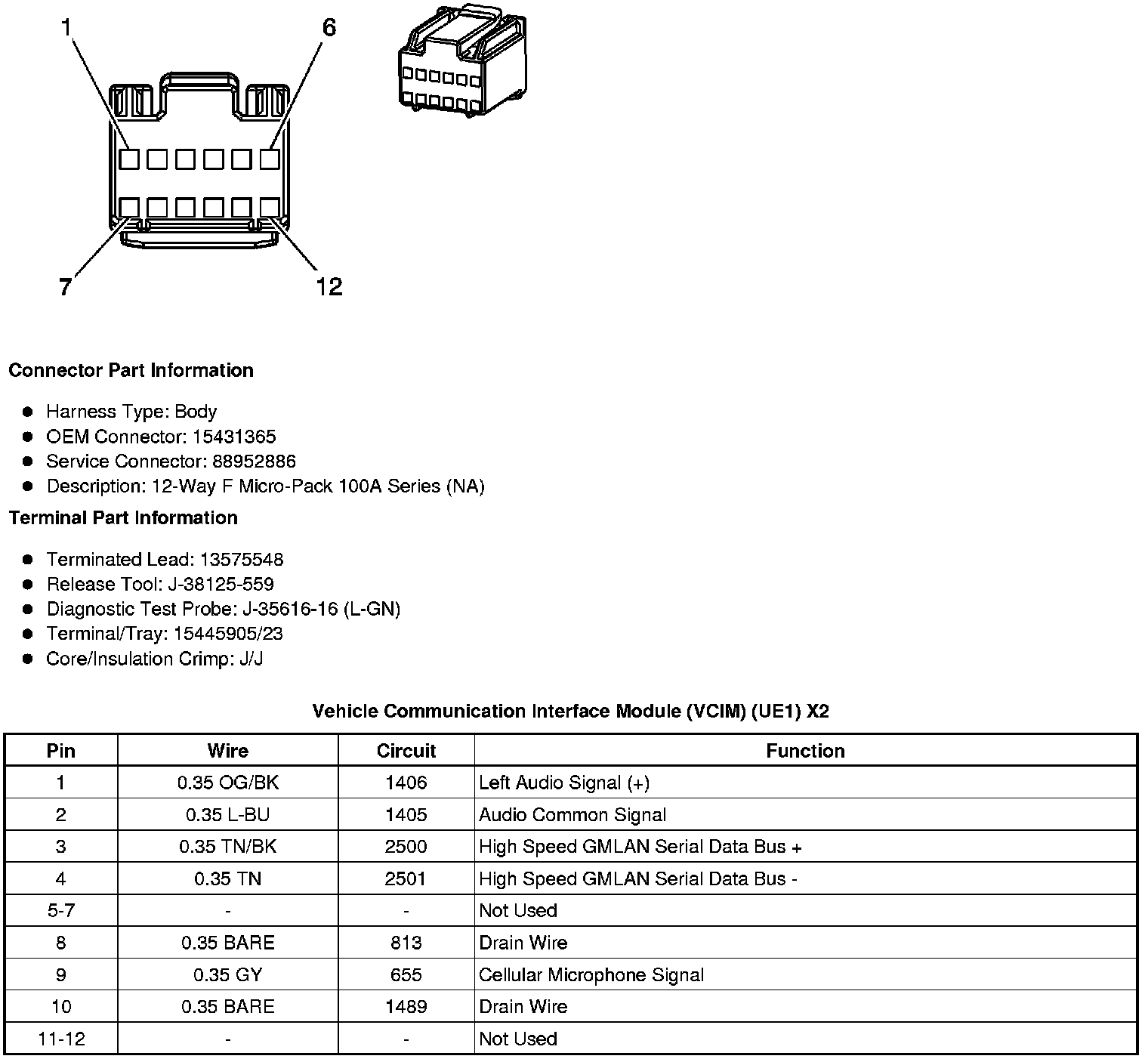

Vehicle Communication Interface Module (VCIM) (UE1) X2
